Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX [710292-1]

Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX [710292-1]

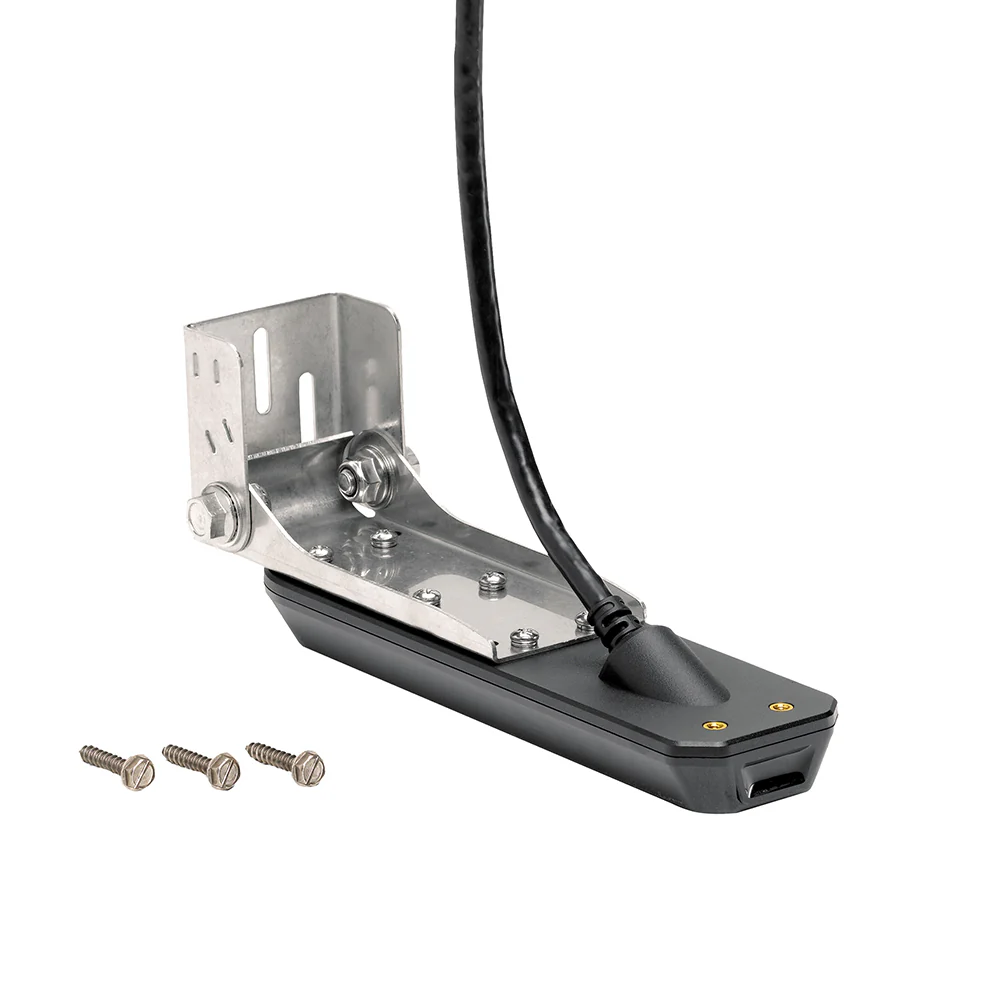

MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

Product Specifications

Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX [710292-1] Product Specifications

Specification	Details
Model	XM 14 HW MSI T
Product Code	710292-1
UPC	0082324053252
Mount Type	Transom
Mounting Style	Transom
Sonar Type	MEGA Imaging+ (Side, Down), Dual Spectrum CHIRP
Imaging Support	MEGA Side Imaging+, MEGA Down Imaging+, Standard Imaging
CHIRP Range	High Wide
Temperature Sensor	Yes
Speed Sensor	No
Cable Length	20 ft

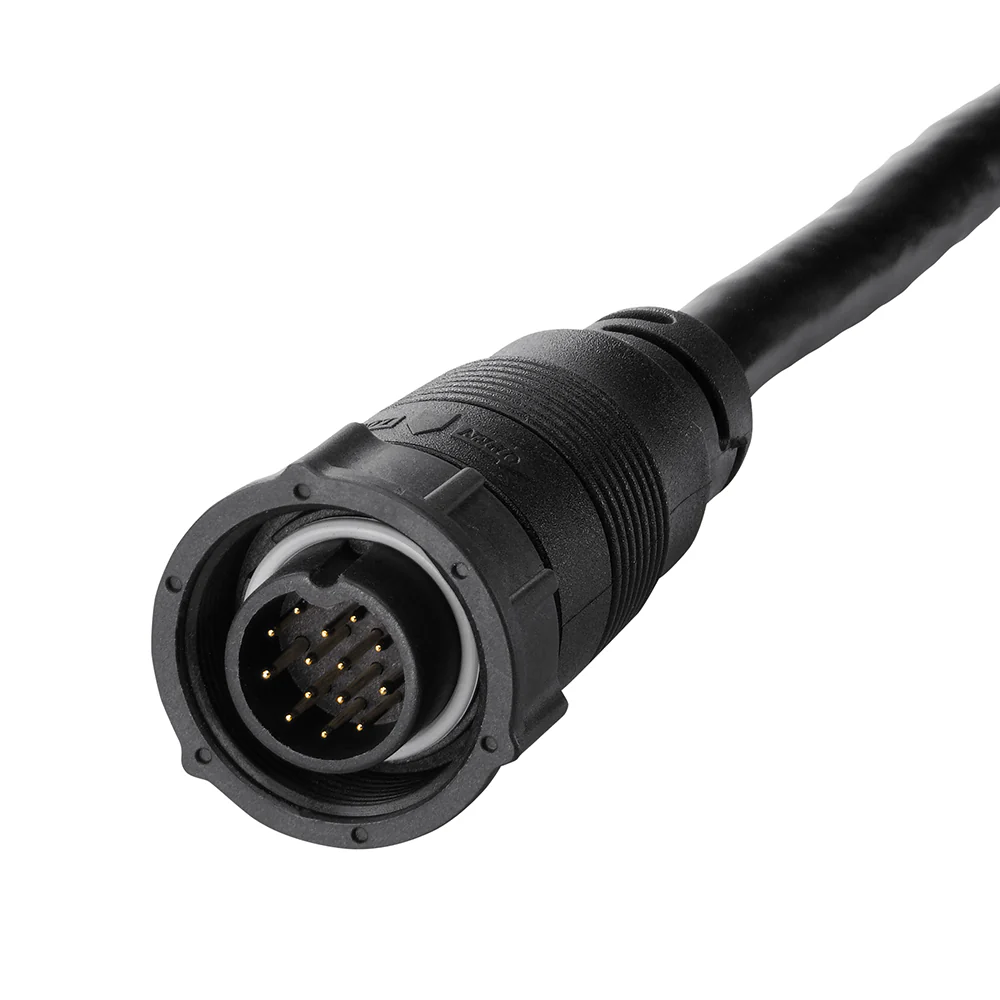

Pins	14
Compatible Models	SOLIX 10 G3, 12 G3, 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Box Dimensions	4" H × 9" W × 15" L
Box Weight	2.9 lbs
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Transom Mount Transducer Installation Instructions

Accessory Resource Guide

Transducer Compatibility Guide

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
