Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer w/Temp f/SOLIX MEGA DI [710290-1]

Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer w/Temp f/SOLIX MEGA DI [710290-1]

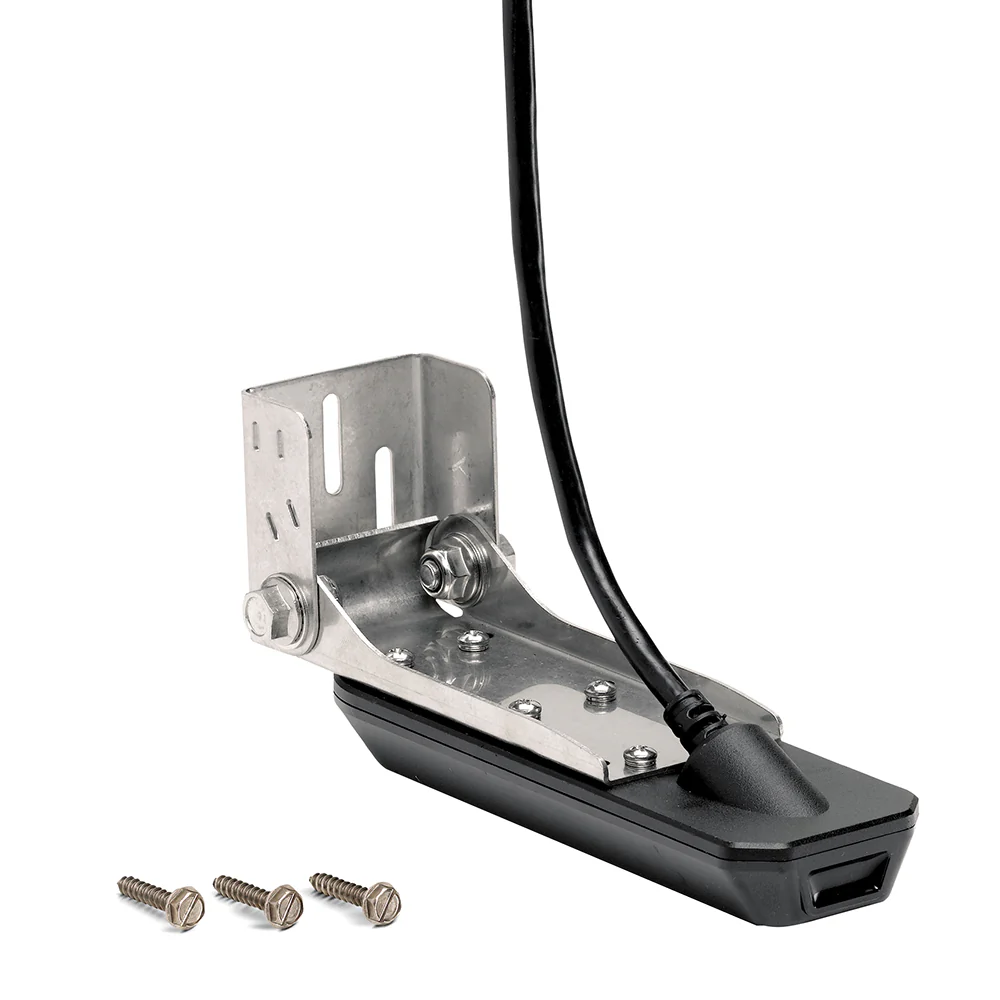

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer w/Temp f/SOLIX MEGA DI [710290-1] Product Specifications

Specification	Details
Model	XM 14 HW MDI T
Product Code	710290-1
UPC	0082324053191
Mount Type	Transom
Mounting Style	Transom
Sonar Type	MEGA Down Imaging+, Dual Spectrum CHIRP
Imaging Support	MEGA Down Imaging+, Standard 2D
CHIRP Range	High Wide
Temperature Sensor	Yes
Speed Sensor	No

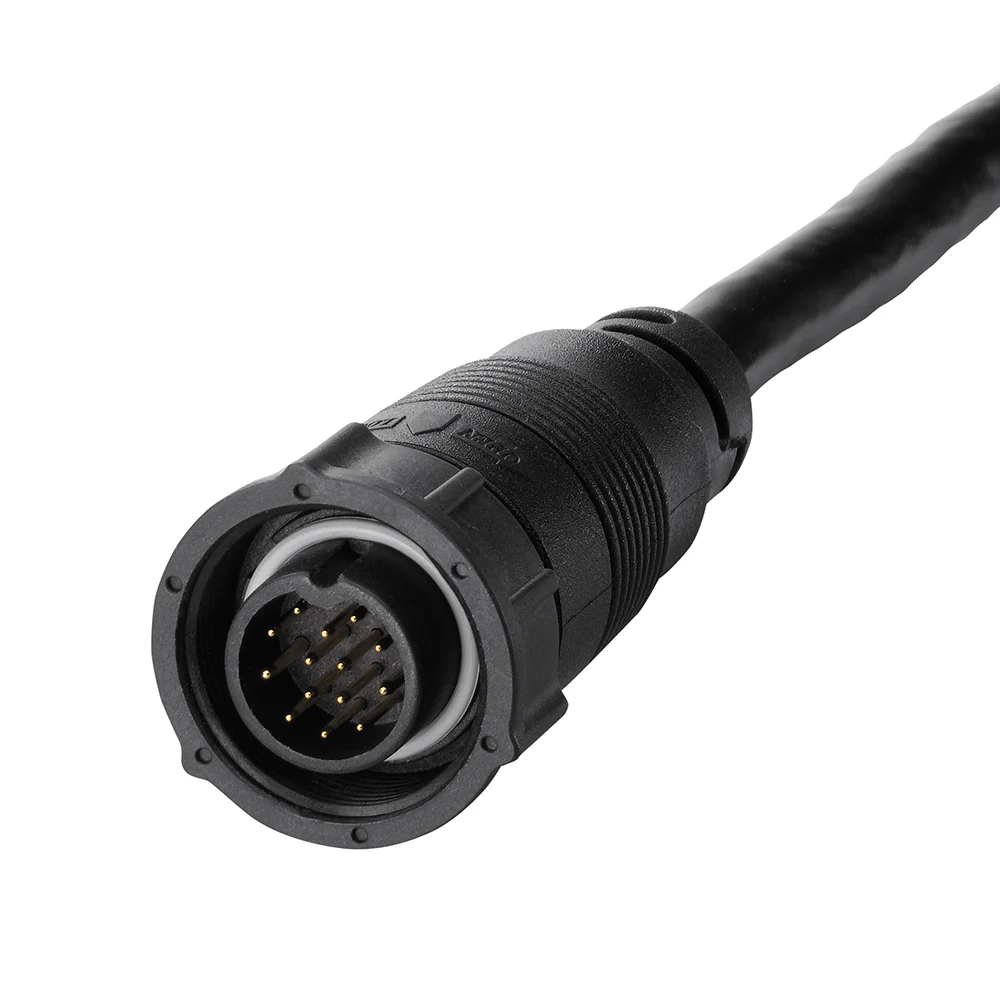

Pins	14-pin connector
Cable Length	20 ft
Compatible Models	SOLIX 10 G3, 12 G3, 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Box Dimensions	7" H × 8" W × 10" L
Box Weight	2.45 lbs
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Transom Mount Transducer Installation Instructions

Accessory Resource Guide

Transducer Compatibility Guide

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
