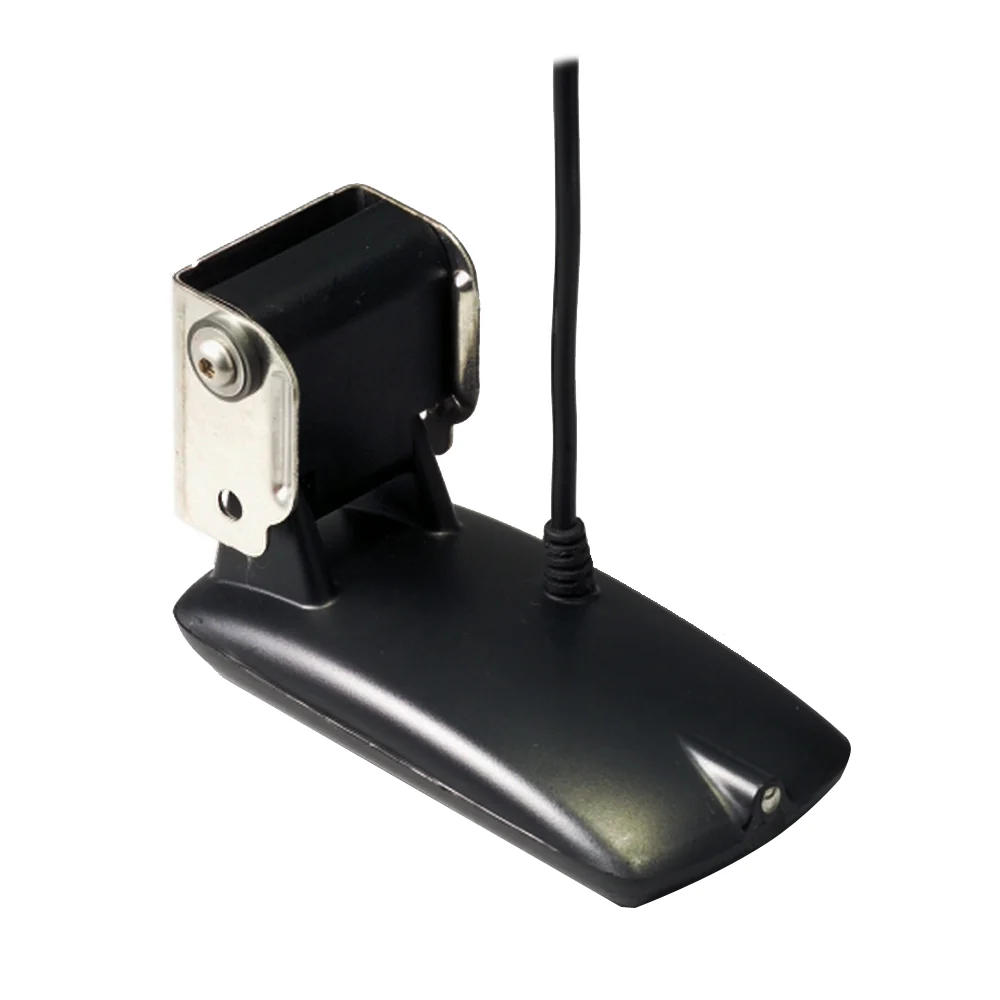

Humminbird XHS-9-HDSI-180T TM Transducer [710201-1]

Humminbird XHS-9-HDSI-180T TM Transducer [710201-1]

Dual/HD Side Imaging Transom, 20/60/180 cable degree, 200/83/455/800 kHz with built-in temperature. 20' cable.

Features:

• Compatible with: all HELIX Side Imaging units except HELIX 7 CHIRP MSI GPS G3/G3N/G4/G4N, HELIX 7 SI GPS G4 to the maximum capability of the transducer. Also compatibility with 1199ci HD SI, 999ci HD SI, 899ci HD SI, 1198c HD SI, 998c HD SI, 998c SI, 898c HD SI, 898c SI to the maximum capability of the transducer

• Cable Length: 20 Feet

• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XHS-9-HDSI-180T TM Transducer [710201-1] Product Specifications

Specifications	Details
Model	XHS 9 HDSI 180 T - Transom Transducer
Product Code	710201-1
UPC	0082324507496
Mount Type	Transom
Mounting Style	Transom
Sonar Type	Side Imaging, 2D
Chirp	No
Cable Length	20 ft
Temperature	Yes
Speed Included	No
Compatible Models	HELIX 10, HELIX 9, HELIX 7, HELIX 12
Discontinued Series	800 Series, 1100 Series, 900 Series
Box Dimensions	6"H x 8"W x 8"L
Weight	1.95 lbs
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

Side Imaging Transducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
