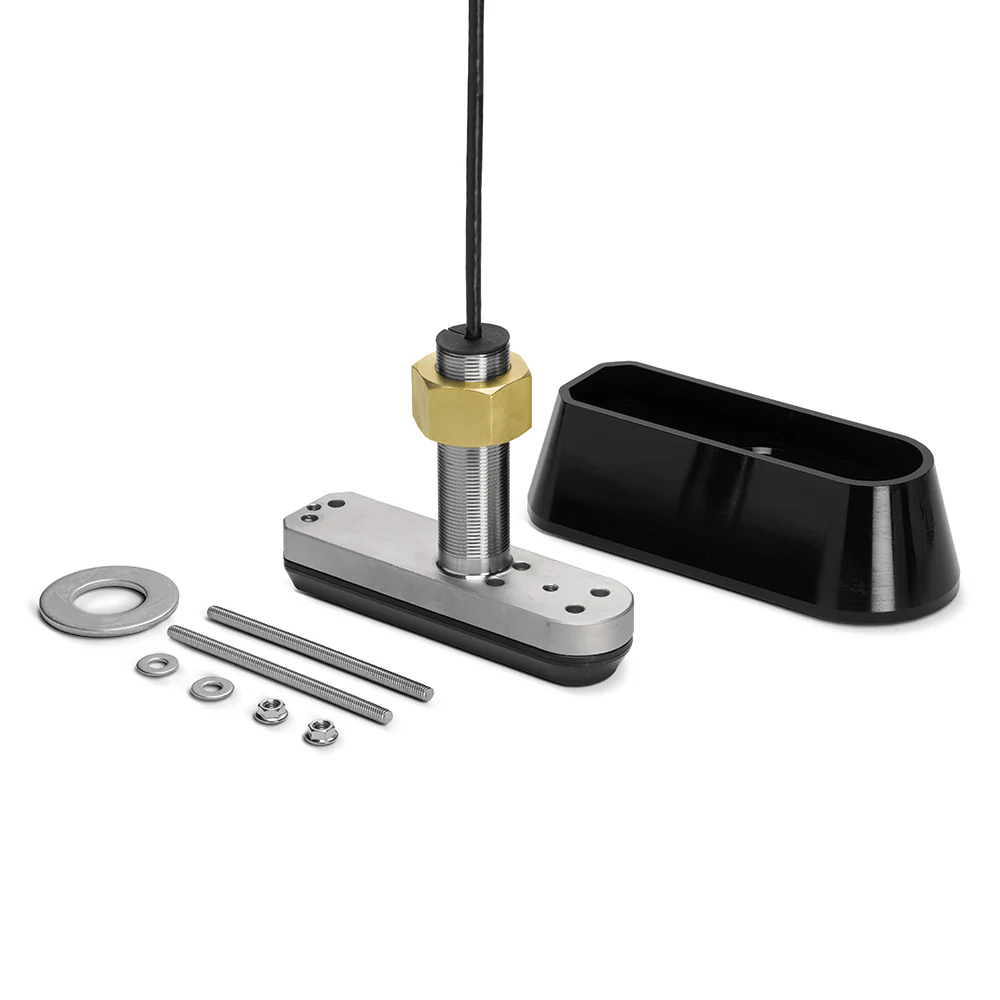

Humminbird SSTH 14 HW MSI+ Stainless Steel MEGA Thru-Hull 14-Pin [710302-1]

Humminbird SSTH 14 HW MSI+ Stainless Steel MEGA Thru-Hull 14-Pin [710302-1]

Humminbird SSTH 14 HW MSI+ Stainless Steel MEGA Thru-Hull 14-Pin [710302-1]

Stainless steel thru-hull, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar. includes built-in temperature sensor. Designed to bring our leading sonar technologies to larger vessels

Features:
  • Compatible with: All XPLORE models, All APEX models, All SOLIX G2 and G3 models
  • Connects to HELIX 8-15 MSI+ G3N and G4N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)
  • Cable Length: 20 Feet
  • This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
  • MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • Transducer dimensions: 8.4L x 2.3"W x 1.65"D (below hull); Shaft diameter: 1.5", Shaft length: 5" fairing block included
  • 1-Year Limited Warranty

Product Specifications

Humminbird SSTH 14 HW MSI+ Stainless Steel MEGA Thru-Hull 14-Pin [710302-1] Product Specifications

Specifications:

Model SSTH 14 HW MSI+ T - SOLIX MEGA SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer
Product Code 710302-1
UPC 0082324054815
Mount Type Thru-Hull
Sonar Type MEGA Imaging +, Dual Spectrum
Current Models SOLIX 10 G3, SOLIX 12 G3, APEX 16, APEX 13, SOLIX 15 G3, APEX 19, XPLORE 12, XPLORE 9, XPLORE 10
Warranty One-Year Warranty

Product Manual

Accessory Resource Guide

Stainless Steel Thru-Hull Transducer Installation Template

Stainless Steel Thru-Hull Tranducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

  • All XPLORE models
    • Optional: Additional third year of warranty is available withĀ product registration.*
  • All APEX models
  • All SOLIX models
  • HELIX 8 / 9 / 10 / 12 / 15 models
  • ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
  • ICE Flasher models (ICE-55, ICE-45, and ICE-35)
  • MEGA Live 1 Imaging transducersĀ
  • MEGA Live 2 Imaging transducersĀ
  • MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

  • HELIX 5 / 7 models
  • ICE HELIX 5 / 7 models
  • All accessories
  • All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

  • All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A

$818.99
