Humminbird Piranhamax 4 PT [410170-1]

Humminbird Piranhamax 4 PT [410170-1]

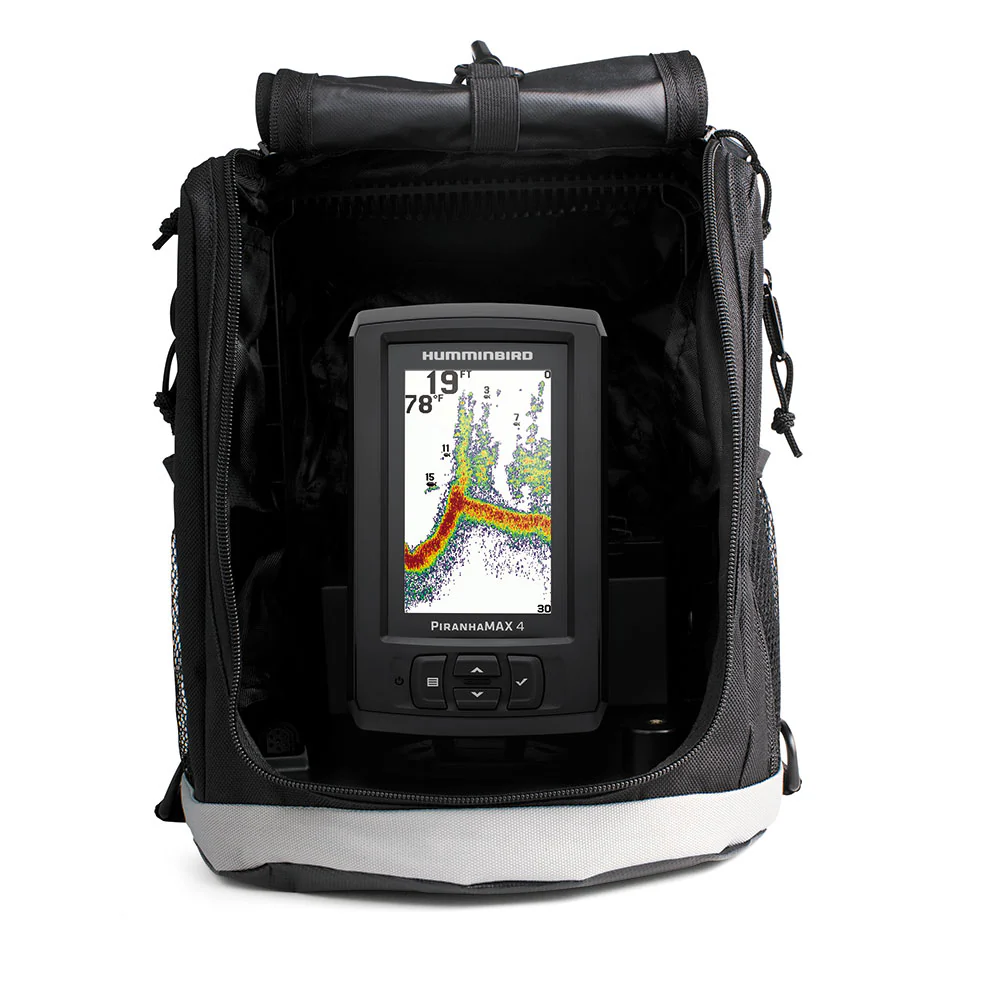

The PiranhaMAX 4 PT features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Dual Frequency sonar. It comes with a portable case, portable transducer, 7 Amp Hour battery and wall charger.

Features:

• Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
• Tilt and Swivel Mount: Quickly adjust your viewing area angle.

• Portable Carrying Case: Take your fishing system on the go. The soft-sided carrying case protects your Humminbird for safe transport.

• Includes: PiranhaMAX 4 fish finder, portable carrying case, portable transducer, 7 Amp Hour battery and wall charger.

• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird Piranhamax 4 PT [410170-1] Product Specifications

Specifications:

Model	PiranhaMAX 4 PT
Product Code	410170-1
Series	PiranhaMAX
UPC	0082324048760
Display Size - Diagonal	4.3 in
Display Pixel Matrix	272H x 480V
Transducer Included	XPT 9 28 T
Features	Portable
Memory Card Slot	None
Sonar-Standard	Dual Beam
Sonar-Coverage	28° & 16° @ -10dB
Sonar-Frequencies Supported	200/455kHz
Depth-Sonar	600 ft (20) 200 kHz, 320 ft (20) 455 kHz
Depth-Down Imaging	320 ft
Interface	Keypad Control
Power Draw	180 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	2400 Watts
Power Output RMS	300 Watts
Screen Snap Shot	Not Supported
Mount-Standard	Gimbal
Mount-Standard Size	3.91 in W x 7.34 in H x 3.62 in D
Mount-Optional	In-Dash Mounting Kit
Mount-Optional Size	3.91 in W x 5.875 in H x 2.5 in D
Transducer Mount Location	Portable
GPS Chartplotting	Not Supported
GPS Receiver	Not Supported
GPS Trackplotting	Not Supported
MEGA Live Compatibility	No
Humminbird Basemap	Not Supported
LakeMaster Compatibility	No
Platinum Compatibility	No
Target Separation	2.5 in
Upgradable Software	No
Display Colors Grayscale	256 Color
Display Type	Color TFT
Speed	Not Supported
Temperature	Built In
Warranty	One-Year Warranty
