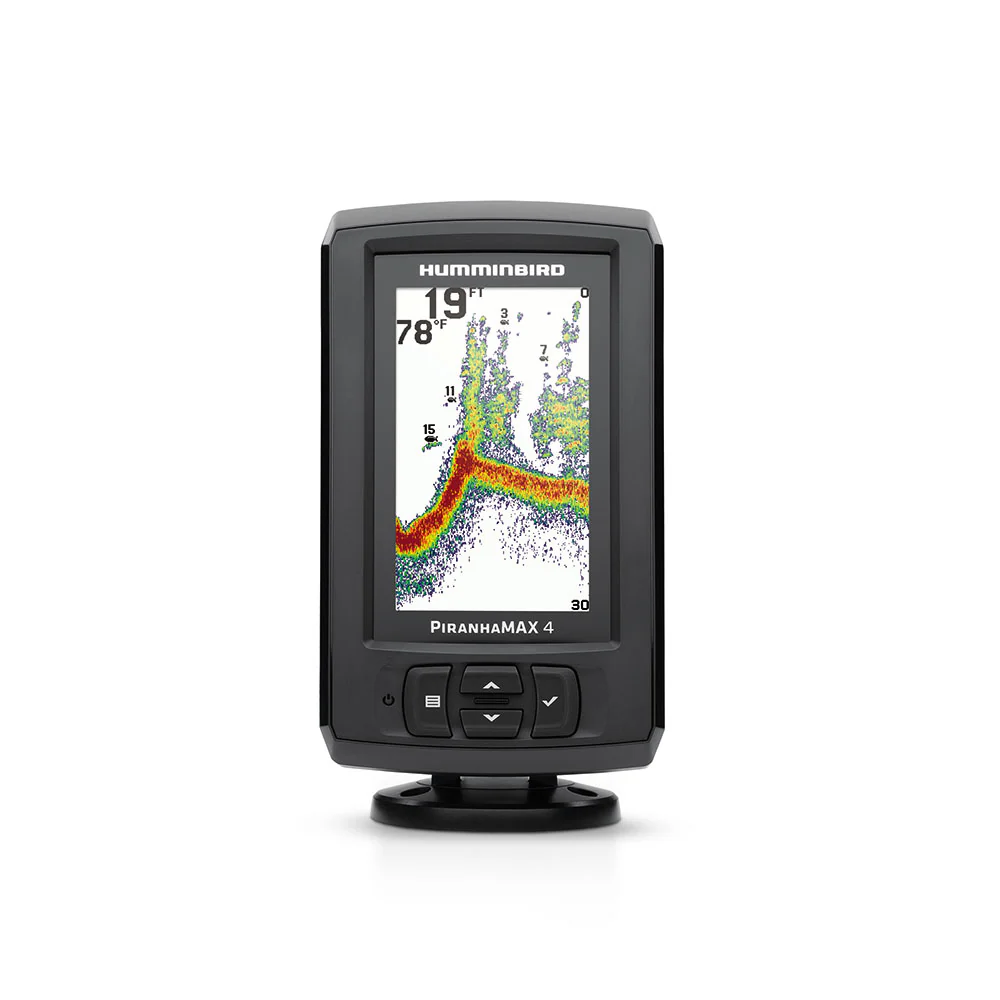

Humminbird Piranhamax 4 [410150-1]

Humminbird Piranhamax 4 [410150-1]

With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.

Features:

• Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
• Tilt and Swivel Mount: Quickly adjust your viewing area angle.
• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird Piranhamax 4 [410150-1] Product Specifications

Specifications:

Model	PiranhaMAX 4
Product Code	410150-1
Series	PiranhaMAX
UPC	0082324048708
Display Size - Diagonal	4.3 in
Display Pixel Matrix	272H x 480V
Transducer Included	XNT 9 28 T
Memory Card Slot	None
Sonar-Standard	Dual Beam
Sonar-Coverage	28° & 16° @ -10dB
Sonar-Frequencies Supported	200/455kHz
Depth-Sonar	600 ft (20) 200 kHz, 320 ft (20) 455 kHz
Depth-Down Imaging	320 ft
Interface	Keypad Control
Power Draw	180 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	2400 Watts
Power Output RMS	300 Watts
Screen Snap Shot	Not Supported
Mount-Standard	Gimbal
Mount-Standard Size	3.91 in W x 7.34 in H x 3.62 in D
Mount-Optional	In-Dash Mounting Kit
Mount-Optional Size	3.91 in W x 5.875 in H x 2.5 in D
Transducer Mount Location	Transom
GPS Chartplotting	Not Supported
GPS Receiver	Not Supported
GPS Trackplotting	Not Supported
MEGA Live Compatibility	No
Humminbird Basemap	Not Supported
LakeMaster Compatibility	No
Platinum Compatibility	No
Target Separation	2.5 in
Upgradable Software	No
Display Colors Grayscale	256 Color
Display Type	Color TFT
Speed	Not Supported
Temperature	Built In
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Accessory Resource Guide

PMAX 4 Installation Instructions

Fishin' Buddy MAX DI Installation Instructions

Fishin' Buddy MAX - English Product Manual

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
