Humminbird MEGA Live TargetLock Adapter Kit - Ultrex 45"- 52" - MEGA Live Transducer Not Included [740210-1]

Humminbird MEGA Live TargetLock Adapter Kit - Ultrex 45"- 52" - MEGA Live Transducer Not Included [740210-1]

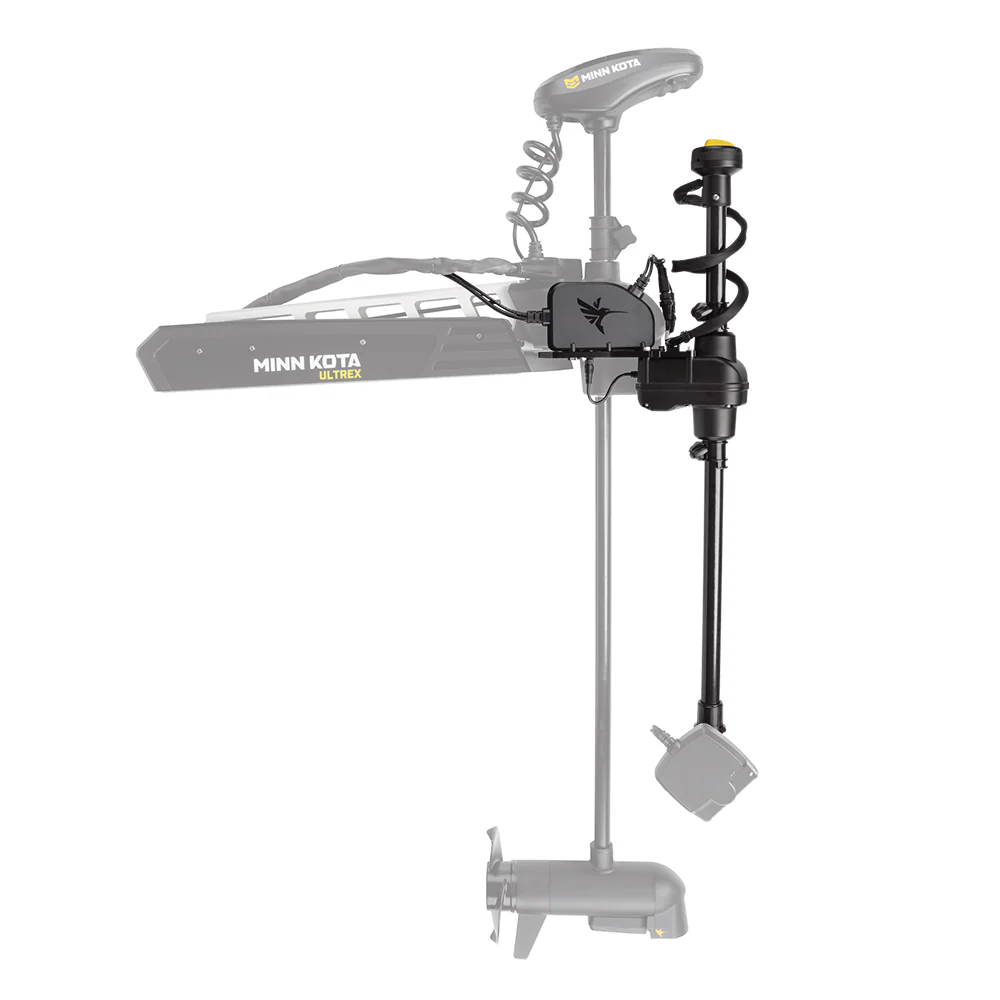

This adapter kit is for users who have a MEGA Live Imaging Transducer and Minn Kota® Ultrex™ trolling motor and are looking to add the advantages of MEGA Live TargetLock. MEGA Live TargetLock™ is independently mounted from the trolling motor shaft and provides full use of the trolling motor, including Spot-Lock®, without sacrificing the sonar view. The TargetLock feature allows anglers to lock the MEGA Live beam in the direction of the structure, so even when the boat moves, the MEGA Live view stays fixed in that direction. MEGA Live Imaging™ provides the most impressive live sonar on the water, allowing the angler to watch fish and structure in real-time, in their choice of views; Down, Forward, and Landscape Modes. Engineered specifically for Minn Kota® Ultrex™ Trolling Motors to unlock exclusive features of the One-Boat Network® like TargetLock, MEGA Live Sweep (requires a source for Heading), and Minn Kota Steer (requires motor with i-Pilot Link).

Features:

• MEGA Live TargetLock is mounted independently of the trolling motor steering, which allows anglers full use of their trolling motor, including Spot-Lock while having dedicated control of MEGA Live Imaging.
• The TargetLock feature allows anglers to set a directional lock of the live sonar and it will keep itself oriented, so anglers never lose sight of the structure, even while the boat moves in the water.
• MEGA Live TargetLock can be controlled, from the included MEGA LIVE foot pedal, the trolling motor foot pedal using the Minn Kota Steer feature (requires motor with i-Pilot Link), the Humminbird fish finder, or from an optional accessory hand remote.
• The MEGA Live Sweep provides a constant 120-degree sweep out in front of the boat to help identify structure and fish while maintaining control of the trolling motor. (Requires AS GPS HS or Minn Kota Heading Sensor with Ultrex trolling Motor with the i-Pilot link)
• MEGA Live Imaging allows fish and structure to be seen in real-time, with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.
• Choose from multiple viewing modes; Forward Mode for partial coverage below the boat and out away from the boat, Down Mode for a full view below, and Landscape Mode for a wide, top-down view looking out and around the boat.
• Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, allowing for the connection of optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.
• Compatible Humminbird control heads: All APEX™ models, All SOLIX® models, and HELIX® 8-12 G3N & HELIX 7-15 G4N models (Must be MEGA Side Imaging or MEGA Down Imaging model).
• MEGA Live TargetLock is exclusively compatible with Minn Kota® Ultrex™ 45”& 52” trolling motors.
• Includes: Includes MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, and 10' Power Cable.
• 2-Year Limited Warranty

*MEGA Live Imaging Transducer and Trolling motor not included.

What's Included?

• MEGA Live Steering Assembly
• Wireless Foot Pedal
• Ultrex Mounting Kit and Hardware
• 20' Ethernet Cable
• 10' Power Cable

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird MEGA Live TargetLock Adapter Kit - Ultrex 45"- 52" - MEGA Live Transducer Not Included [740210-1] Product Specifications

Specification	Details
Product Type	MEGA Live TargetLock Adapter Kit
Part Number	740210-1
UPC	082324057007
Compatibility	Minn Kota Ultrex trolling motors (45"–52" shaft)
Transducer Support	MEGA Live (transducer sold separately)
Includes	Mounting hardware, brackets, installation instructions
Installation	Designed for straightforward integration
Use Case	Enables MEGA Live TargetLock setup on compatible Ultrex models

Product Manual

Quick Guide (pdf)

MEGA Live - English Product Manual

MEGA Live TargetLock - English Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
