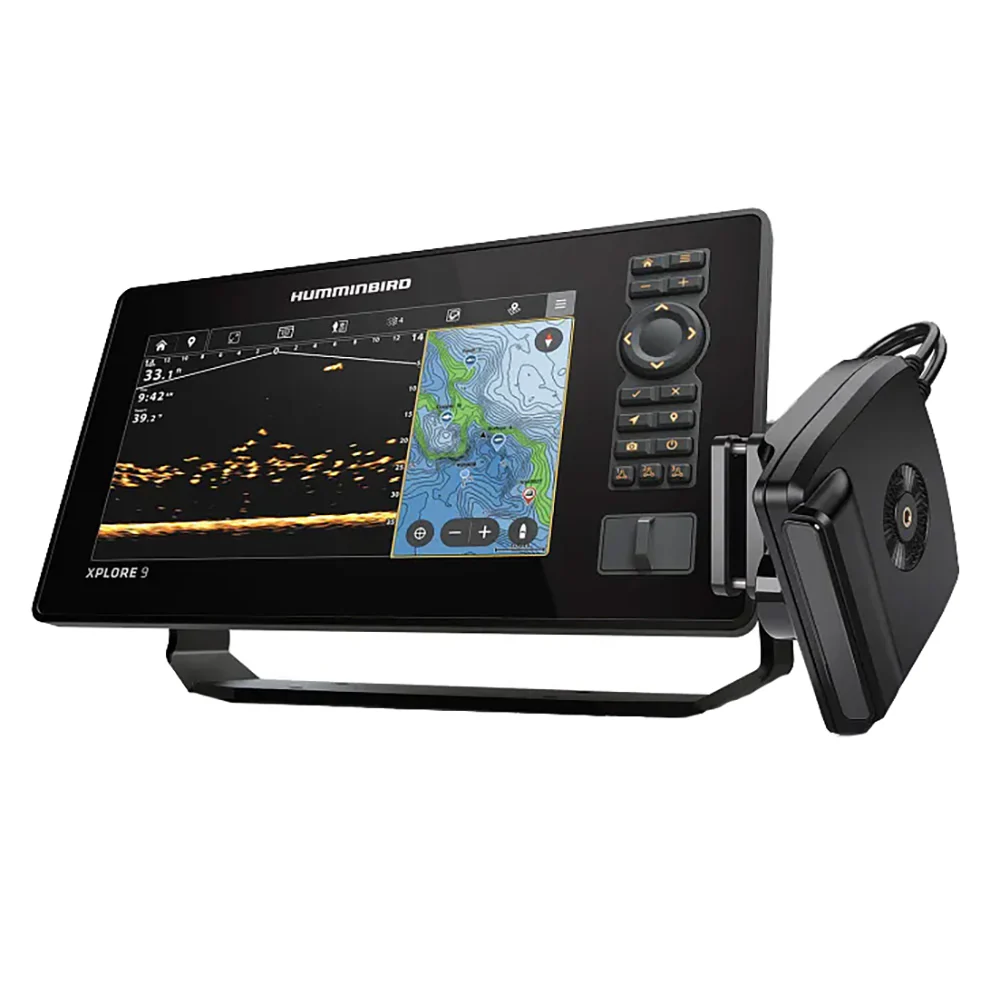

Humminbird Ice Xplore 9" Mega Live 2 Bundle [412340-1]

Humminbird Ice Xplore 9" Mega Live 2 Bundle [412340-1]

Description

Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.

• Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
• Designed for Ice: Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions.
• Ice Mode: Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
• Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
• Lakemaster Mapping Included: Ice Xplore fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
• Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
• Warranty: Ice XPLORE carries a 2-year limited warranty while MEGA Live 2 is covered by a 1-Year Warranty.
• Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse

Product Specifications

Humminbird Ice Xplore 9" Mega Live 2 Bundle [412340-1] Product Specifications

Specifications:

• Transducer Included: MEGA Live Imaging
• Compatible With: Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
• Memory Card Slot: Dual Micro SD
• Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• Live Sonar-Coverage: 20 degrees x 120 degrees
• Interface: Touch Screen, Keypad Control
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Optional
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No

Specifications:

• Cartography Brand: Humminbird/Navionics
• Included Transducer: XI-14-HW
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 11"H x 11"W x 16"L WT: 13 lbs
• UPC: 082324061424

Product Manual

Quick Guide (pdf)

Owner's Manual (pdf)

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
