Humminbird HELIX 7 CHIRP MEGA DI GPS G4 [411610-1]
Humminbird HELIX 7 CHIRP MEGA DI GPS G4 [411610-1]

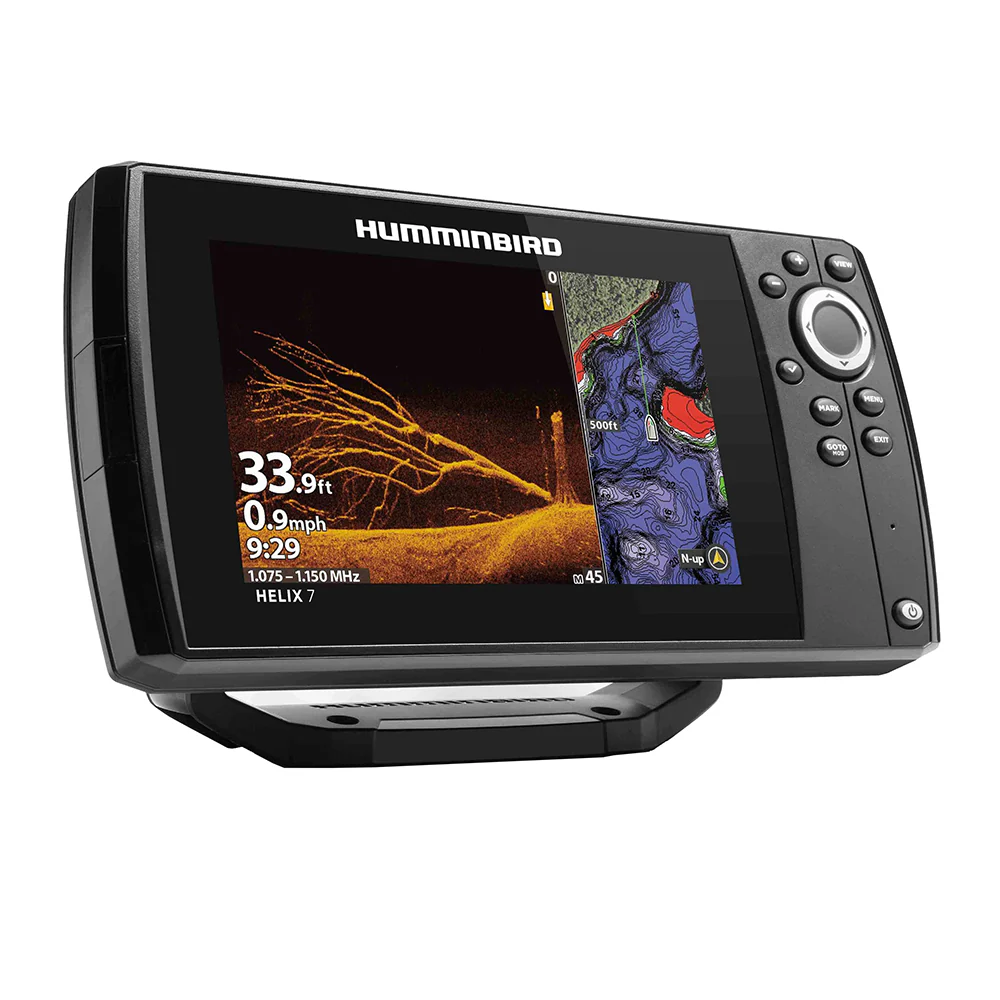

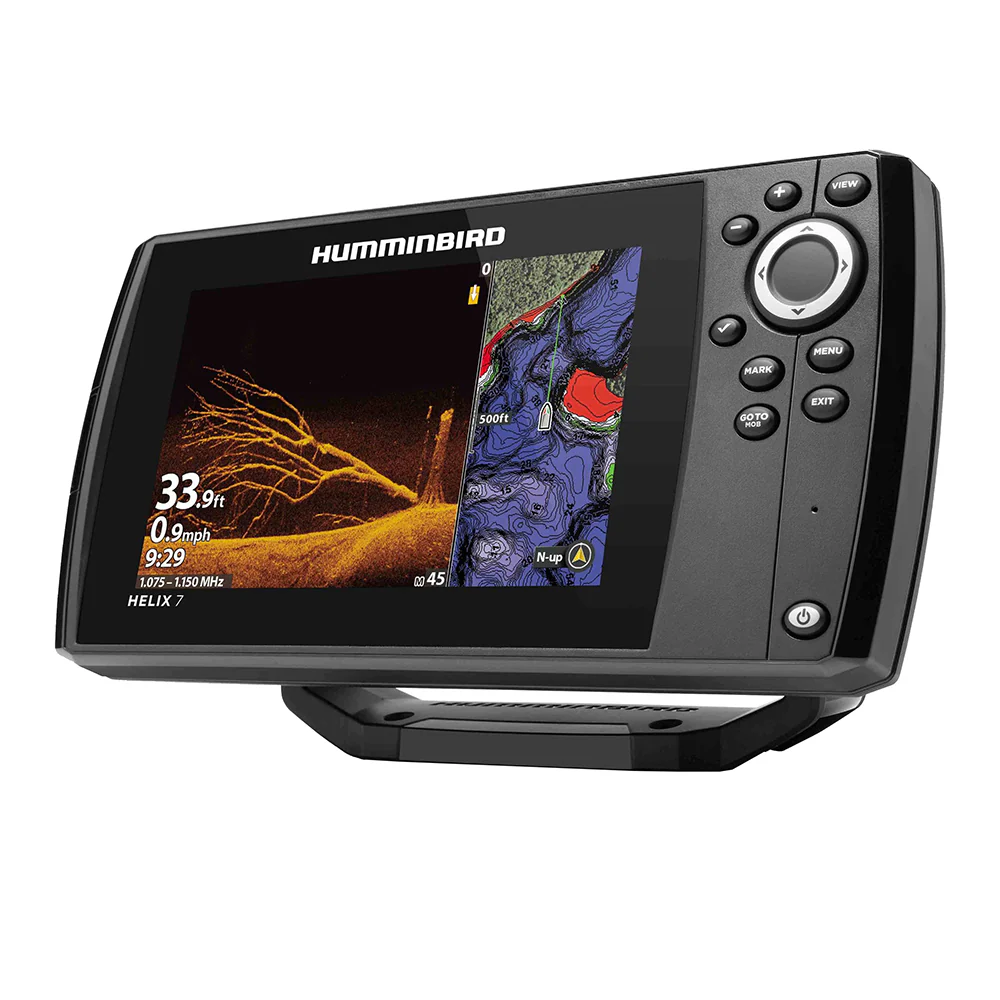

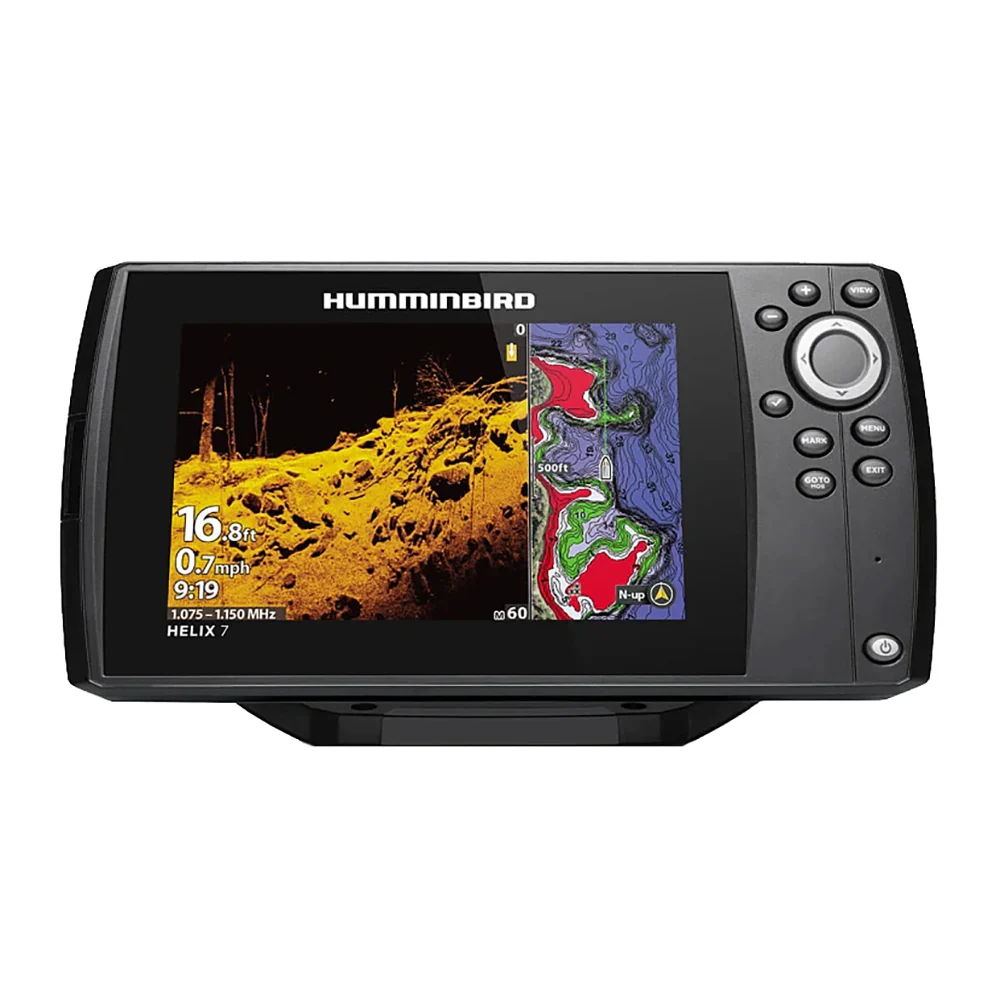

The HELIX 7 CHIRP MEGA DI GPS G4 fishfinder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.Â
Features:
- Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.
- Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

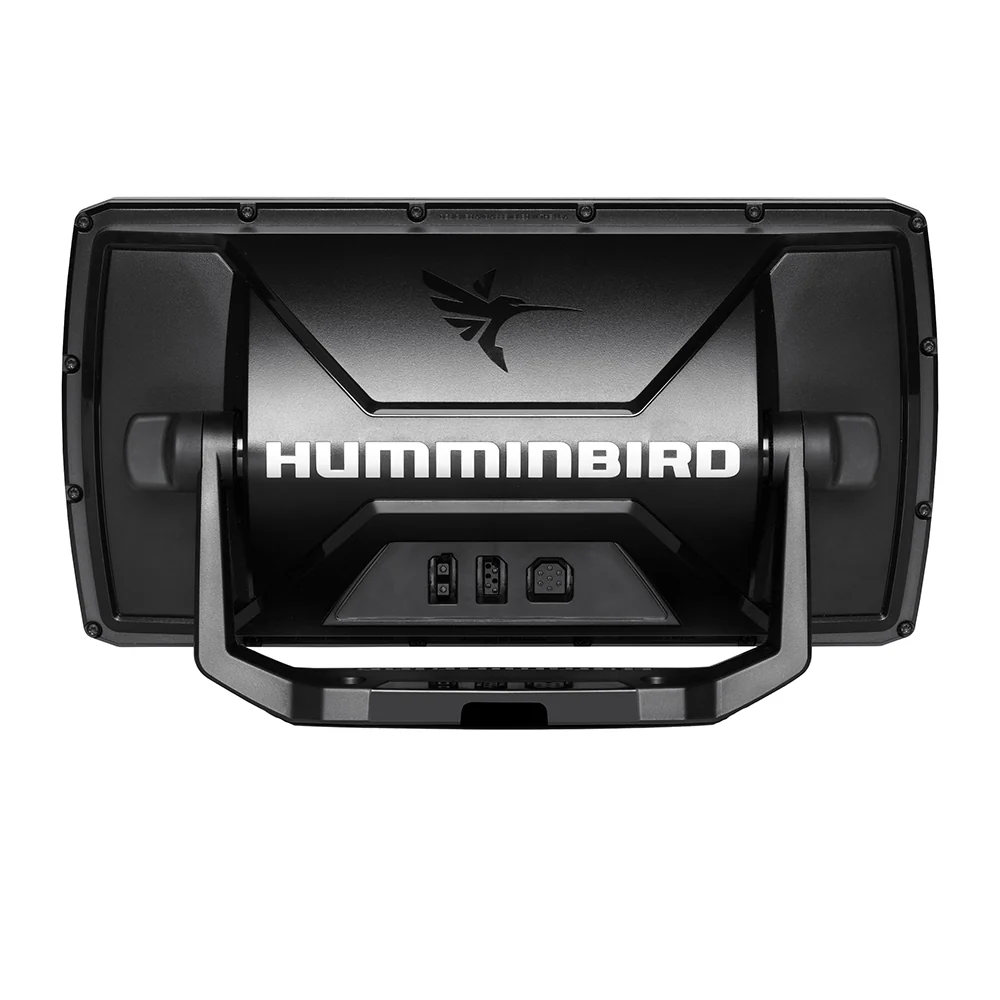

- Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
- 1-Year Limited Warranty
Product Specifications
Humminbird HELIX 7 CHIRP MEGA DI GPS G4 [411610-1] Product Specifications
Specifications:
- Display Size - Diagonal: 7"
- Display Pixel Matrix: 1024H x 600V
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
- Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
- Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
- CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
Specifications:
- Cartography Brand: Humminbird/Navionics
- Included Transducer: XNT-9-HW-MDI-75-T
- Screen Size: 7"
- Touchscreen: No
- Transducer Included: Yes
- Box Dimensions: 5"H x 14"W x 17"L WT: 5.3 lbs
- UPC: 082324056147
Product Manual
Quick Guide (pdf)
Owner's Manual (pdf)
HELIX Series Installation Instructions
Accessory Resource Guide
Transom Transducer Installation Instructions
HELIX Series - English Product Manual
HELIX 5 & 7 Installation Instructions
Product Warranty
Humminbird Warranty
The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.
Humminbird 2-Year Limited Warranty
This warranty covers the following products:
- All XPLORE models
- Optional: Additional third year of warranty is available with product registration.*
- All APEX models
- All SOLIX models
- HELIX 8 / 9 / 10 / 12 / 15 models
- ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
- ICE Flasher models (ICE-55, ICE-45, and ICE-35)
- MEGA Live 1 Imaging transducersÂ
- MEGA Live 2 Imaging transducersÂ
- MEGA 360 Imaging transducers
Download Humminbird 2-Year Limited Warranty Terms (PDF)
Humminbird 1-Year Limited Warranty
This warranty covers the following products:
- HELIX 5 / 7 models
- ICE HELIX 5 / 7 models
- All accessories
- All cartography products
Download Humminbird 1-Year Limited Warranty Terms (PDF)
Humminbird Cartography 1-Year Limited Warranty
This warranty covers the following products:
- All cartography products including LakeMaster and CoastMaster charts
Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
Product FAQs
N/A
