Humminbird HB2124 CHIRP Radar [750013-1]

Humminbird HB2124 CHIRP Radar [750013-1]

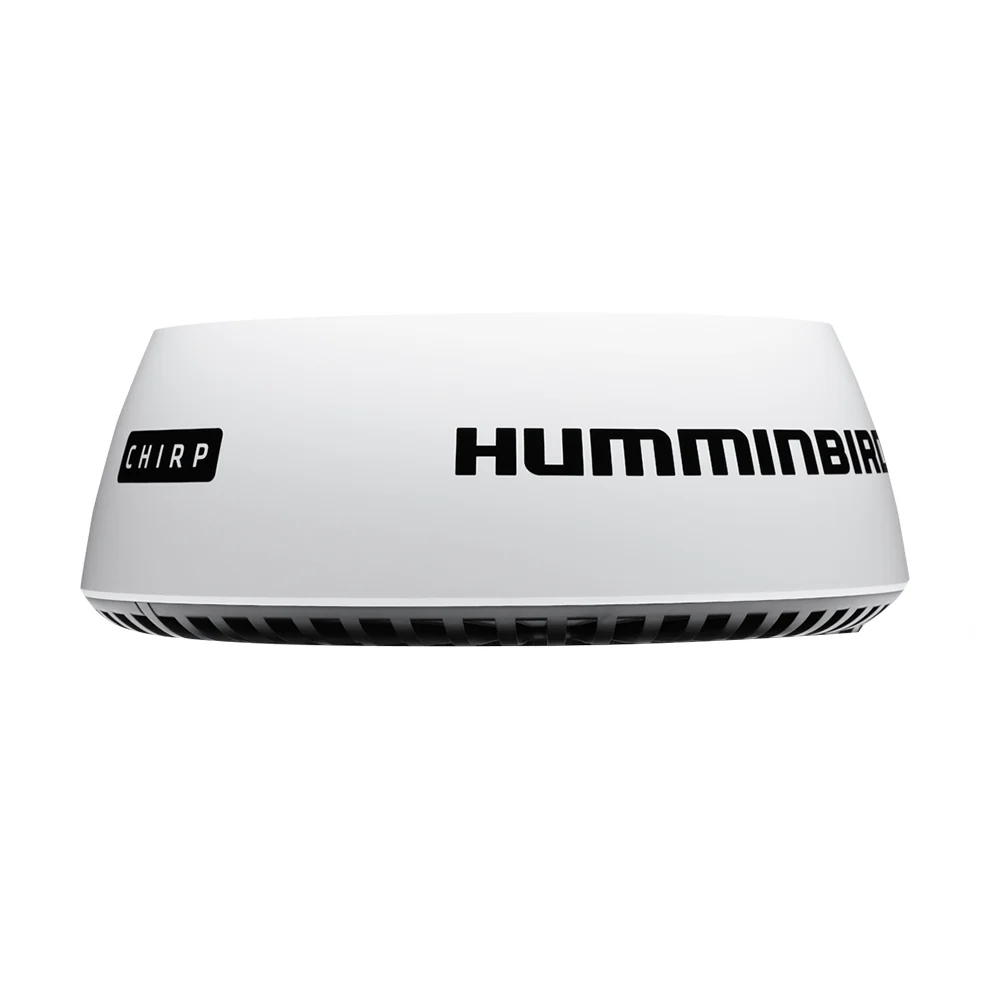

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9° Horizontal and 20° Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7µs

• CHIRP Lengths - 400 ns to 20µs

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

Product Specifications

Humminbird HB2124 CHIRP Radar [750013-1] Product Specifications

Specifications:

Model	HB 2124 - Humminbird CHIRP Radar
Product Code	750013-1
UPC	0082324050169
Current Models	HELIX 10, SOLIX 10 G3, SOLIX 12 G3, HELIX 9, HELIX 8, HELIX 15, HELIX 7, HELIX 12, SOLIX 15 G3, XPLORE 12, XPLORE 9, XPLORE 10
Discontinued Series	ION, ONIX
Product Category	Radar
Warranty	One-Year Warranty
