Humminbird AS-ETH-5PGL 5 Port Ethernet Switch [411850-1]

Humminbird AS-ETH-5PGL 5 Port Ethernet Switch [411850-1]

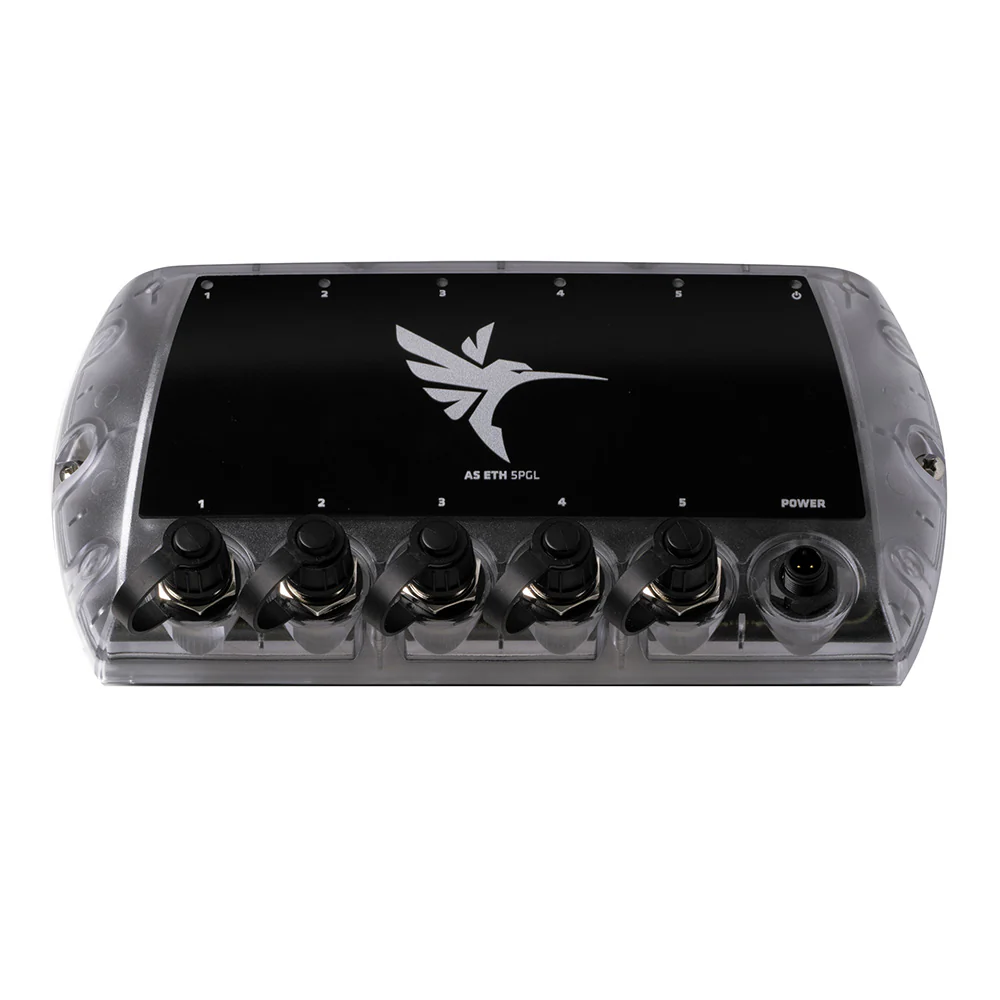

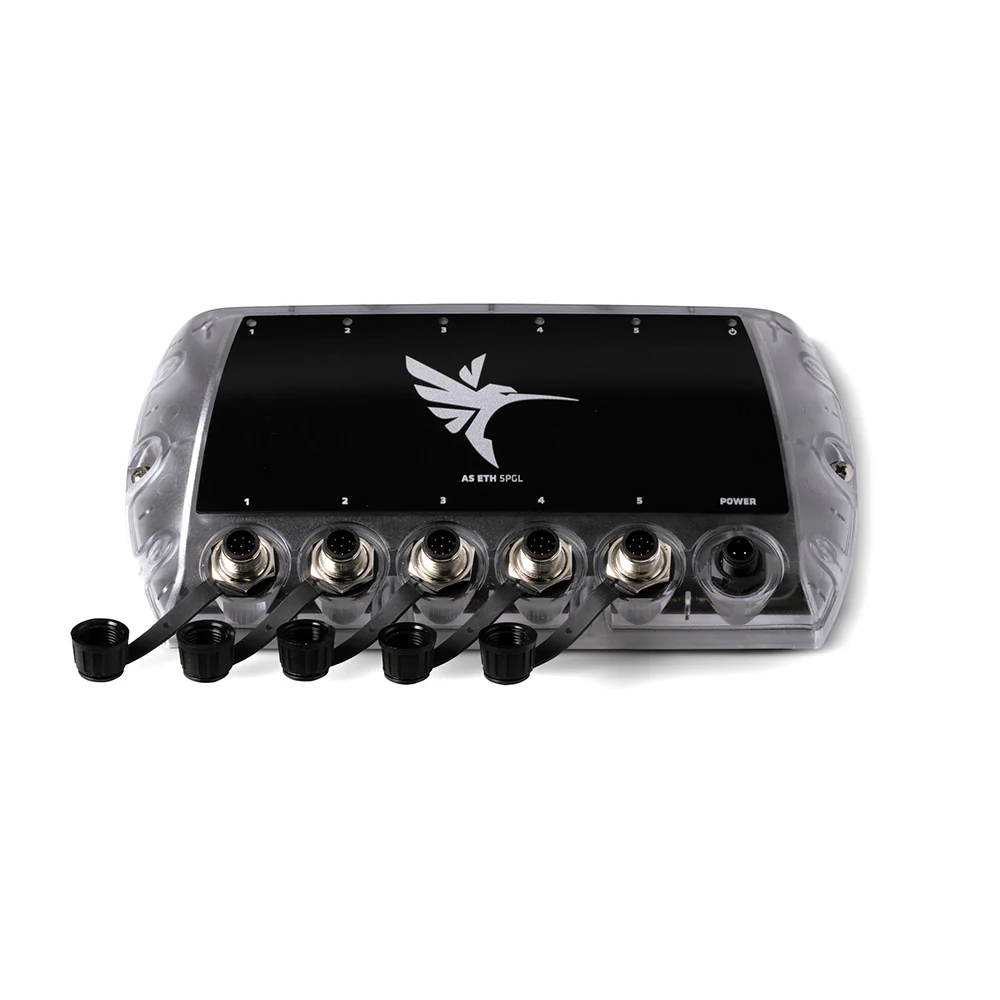

This Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected.

Features:

• Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network.
• Expand your network's capacity by up to 20 devices by linking additional switches together (sold separately).
• Compatible with all APEX, SOLIX, HELIX G4N, and HELIX G3N fish finder models.
• Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
• Amber Connection Light: HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
• Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
• Amber Power Light: Connected to power
• Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch.

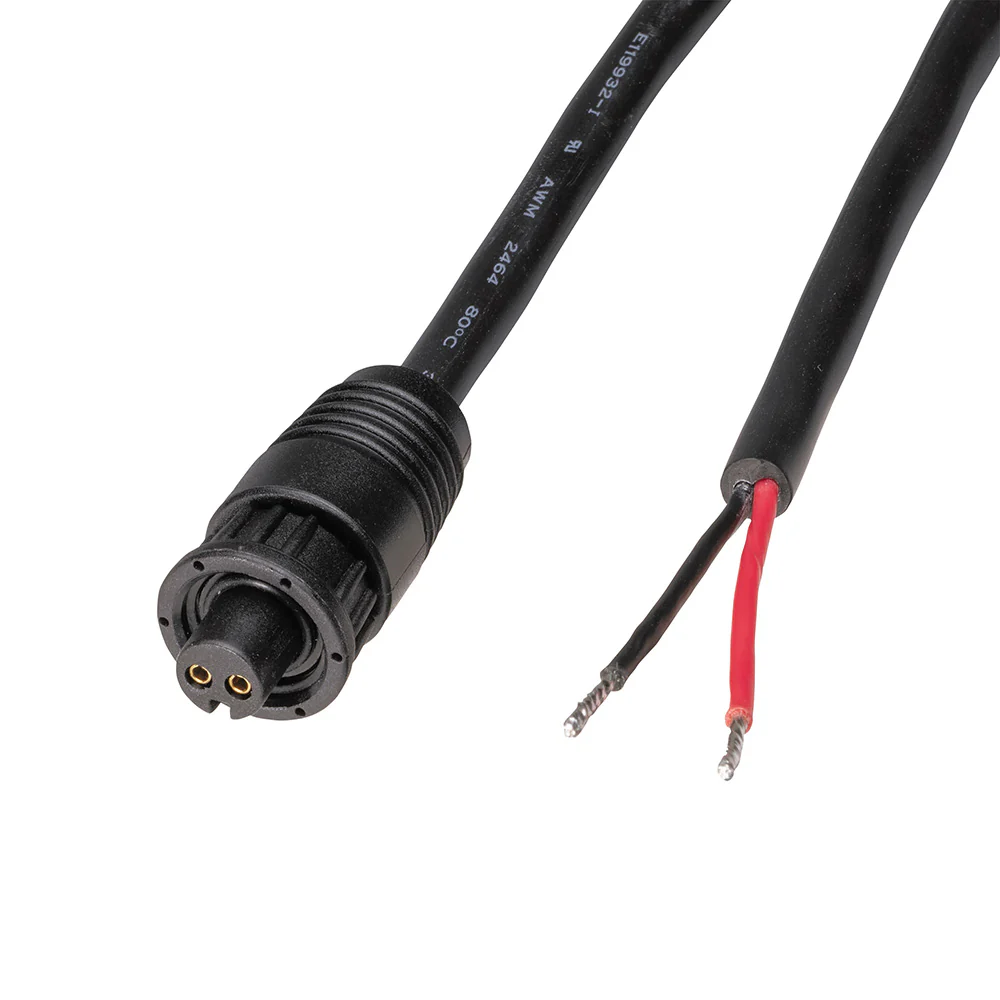

• Includes: Ethernet switch, power cable, mounting hardware
• 1-Year Limited Warranty

Product Specifications

Humminbird AS-ETH-5PGL 5 Port Ethernet Switch [411850-1] Product Specifications

Specification	Details
Model	AS-ETH-5PGL
Part Number	411850-1
UPC	082324057410
Ports	5 Ethernet ports (RJ45)
Power Requirement	12V DC (power cable included)
Mounting Style	Surface mount
Use Case	Networking multiple Humminbird and Minn Kota Ethernet devices
Cable Included	Power cable (Ethernet cables sold separately)
Compatibility	APEX, SOLIX, HELIX G4N, MEGA Live, Minn Kota trolling motors

Product Manual

Ethernet Switch Installation Instructions

Accessory Resource Guide

Ethernet Cable NoticeEthernet Networking - English Guide

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
