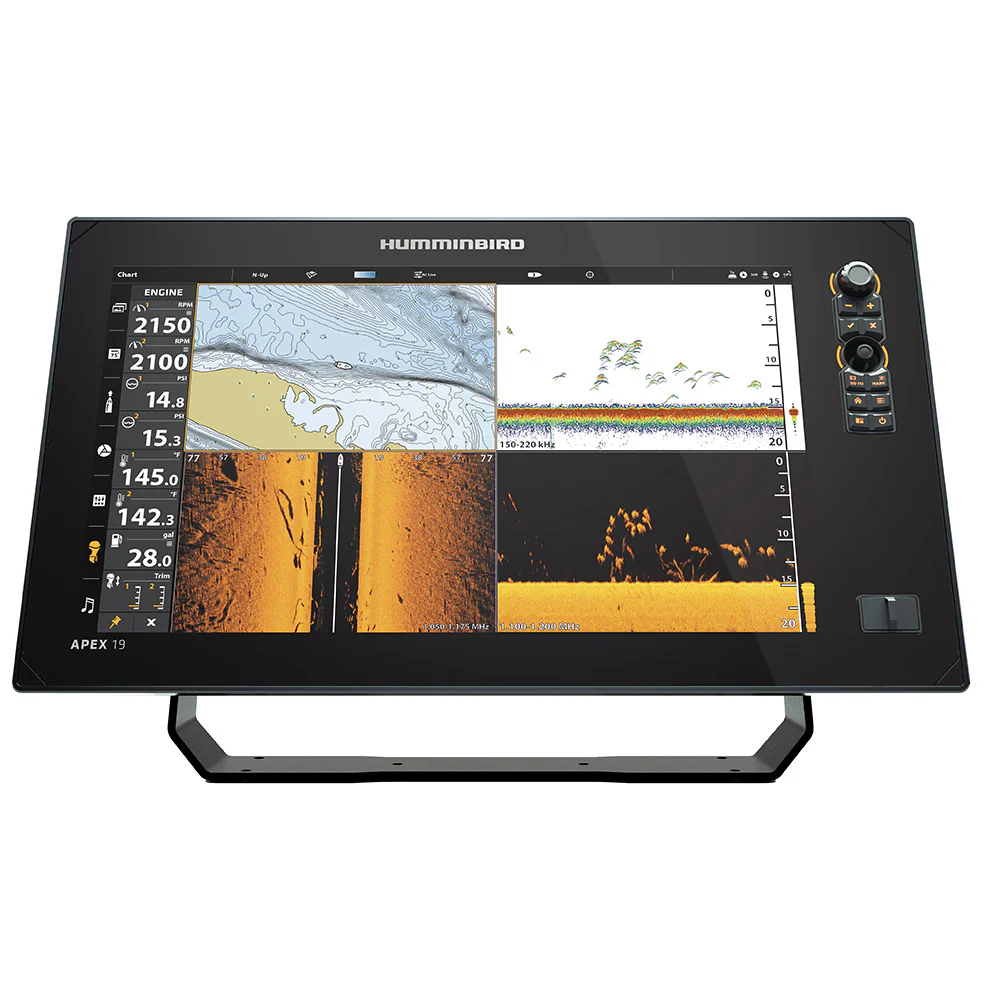

Humminbird APEX 19 VX MSI+ Chartplotter/Fishfinder w/ Transom Mount Transducer [411240-1VX]

Humminbird APEX 19 VX MSI+ Chartplotter/Fishfinder w/ Transom Mount Transducer [411240-1VX]

Description

The APEX 19 VX MSI+ CHARTPLOTTER provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with an 18.5" Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota, and reach new depths with wireless Cannon® downrigger control.  The APEX Series is the kind of MFD that will take you fishing to a new level.

Features:

• Full HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you.
• Customized Experience:  Utilize an intuitive user interface and sidebar menu that provide customizable settings and view combinations to make your fishing experience all your own.
• Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.
• Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
• Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat.  Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

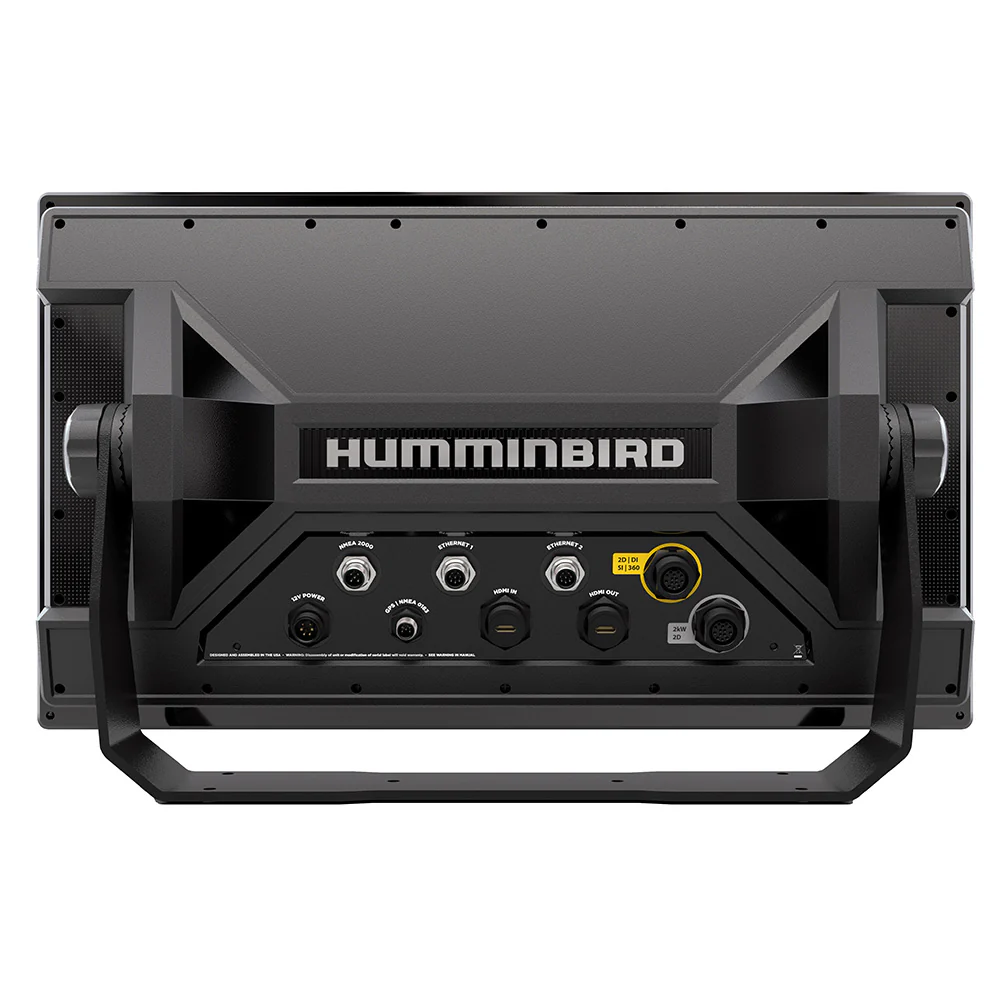

• Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smartphone notifications on your Humminbird.
• NMEA 2000 networking built in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Additionally, APEX is compatible with CZone® Contact 6, Contact 6 Plus, and digital switching devices.
• Includes control head, transom mount transducer, mounting hardware, power cable, and gimbal mounting bracket.
• Product comes with a 2-Year Limited Warranty

Product Specifications

Humminbird APEX 19 VX MSI+ Chartplotter/Fishfinder w/ Transom Mount Transducer [411240-1VX] Product Specifications

Specification	Value
Model	APEX 13 MEGA SI+ CHARTPLOTTER
Product Code	411470-1VX
Series	APEX
UPC	0082324061639
Display Size - Diagonal	13.3 in
Length	8.96 in (22.76 cm)
Height	15.6 in (39.62 cm)
Width	5.67 in (14.4 cm)
Weight	8 lb 4.8 oz (3.76482 kg)
Display Pixel Matrix	1920H x 1080V
Transducer Included	XM 14 HW MSI T
Compatible With	Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2
Features	Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built-In Mapping, MEGA Imaging+, Wi-Fi
Memory Card Slot	Dual Micro SD
Sonar - Standard	Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
Sonar - Coverage	20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Sonar - Optional	50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
CHIRP - Frequencies Supported	Narrow Mode (180–240 kHz), Optional Deepwater (28–250 kHz), Wide Mode (140–200 kHz), Full Mode (150–220 kHz)
Sonar - Frequencies Supported	50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
Depth - Sonar	3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported	MEGA DI+ (1100–1200 kHz), 800 kHz SI+ (780–840 kHz), 455 kHz SI+ (405–505 kHz), 800 kHz DI+ (800–860 kHz), MEGA SI+ (1050–1175 kHz), 455 kHz DI+ (420–520 kHz)
Depth - Down Imaging	250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)
Range - Side Imaging (Side-To-Side)	800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz)
Interface	Touch Screen
Power Draw	3.1 Amps
Power Input	10.8–20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount - Standard	Gimbal
Mount - Standard Size	15.6 in W × 9.88 in H × 4.88 in D
Mount - Optional	In-Dash Mounting Kit
Mount - Optional Size	15.6 in W × 8.98 in H × 0.51 in D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
GPS Trackplotting	Included
Waypoints, Routes, Tracks/Points	10,000, 50, 50 / 20,000
360 Imaging Compatibility	Yes
MEGA Live Compatibility	Yes
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
CoastMaster Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum+ Compatibility	Yes
Platinum Compatibility	Yes
Minn Kota Advanced GPS Navigation Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	Yes
Minn Kota Talon Shallow Water Anchor Compatibility	Yes
Radar Compatibility	Yes
5-Port Ethernet Switch Compatibility	Yes
AIS Compatibility	Optional
Autopilot Compatibility	Yes
Heading Sensor GPS Compatibility	Yes
Heading Sensor GPS (NMEA 2000) Compatibility	Yes
NMEA 2000	Included
Target Separation	2.5 in
Upgradable Software	Yes
View Preset Keys	Yes
X-Press Menu System	No
Custom Digital Readout	Yes
Custom View Selections	Yes
Display Colors Grayscale	16-Bit
Display Type	Color TFT
Speed	Included
Temperature	Built-In
Temperature Alarm	Yes
Temperature Graph	Yes
HDMI Compatible	Yes
Warranty	Two-Year Warranty

Product Manual

XPLORE/APEX/SOLIX G3 Series - English Product Manual

APEX/SOLIX - English Quick Reference Guide

HTML5 Apps for APEX/SOLIX - English Product Manual

Airmar Transducer Selection Guide

Transom Mount Transducer Installation Instructions

Accessory Resource Guide

APEX Series In-Dash Mounting Guide

APEX 13 In-Dash Mounting Diagram

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
