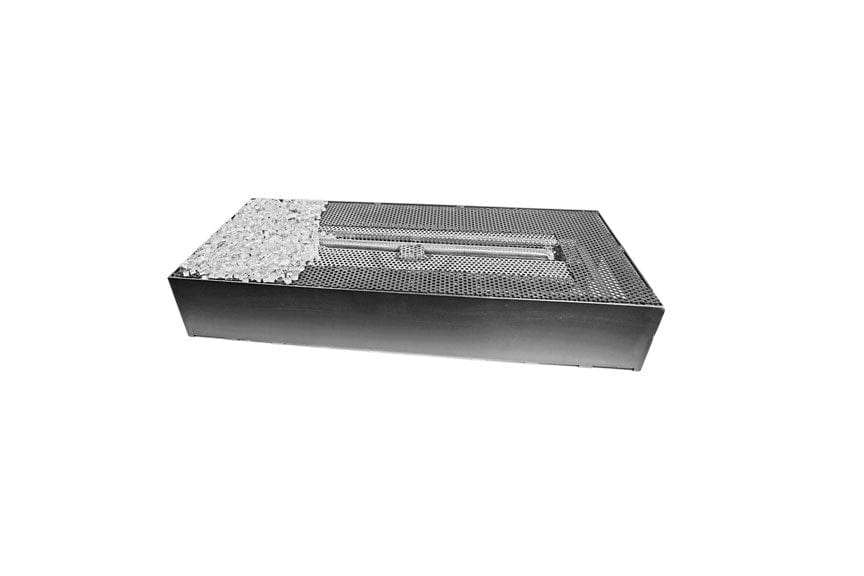

Grand Canyon Bedrock 48" Linear Drop-In Burner & Case

Grand Canyon Bedrock 48" Linear Drop-In Burner & Case

Description

BEDROCK CONTEMPORARY LINEAR DROP-IN BURNER- Drop-in Burner is specifically designed to fit any trough style masonry fireplace or contemporary designed wood burning fireplace. Operated with an SIT Proflame II control system including convenient flame modulation on a sleek hand held remote. The Bedrock Burner is also the FIRST vented Drop-in burner system featuring IC controlled LED lighting that operates with a remote or easy to use App.

Note: *Must add lava rock or 1/2 reflective glass and GlowFireTM Logs. Cannonballs, and Driftwood logs optional.

Features

• Sizing: 24″ – 96″
• Flame: High/Low Flame Style
• Standards: Built to ANSI Standards
• Usage: Indoor/Outdoor (Covered area)
• Materials: Powder Coated Steel & Rust Resistant Steel
• Warranty: Lifetime Warranty Metal, 1-Year Warranty Electrical
• Controls: SIT ProFlam 11 Controls for with 5 Flame & Heights

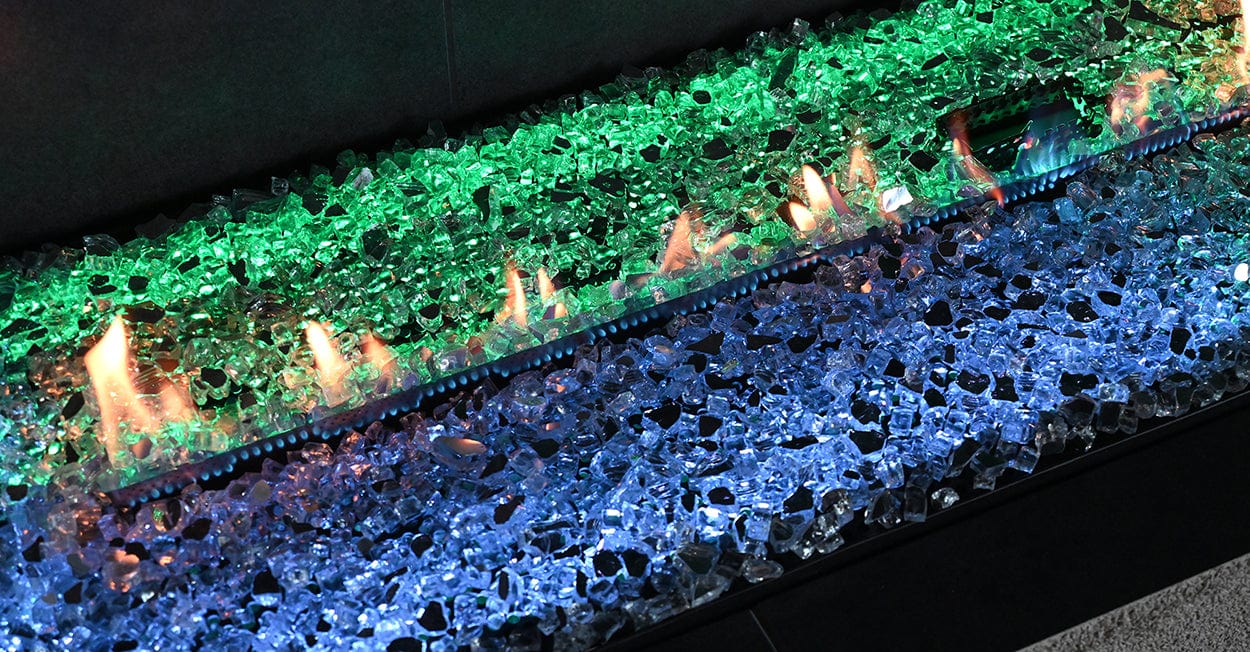

• Lightings: IC Controlled LED Lighting with Remote & APP
• Gas Type: LP or NG Not Field Convertible
• Media: ½” Reflective Glass is required and NOT included
• Installation: Any Trough Style or Wood Burning Fireplace

Product Specifications

Grand Canyon Bedrock 48" Linear Drop-In Burner & Case Product Specifications

Feature	Specification
Models	LDB48L-EN or LDB48L-EP
Power Requirements
Volts	AC 120V / 60Hz
Battery Backup	4+ AA Battery 6V
Lamps	LED 5V RGB
IR Remote Controller	Yes
Customizable Wifi App	Yes
Proflame II System	Yes
Flame Intensity Levels	5 levels
Remote Ignition	Yes
Vented Configuration	Yes
Max. Heat	60,000 BTU/hr (17.56 kW)
Low Heat (NG)	40,000 BTU/hr (11.71 kW)
Low Heat (LP)	30,000 BTU/hr (8.78 kW)

Product Manual

Grand Canyon Bedrock Series Brochure

Grand Canyon Bedrock Burner Owner's Installation Manual

Grand Canyon Bedrock Specification Sheet

Product Warranty

Grand Canyon Product Warranty

Product FAQs

N/A
