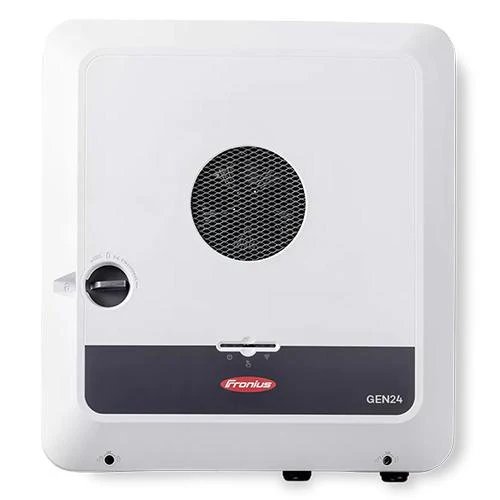

Fronius Primo GEN24 Plus 7.7, 7.7kW Single Phase Inverter | 208/240 VAC

Fronius Primo GEN24 Plus 7.7, 7.7kW Single Phase Inverter | 208/240 VAC

Description

Fronius Primo GEN24 UL

Residential inverter with integrated backup power

Our single-phase inverter is the ideal heart of residential PV systems. The Fronius GEN24 combines smart solutions, intelligent software, and thoughtful engineering to achieve maximum yields.

With PV Point, the Fronius GEN24 offers an integrated basic backup power supply: Connected devices are supplied with backup power through a designated socket as long as the sun is shining.

With its diverse features, the Fronius GEN24 enables economic sustainability for long-term energy self-sufficiency. Discover the key advantages for installers and their customers:

• Integrated shade management
• Basic backup power without battery
• Highly flexible system design potential
• Built-in longevity thanks to the Active Cooling Technology
• Made in Europe
• Sustainably future-proof
• Brochure Fronius GEN24Plus 208-240 | Download
• Brochure Fronius Primo GEN24 208-240 [CAN] | Download
• Brochure Fronius Primo GEN24 208-240 [US] | Download
• Brochure Fronius Primo GEN24 208-240 Plus | Download

Product Specifications

Fronius Primo GEN24 Plus 7.7, 7.7kW Single Phase Inverter | 208/240 VAC Product Specifications

Specification	Details
Number of MPP trackers	2
PV input power	8000 W
Feed-in start voltage (Udc start)	80 V
Min. MPP voltage (U mpp min)	260 V
Max. MPP voltage (U mpp max)	480 V
Max. switchover time PV-Point	22 s
Max. switchover time Full Backup	17 s
Mains Frequency	50 1/s, 60 1/s
Length	583 mm
Width	529 mm
Height	583 mm
Depth	180 mm
Weight	20.85 kg
Weight incl. packaging	25.9 kg
Protection class	1
Overvoltage category (DC / AC)	2 / 4
Inverter design	Transformerless
Cooling	Active Cooling Technology
Installation	Indoor and outdoor installation
Min. permissible ambient temperature	–40 °C
Max. permissible ambient temperature	60 °C
DC PV connection technology	2x DC+1, 2x DC+2, 4x DC– spring-type terminals (solid copper)
DC battery connection technology	1x DC+ and 1x DC–, spring-type terminals (copper AWG 12–8)
AC connection technology	Spring-type terminals (copper stranded / fine stranded AWG 12–6; backup AWG 16–8)
Back-up power functions	PV Point
Sound emissions	51 dB(A)
Interference emission class	B
DC insulation measurement	Yes
Overload behaviour	Operating point shift, power limitation
DC disconnector	Yes
DC reverse polarity protection	Yes
Arc fault circuit interrupter (Fronius Arc Guard)	Yes
Grid connection	NPE

Product Manual

Brochure Fronius GEN24Plus 208-240 | Download

Brochure Fronius Primo GEN24 208-240 [CAN] | Download

Brochure Fronius Primo GEN24 208-240 [US] | Download

Brochure Fronius Primo GEN24 208-240 Plus | Download

Product Warranty

Fronius Product Warranty

Available Warranty Types
Fronius offers two types of warranty extensions. You can either chose the Fronius Warranty Plus which covers the cost of material, labour (service lump sum payment for the exchange by the installer) and freight or the Fronius Warranty which covers the cost of material only.

A detailed overview of the warranty types is available on the Fronius homepage.

Product FAQs

Fronius Product FAQs

How do I find Installer in my area?

You can find your nearest installer using our dedicated search tool, the Fronius Service  Partner Search.

I would like t buy PV system. What do I need to do?

If you would like to buy a PV system, please contact an installer. If you do not know any local companies, you can find your nearest installer using our dedicated search tool.

What does Fronius offer in terms of e mobility?

The Fronius Wattpilot is an intelligent charging solution for everyone with an electric car. The Fronius Wattpilot is available in two versions - the permanently installed Wattpilot Home for your home and the mobile Wattpilot Go for on the way. The device can be operated via the associated Solar.wattpilot app, which also provides an overview of the charging process. The intelligent plug-and-play charging solution has two different charging modes, the Eco and the Next Trip mode. In addition, the Wattpilot is PV-optimized: The car can therefore be charged with excess solar energy in ampere steps in a particularly cost-efficient and sustainable manner.
