EcoFlow Delta 2 Max + 160W Solar Panel
EcoFlow Delta 2 Max + 160W Solar Panel
Description

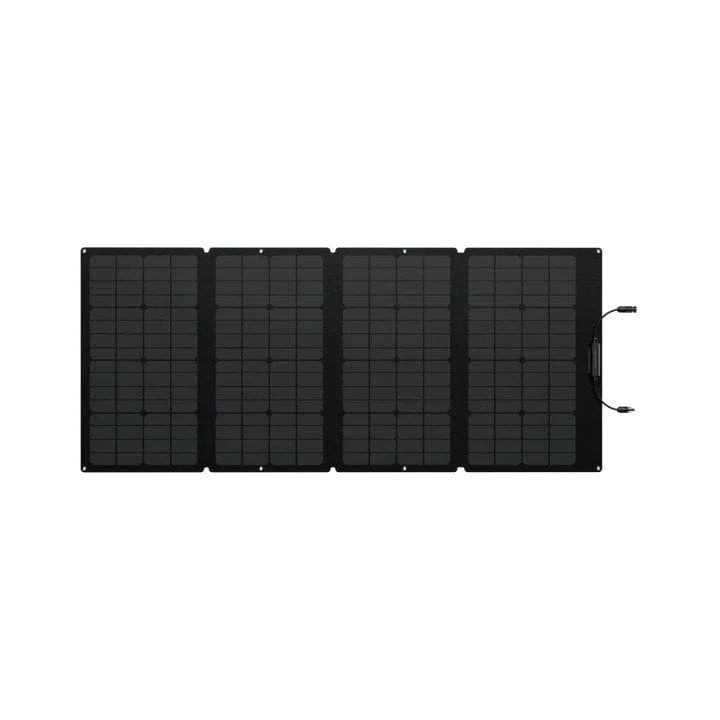

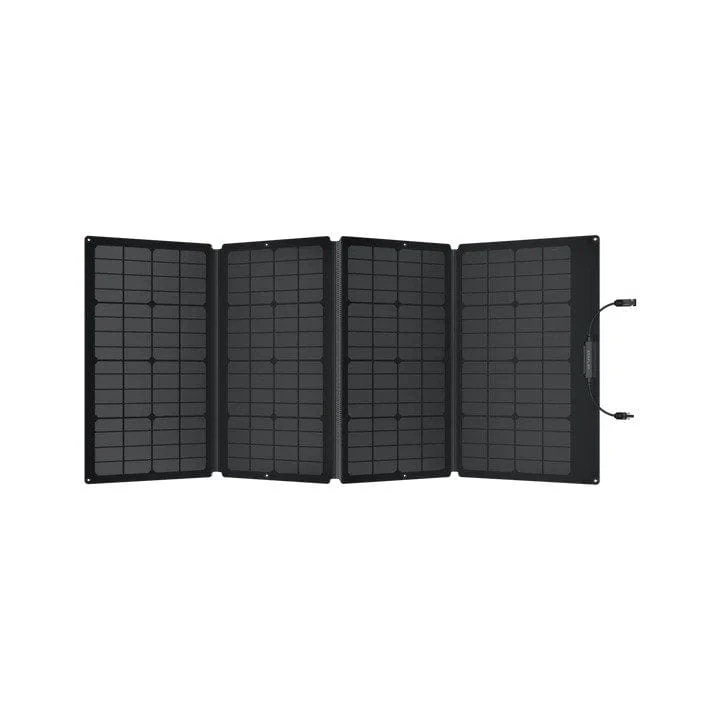

Stay in charge wherever you go. The EcoFlow 160W Solar Panel is portable, foldable, and intelligently designed, delivering a smart and easy way to produce power on the go.
Portable & Foldable: The EcoFlow 160W Solar Panel is portable and foldable, making it ideal for camping, hiking, and outdoor adventures. The solar panel folds into a compact size for transportation, and can be unfolded and set up easily.
Advanced Solar Cells: The 32 premium monocrystalline silicon cells provide a high conversion efficiency of 22%, guaranteeing efficient power in daylight conditions. The total maximum input of the solar panel is subject to environment and operation conditions. Use the solar panel in direct sunlight for the best performance.
Adjustable Kickstand: The adjustable kickstand enables you to position the solar panel in any direction or orientation. This design feature ensures that you can connect and position multiple panels together without making them overlap, which provides more efficient solar panel charging.
Compatible Design: The universal MC4 connector is compatible with other products on the market, and it enables you to connect multiple EcoFlow 160W Solar Panels together with the EcoFlow DELTA for more efficient solar power generation.
Durable, Dust & Water resistance: Whether you are camping, hiking, or going on a road trip, the EcoFlow 160W Solar Panel has got your back. With IP67 rated dust and water resistance, our solar panel is designed for the great outdoors, also featuring an 0.2mm ETFE film that protects the surface from ultraviolet light and prolongs the life of the product.
Product Specifications

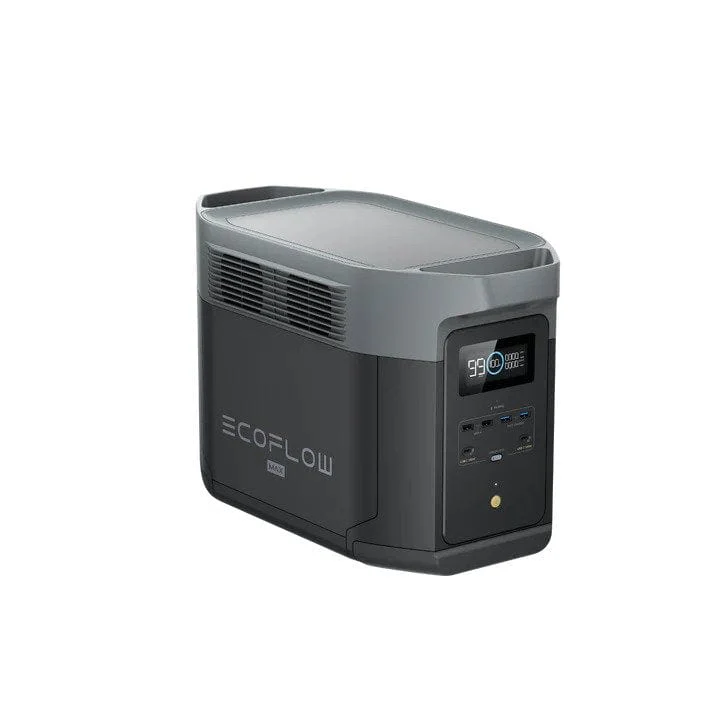

EcoFlow Delta 2 Max Product Specifications
| Product Name | EcoFlow DELTA 2 Max |
| Capacity | Expandable from 2048Wh to 6144Wh |
| AC Input | X-Stream 1800W, 15A |
| Solar Input | 1000W Max, 11V-60V, 15A ; 500W per port |
| AC Output (×6) | 2400W (Surge 4800W), X-Boost 3400W |
| 120V~ 50/60Hz | |
| DC Output | 2×USB-A / 2×USB-A Fast Charging / 2×USB-C (100W) / 1×Car Power Outlet / 2×DC5521 |
| Battery | LFP chemistry, 3000 cycles to >80% capacity |
| Connection | Wi-Fi & Bluetooth |
| Version | 100-120V: US, JP |
| 220-240V: EU, CN, Intl, UK, AU, KR | |
| Dimensions | 497×242×305 mm (19.6×9.5×12 in) |
| Weight | 23 kg (50 lb) |
| What’s in the box | DELTA 2 Max |
| AC Charging Cable | |
| Car Charging Cable | |
| DC5521 to DC5525 Cable | |
| User manual & warranty card |
EcoFlow 160 Solar Panel Product Specifications
| Unfolded Dimensions |
26.8*61.8*1.0 in (68*157*2.4 cm) |
| Folded Dimensions |
26.8*16.5*1.0 in (68*42*2.4 cm) |
| Weight |
15.4 lb (Solar Panel 11 lb) |
| Warranty |
12 months |
| Rated Power |
160W(±5W) |
| Efficiency |
21%–22% |
| Connector Type |
Solar Connector |
| Open Circuit Voltage |
21.4V (Vmp 18.2V) |
| Short Circuit Current |
9.6A (Imp 8.8A) |
| Operating & Storage Temperature | −4°F to 185°F |
Product Manual
EcoFlow DELTA 2 MAX Product Manual
EcoFlow 160W Solar Panel | User Manual
Using DELTA for the First Time
How to Connect Portable Solar Panels to EcoFlow Portable Power Station
How to use EcoFlow Portable Solar Panel
Product Warranty
EcoFlow Product Warranty
Please note that the warranty period may vary according to local laws and regulations. Some countries, states, and provinces do not allow limitations on how long an implied warranty may last, so the limitation described above may not apply to you. You may have other rights from state to state, province, or country.
DO NOT USE YOUR PRODUCTS UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY.
All EcoFlow products purchased come with a limited warranty. BY USING ECOFLOW PRODUCTS, YOU AGREE TO BE BOUND BY THE TERMS OF THE ECOFLOW LIMITED WARRANTY.
The warranty period started when the original purchaser received the products.
Warranty extension
You can extend the warranty for products purchased between January 1, 2022, and August 31, 2022, by registering on the official website on or before October 15, 2022.
Warranty cannot be extended for products purchased before January 1, 2022.
Customers who have purchased products on or after September 1, 2022 will enjoy the warranty period (with warranty extension) listed in the table above. Customers are advised to complete registration as early as possible.
Exclusions and Limitations
This warranty does not apply:
Non-quality related issues;
Items purchased from unauthorized resellers;
Purchases without valid proof of purchase;
Items that have been refunded;
Items that have expired their warranty period;
Any defects or damages caused by misuse of products, unauthorized modification, dis-assembly or operation not in accordance with the official instructions or manuals;
Any defects or damages caused by exposure to excessive heat, liquids or other external causes;
Any defects or damages caused by reliability or compatibility issues when using unauthorized third-party parts;
Lost or stolen products;
Free products.
Cross-Regional After-Sales Service
EcoFlow does not provide a global product warranty, and the warranty service can only be obtained at a designated EcoFlow repair center.
To repair the product in an EcoFlow repair center when the product was purchased in another region, depending on part availability, customers can obtain a cross-regional repair service at an additional charge. (Some products do not support cross-regional repair even if the customer is willing to pay for the service. For more details, please contact EcoFlow Support.)
A cross-regional replacement service is not available for different versions of the same product.
The customer will need to bear customs duties, taxes, customs clearance, and other costs incurred for a cross-regional repair, regardless of whether it is the warranty or paid repair service.
Product FAQs
Can I connect more than one power station together in series? (For all power stations)
Yes, we recommend connecting 2 same units in series at most. Furthermore, please also note:
1. The slave unit must be fully charged before being connected.
2. Must not charge the main unit when the slave is connected.
How long does it take to fully charge?
A total of 1.3H is required to be fully charged.
DELTA Maintenance and Storage?
1. To prolong the battery life, we recommend that you use and store DELTA in an environment
of 20°C to 30°C, away from water, heat, and metal objects.
2. For long-term storage, discharge the product down to 30% and then charge it up to 60%.
Continue to follow this procedure every 3 months. Units that are not charged and discharged for
more than 6 months will no longer be covered under warranty.
3. For safety reasons, please do not store this product in an environment above 45°C or below
-10°C over a long period.
Can Other Solar Panel Brands Charge DELTA Max?
DELTA Max can be charged using any solar panels with the same solar connectors and within
an input range of 800W 11-100V DC 13A.
