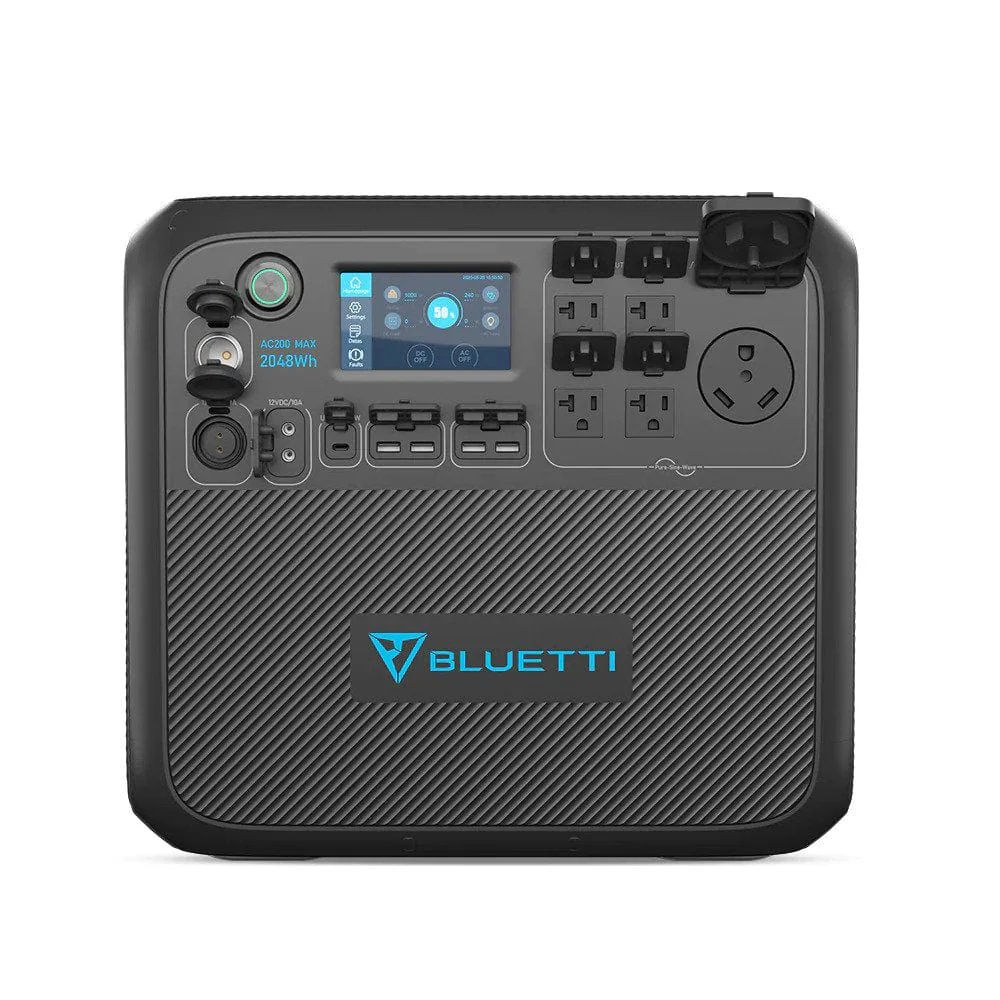

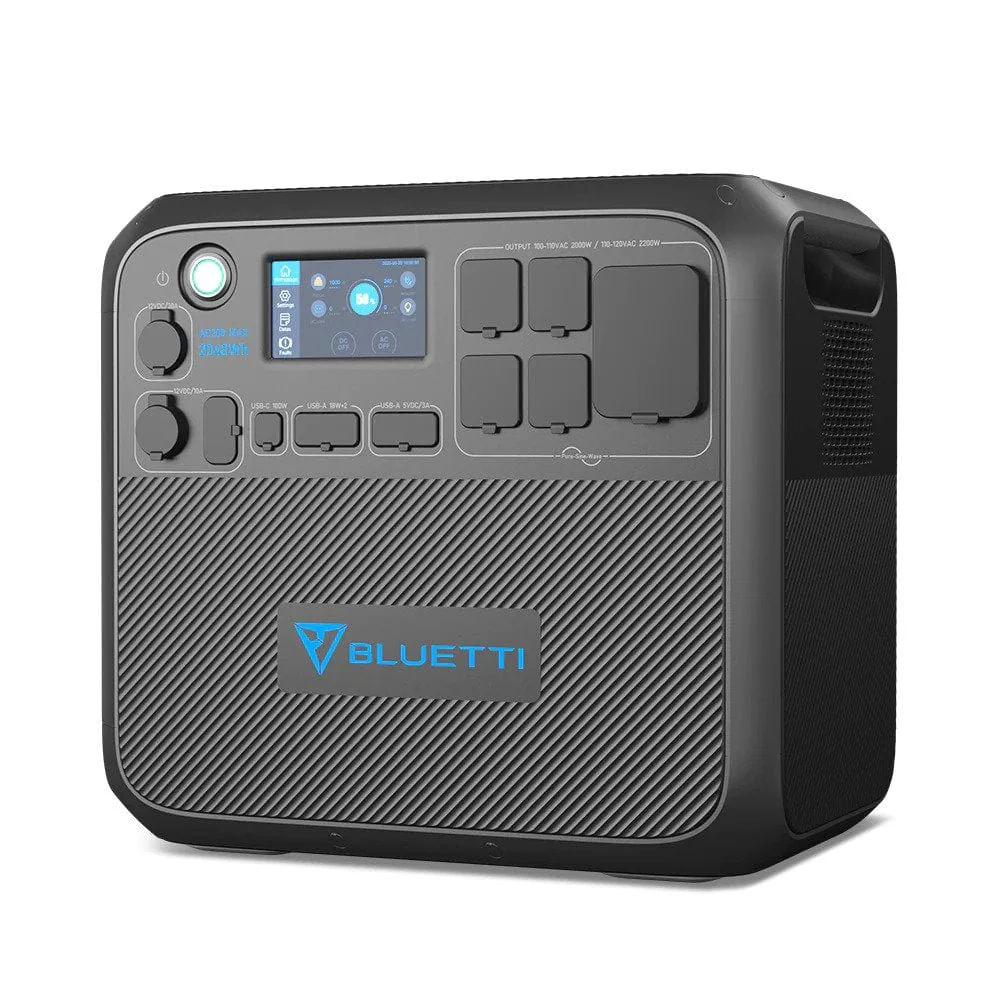

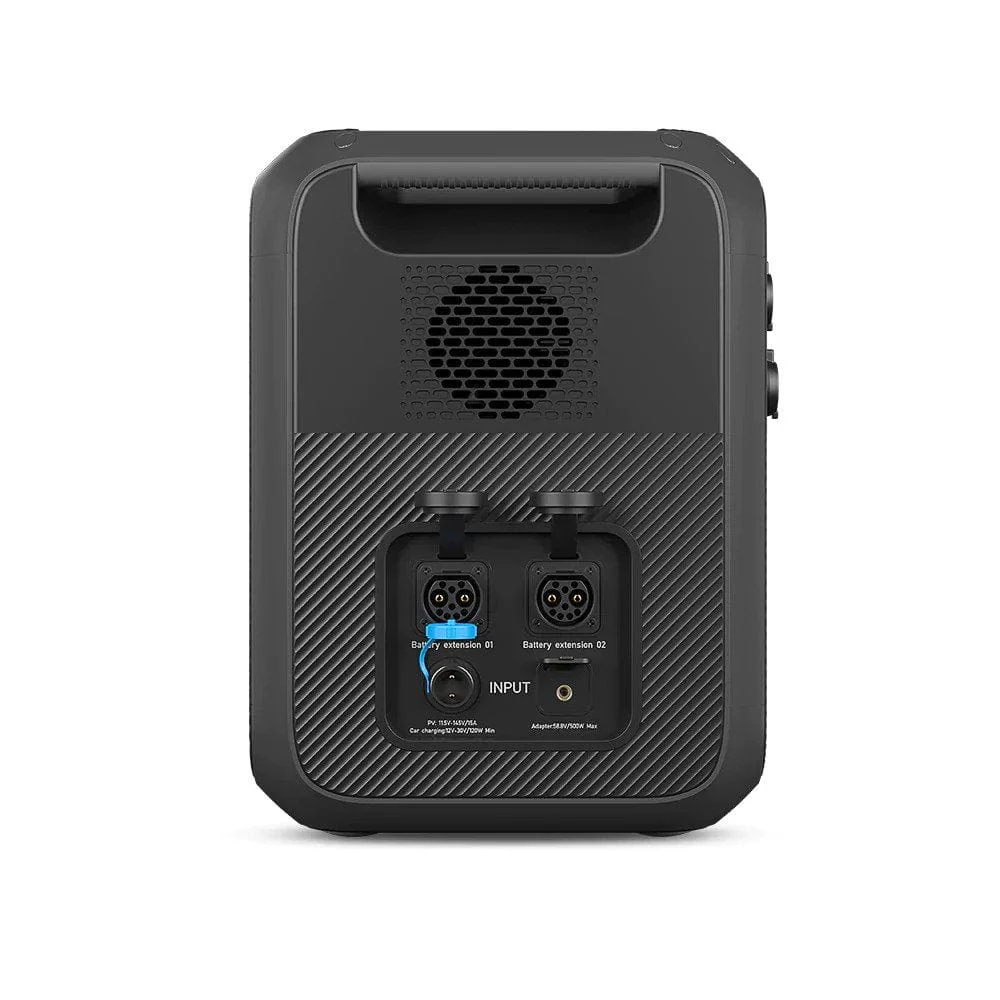

BLUETTI AC200MAX Expandable Power Station Solar Generator

BLUETTI AC200MAX Expandable Power Station Solar Generator

BLUETTI AC200MAX Expandable Power Station Solar Generator

Description

  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
  • 2,048Wh Capacity
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
  • 900W Max. Solar Input
  • 1400W Max. Fast Dual Charging (Solar + AC Adapter)
  • Smart Control & Monitor in BLUETTI App

Less To Spend, More To Love

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!


Get Charged In Anyway You Prefer

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

Product Specification

BLUETTI AC200MAX Expandable Power Station Solar Generators Product Specifications

PREVIEW

BATTERY INFO

Capacity:
2,048Wh (51.2V, 40Ah)
Type:
LiFePO4 (Lithium Iron Phosphate)
Life Cycles:
3,500+ Cycles to 80% Original Capacity
Shelf-life:
Recharge to 80% Every 3-6 Months
Management System:
MPPT Controller, BMS, etc



OUTPUT

AC Outlets:
4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total
Inverter Type:
Pure Sine Wave
Surge Power:
4800W
USB-C Port:
1X100W Max.
USB-A Port:
2 x 5V/3A USB-A
2 x 18W USB-A
12V DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.
Wireless Charging Pad:
2 x 15W Max. (For Each)


INPUT

AC Adapter Input:
500W.
Solar Input:
900W Max., VOC 10-145VDC, 15A
Car Input:
12/24V from Cigarette Lighter Port
Max Input:
1,400W, with AC+Solar Input


RECHARGE TIME

AC Adapter (500W):
≈5.5~6 Hours
Solar (900W):
≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W):
≈10 or 20 Hours
AC Adapter + Solar (1400W):
≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC Adapters (1000W):
≈3~3.5 Hours (Extra adapter is REQUIRED)


GENERAL

240V Split Phase Bonding:
No. Need 240V power source?
Scalability:
Expandable w/ Up to 2 x B230 or 2 x B300
Pass-through Charging:
Yes
Weight:
61.9lbs (28.1kg)
Dimensions (LxWxD):
16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
Operating Temperature:
-4-104℉ (-20-40℃)
Storage Temperature:
14-113℉ (-10-45℃)
Certifications:
UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty:
48 Months (Learn more about BLUETTI warranty policy)



IN THE BOX

Product Manual

BLUETTI AC200MAX Expandable Power Station Solar Generator |  Product Manual

Product Warranty & Returns

Warranty & Return Policy

Warranty Period

BLUETTI warrants that the product will be free from defect in workmanship and material to the original consumer purchaser.
The warranty period starts on the date of purchase by the original consumer purchaser,

  • For the product of portable power station, the warranty period varies from 24 months to 72 months.
  • For the product of home backup system, the warranty period varies from 48 months to 60 months.
  • For the product of solar panel and accessories as cable, charger etc, 12 months is provided for the warranty service.

No warranty for gifts product and Warranty period may vary by country subject to local laws and regulations.
Please click here for more details.

Warranty Statement
Any defects in material, workmanship of your product will be covered after you provide any valid proof of purchase and information including but not limited to:

  • A purchased order number made through BLUETTI official stores.
  • Sales invoice or order confirmation email that clearly shows the description of the product, its price, and sales channel.

Note: The limited warranty is restricted to the country of purchase. The warranty will be invalid on the items once they are taken or shipped to other countries.

Exclusions of Warranty
1. Misused, abused, damaged by accident or damaged due to force majeure (e.g. lightning strikes, tornadoes, hurricanes, etc.);
2. Unauthorized modification, repair, dis-assembly or operation not in accordance with the official instructions or manuals;
3. Purchased from unauthorized resellers;
4. Use for special application other than normal consumer use;
5. Lost, stolen or full refunded product;
6. Any defect or damage caused by exposure to excessive heat, cold, liquids or other external causes;
7. Invalid proof of purchase;
8. Warranty period expired
9. The battery model on the warranty certificate does not match the actual item;
10. Unauthorized alteration on the warranty certificate;
11. Product wear and tear through the usage of time.

Return and Refund

  • Order Cancellation:

Order Cancellation can be requested by customer within 48 hours after placing an order by email or phone with the BLUETTI official store. If the product has been shipped, an intercept fee will be charged.

  • 30 days money-back guarantee will be automatically credited to your order.
  • For more details, please click here.

Claim Process

  • Please contact us via Email: [email protected] , Monday through Sunday, for any assistance with the product.
  • For any warranty claims, service performed by BLUETTI or local authorized service partner, subject to the options below:
  • Repaired by BLUETTI service center, or
  • Swap for a replacement product with equivalent specifications according to model and service life
  • In case of replacement, a refurbished model of equal value may be provided and the delivery of the replacement will be arranged within 7 business days (subject to changes caused by force majeure) after confirming the defective item has been received at BLUETTI warehouse.
  • A swap product assumes the remaining warranty of the original product or thirty (30) days from the date of replacement, whichever is greater.
  • For any out of warranty claims, please priorly contact BLUETTI service for more details.

Warranty Extension

  • The warranty extension is now only applicable for the model of AC200MAX, AC200P or B230 purchased from BLUETTI official website with protection against damage without service fee.
  • Any purchases of the four models from other platforms are required to submit the application for extended warranty by the link below:https://www.bluettipower.com/pages/warranty-extend

Disclaimer of Implied Warranties

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of fitness for a particular purpose or use and any implied warranty of merchantability otherwise applicable to BLUETTI portable solar generators. BLUETTI and its affiliated companies shall not be liable for any special, incidental or consequential damages, including lost profits. There are no warranties extended other than as provided herein.
This limited warranty may be modified only by BLUETTI. Any implied warranties allowed by law shall be limited in duration to the terms of the express warranty provided herein. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights. You also have other rights from state to state. BLUETTI’s only liability shall be the repair or replacement as stated above.

Product FAQs

BLUETTI AC200MAX Expandable Power Station Product FAQs

Q1. How many BLUETTI B300 or B230 expansion batteries can connect with the AC200MAX?

 A1.
Two B300 for 8,192Wh capacity.
Two B230 for 6,144Wh capacity.

Q2. Can I connect third-party expansion batteries to AC200MAX?

 A2. No. AC200MAX ONLY accepts BLUETTI B230 or B300 expansion batteries.

Q3. Does AC200MAX support App control?

 A3. Yes. Once connected via Bluetooth, the BLUETTI App will enable you to control the
AC200MAX remotely, like switching the working mode and upgrading the firmware.

Q4. Can I use AC200MAX as a UPS?

 A4. No.

Q5. What kind of solar panels should I choose for AC200MAX?

A5.
PV input requirements for AC200MAX:
Open Circuit Voltage: 10-145V
Input Power: 900W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈3.5hrs.
4x BLUETTI PV200: ≈3hrs.
2x BLUETTI PV350: ≈3.5hrs.
* For reference ONLY.

Q6. Can I connect two units of AC200MAX together for more power (240V Split Phase Bonding)?

A6. No.
