Description

AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to small  devices in a work truck or small appliances for a cabin, this solar kit includes all necessary products required and bundled for your convenience. This 120 watt solar kit is most effective when used to power  small appliances (not microwaves).  Includes a slightly bigger inverter to power items up to 10.4 amps but for short periods of time. If you need more run time consider adding more panels or batteries. Another option is to upgrade to a larger kit. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. Each system comes with a wiring diagram upon purchase.

120 WATT SOLAR KIT 1250 WATT INVERTER OFF GRID SOLAR KIT

Specifications: 120 WATT SOLAR KIT 1250 WATT  INVERTER OFF GRID

You can find the specifications for each product by clicking on the links below.

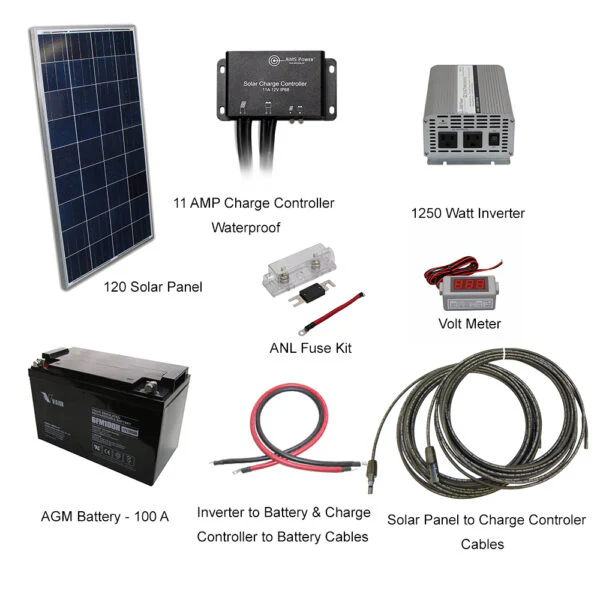

This solar kit includes:

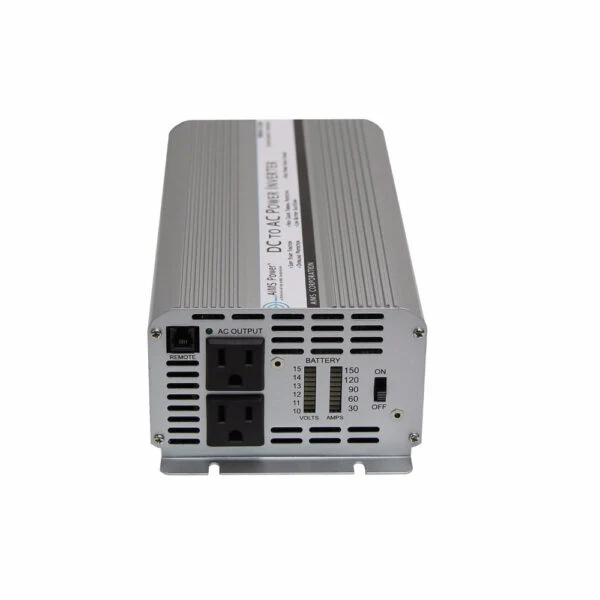

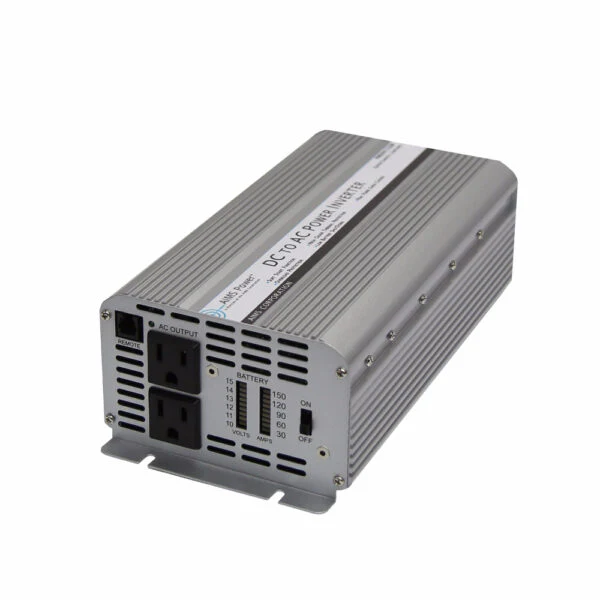

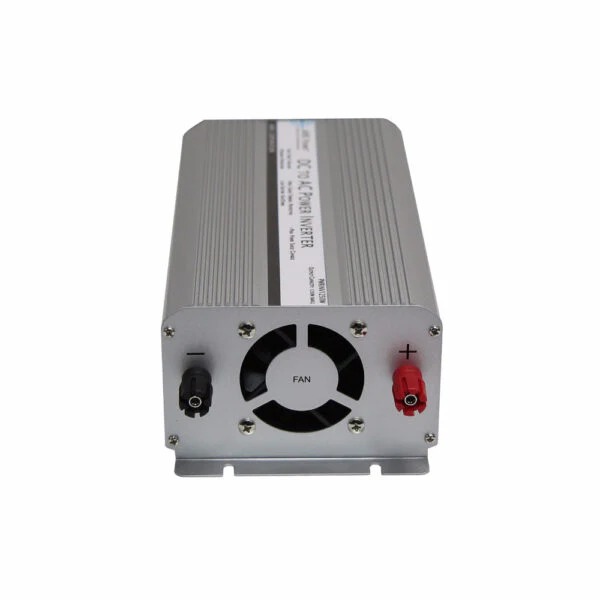

• PWRB1250W – 1250 watt inverter 10 amps
• PV120MONO – qty 1 – 120 watt mono solar panel @6 SQ FT

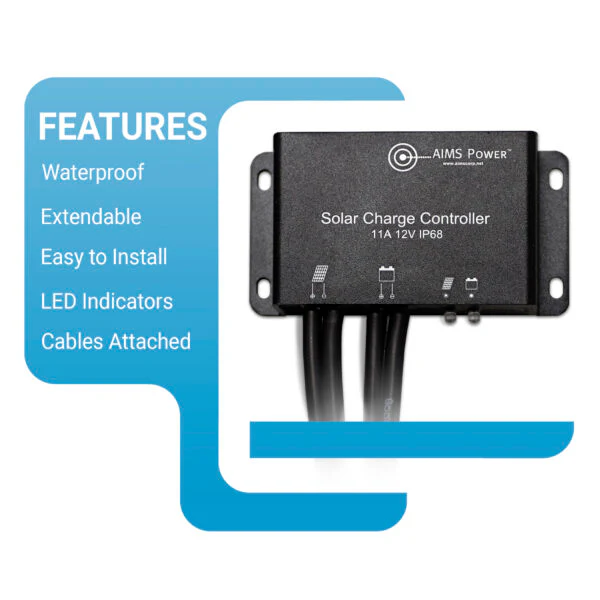

• SCC11ARPM – 10 amp PWM solar charge controller

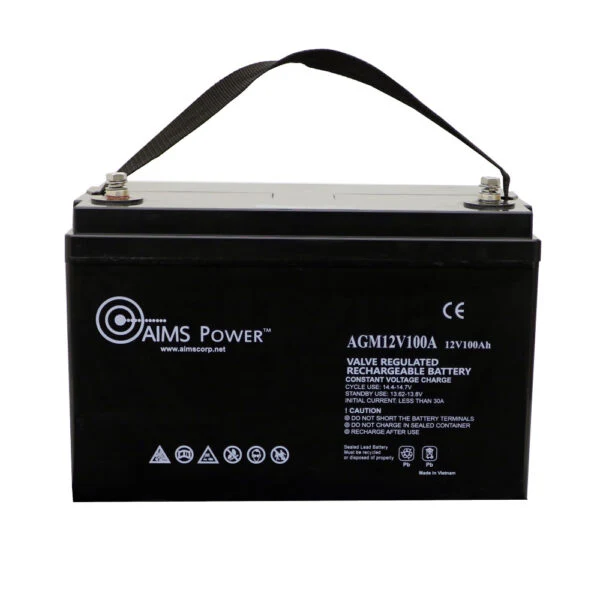

• AGM12V100A – qty 1 – 100 ah AGM deep cycle battery
• PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
• PVL30FT – 30 foot PV wire  for Charge Controller to Battery (cut to lugged ends for battery)
• CBL08FT6AWG – 8 ft 6AWG set of cables battery bank to inverter
• CBL01FT6AWGRED – 1 ft jumper for fuse kit

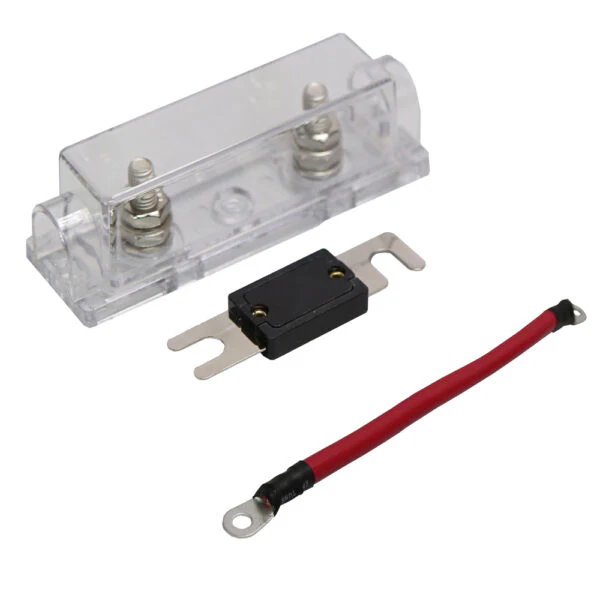

• ANL150KIT – 150 amp inline fuse kit
• Volt meter

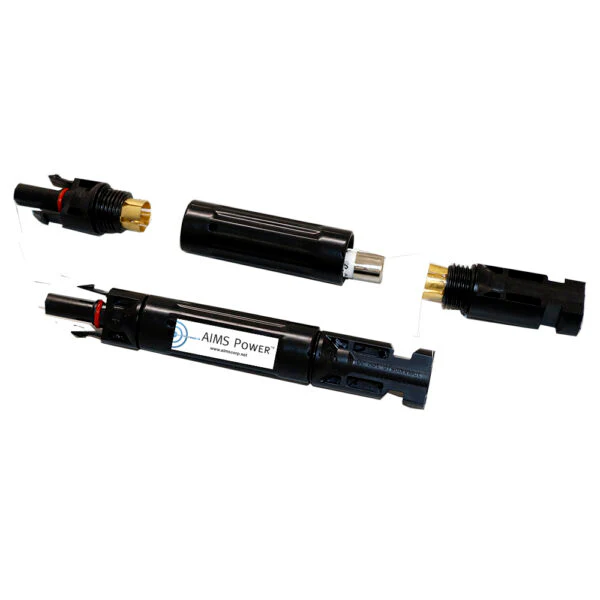

• Solar inline fuse 15A

Features:

• Easy to connect and use
• Everything included except mounting/racks for solar panels
• Works with devices up to 1250 watts/ 10 AC amps 120 VAC
• Ideal for any equipment that needs standby back up or off grid power
• Perfect for a small home, cabin or business
• Need @6 sq ft available for solar panel

*The solar panel array will recharge a 50% depleted 100 amp battery bank in under 5 hours with full sunlight.*

Product Specifications

Aims Power Off Grid Solar Kit | 1250W Power Inverter | 120 Watt Solar Panels | 100 A Batteries Product Specifications

Specification	Details
Manufacturer	AIMS Power
Part Number	KITB-B125012120
System Type	Off-Grid / Backup Solar Power Kit
Inverter Output	1250W (10A @ 120VAC)
Solar Panel Output	120W Monocrystalline
Battery Capacity	100Ah AGM Deep Cycle
Charge Controller	10A PWM Solar Charge Controller
Required Solar Space	Approx. 6 sq ft
Ideal Use	Small home, cabin, RV, or backup power
Ease of Installation	Easy to connect and use
Included Components	1250W inverter, 120W solar panel, 100Ah AGM battery, 10A PWM charge controller, 100 ft 10AWG PV cables (panel to controller), 30 ft PV cable (controller to battery), 8 ft 6AWG inverter cables, 1 ft jumper cable, 150A inline fuse kit, volt meter, 15A solar inline fuse
Mounting Hardware	Not included
Item Weight	130 lbs

Product Manual

AIMS Power 1250 Watt Power Inverter – PWRB1250

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
