Aims Power Off Grid Solar Kit | 1000W Pure Sine Inverter Charger | 720 Watt Solar Panels | 400 A Batteries

Aims Power Off Grid Solar Kit | 1000W Pure Sine Inverter Charger | 720 Watt Solar Panels | 400 A Batteries

Description

AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to an off-grid home/cabin or looking for a back-up power source for a small business , this solar kit includes all necessary products required bundled for your convenience.  this kit is ideal for powering up to 8 amps for longer periods of time. The 720 watt solar kit includes an pure sine inverter charger that has a built in battery charger to recharge the batteries when 120 VAC city or generator power is available.  The 1000 watt pure sine inverter charger can power 110/120  Volt appliances, electronics, tools and pumps up to  8amps. The panels are covered in tempered glass to protect from hazardous weather and will keep up with your load during optimal sunlight. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The 12 Volt 200 amp AGM deep cycle batteries will provide quality, efficient power.  Each system comes with a wiring diagram upon purchase.

720 WATT SOLAR KIT 1000 WATT PURE SINE INVERTER CHARGER OFF GRID SOLAR KIT

This solar kit includes:

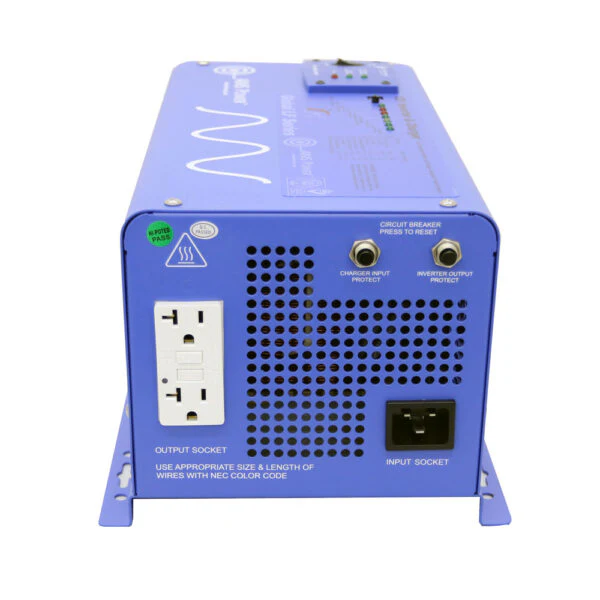

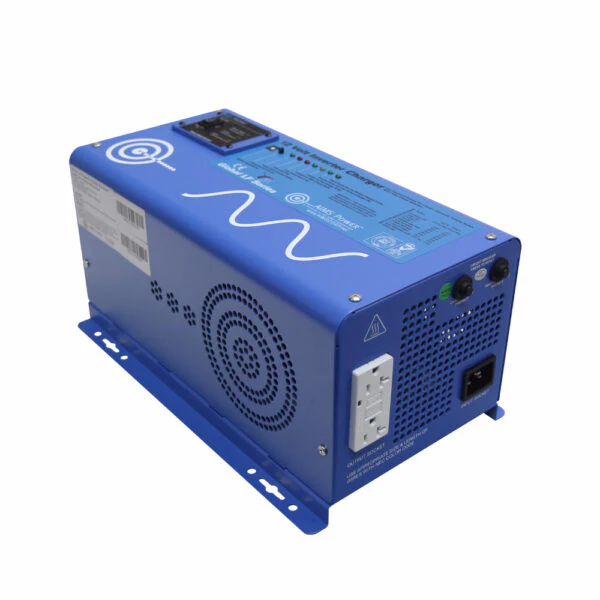

• PICOGLF10W12V120VR- 1000 watt pure sine inverter charger 8 amps @120VAC
• PV120MONO – qty 6 – 120 watt mono solar panel @75 SQ FT

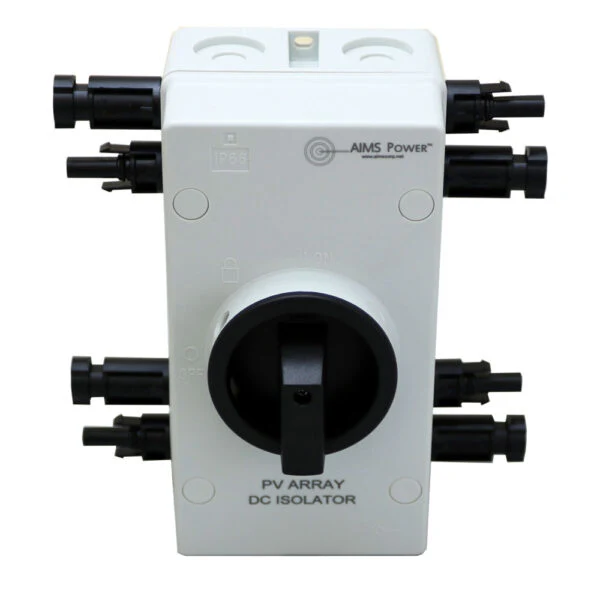

• Quick disconnect – DC1600V32A2IO
• Pre wired solar array combiner box 3 string

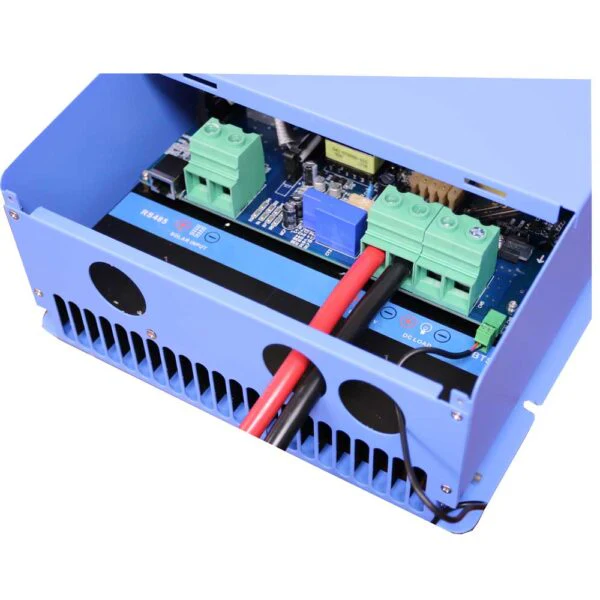

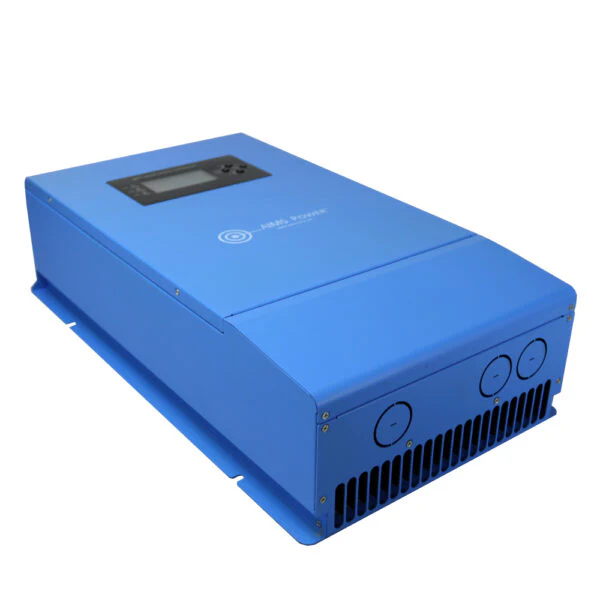

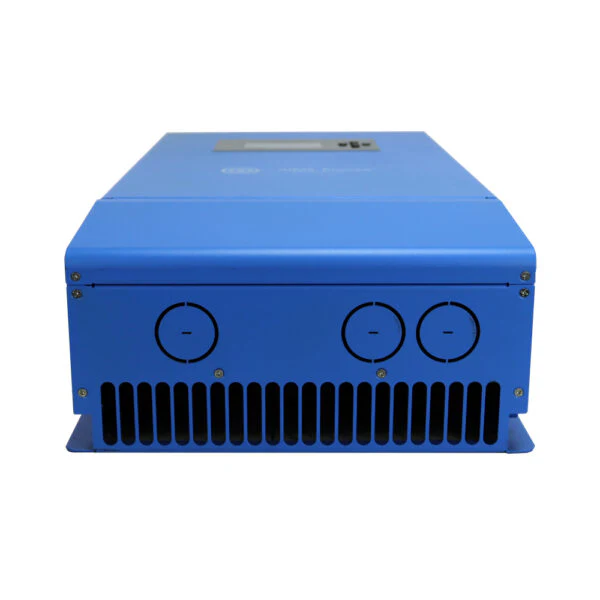

• SCC60AFM – 60 amp MPPT solar charge controller
• PV-F15 – Solar inline fuse 15 amp

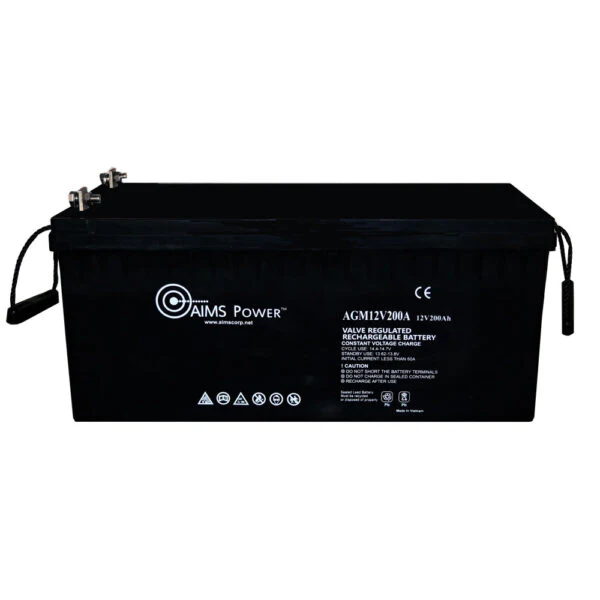

• AGM12V200A – qty 2 – 200 ah AGM deep cycle batteries
• PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
• PVF100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (female)
• PVM100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (male)
• PVF20FT10AWG – male and female extender wire for panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
• PICGLFBATS – Battery temperature sensor
• CBL08FT6AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
• ANL80KITJ – 50 amp fuse kit for charge controller to battery bank
• CBL08FT4AWG – 8 ft set of 4 AWG cable set battery bank to inverter
• CBL02FT4AWG – 1 set of 2 ft cable (battery cables)
• FV-F15 solar inline fuse
• ANL150KITWJUMP – 150 amp inline fuse kit with jumper for batteries to inverter

Features:

• Easy to connect and use
• Everything included except mounting/racks for solar panels
• Works with devices up to 1000 watts/8 AC amps
• Ideal for any equipment that needs standby back up or off grid power
• Includes 400 amps of battery power
• Perfect for a small home, cabin or business
• Need @75 sq ft available for solar panels

*The solar panel array will recharge a 50% depleted 400 amp battery bank in under 4 hours with full sunlight.*

Product Specifications

Aims Power Off Grid Solar Kit | 1000W Pure Sine Inverter Charger | 720 Watt Solar Panels | 400 A Batteries Product Specifications

Specification	Details
Manufacturer	AIMS Power
Part Number	KITB-1K12120-B1-1
Solar Panel Capacity	720 Watts
Inverter Power	1000W Pure Sine Wave Inverter Charger
Battery Capacity	400 Amp-Hours
System Type	Off-Grid Solar Power Kit
Product Dimensions	30 × 20 × 30 inches
Item Weight	200 lbs
Included Components	720W solar panels, 1000W pure sine inverter charger, battery bank, complete installation components
Application	Off-grid homes, cabins, backup power, sensitive electronics

Product Manual

AIMS Power 1000 Watt Inverter Charger – PICOGLF10W12V120VR

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
