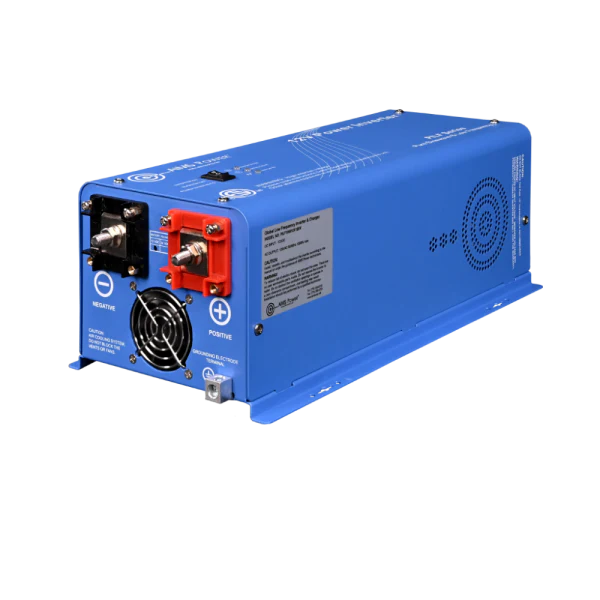

Aims Power 1000 Watt 12V Pure Sine Power Inverter ETL Listed to UL458/CSA- Industrial Grade

Aims Power 1000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade

Description

Industrial Grade 1000W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications

Experience uncompromising power reliability with the AIMS Power 1000W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral – virtually identical to grid power.

Engineered for demanding environments, this inverter delivers a massive 3000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage—even as battery levels drop—making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, and an optional LCD remote panel for convenient monitoring.

Ideal for professional-grade applications:

• Utility and service trucks requiring grid-quality power
• Mobile workshops, food trucks, and field service vehicles
• Off-grid homes, cabins, and emergency backup systems
• Remote construction sites and solar/battery backup installations

Features:

• 1000W – 8 Amps Continuous Power – Handles demanding loads with ease
• 3,000W Surge Capacity – Powers high-startup equipment for 20 seconds
• ETL Listed Conforms to UL458 Standards & CSA
• Pure Sine Wave Output – Clean power safe for most devices

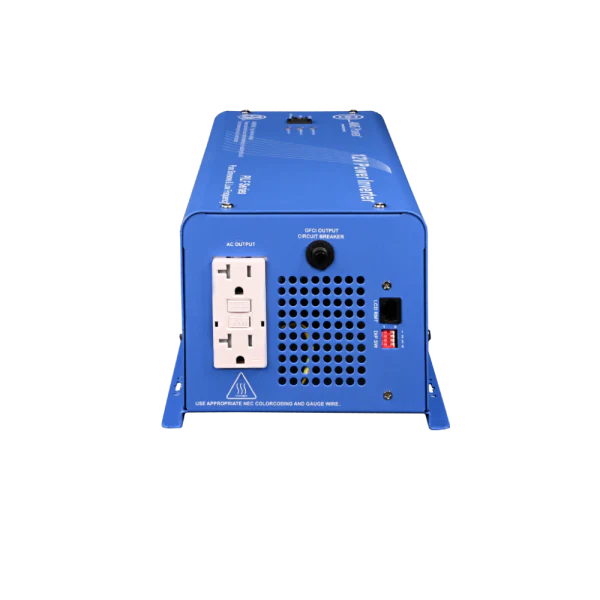

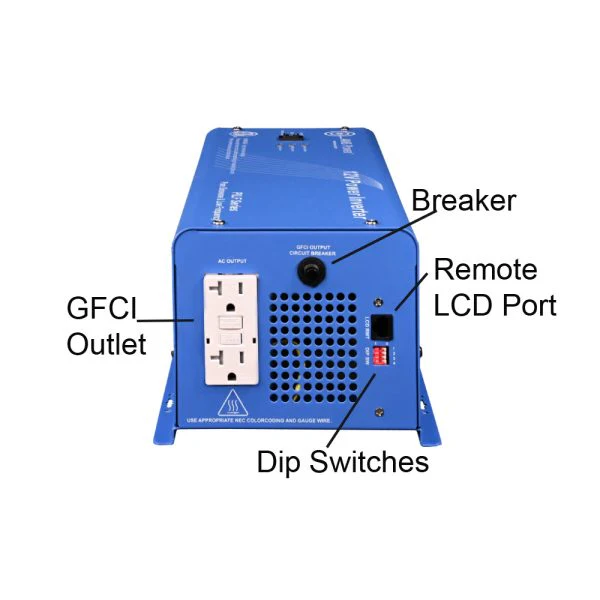

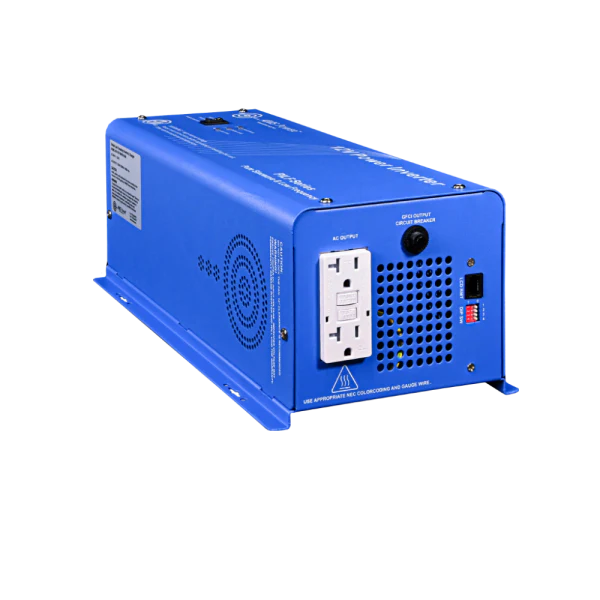

• Single GFCI Duplex receptacle  – Enhanced safety protection
• DSP Technology – Advanced digital signal processing for optimal performance
• Harsh Environment Ready – Built to withstand tough conditions
• 3-Step Controlled Fan – Quiet operation with efficient cooling
• Voltage Regulation – Stable output regardless of battery voltage fluctuations
• Optional LCD display for convenient monitoring- REMOTELF
• Power Save Mode – Energy conservation when no load present
• Overload protection
• Low and high voltage protection
• Short circuit protection
• Low and high temperature protection
• Conformal coated
• 50Hz & 60Hz
• 2 Year Warranty
• Lifetime Tech support

Product Specifications

Aims Power 1000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade Product Specifications

Specification	Value
Continuous Power	1000W
Surge Rating (20s)	3000W
Capable of Electric Motor	1.0HP
Output Waveform	Pure Sine Wave
Nominal Efficiency	Up to 88%
Power Factor	0.9–1.0
Nominal Output Voltage	120Vac
Output Voltage Regulation	±10% RMS
Output Frequency	50/60Hz ± 0.3Hz
Short Circuit Protection	Yes
THD	Typically <3%, Max 10%
Nominal Input Voltage	12Vdc
Minimum Start Voltage	10.0Vdc
Low Battery Alarm	10.5V–12.5V (multiple levels)
Low Battery Trip	10.0V–12.0V (multiple levels)
High Voltage Alarm & Fault	≥16.0Vdc
High DC Input Recovery	≤15.5Vdc
Low Battery Voltage Recover	≥13.0Vdc
Idle Consumption	< 2.5W
Remote Control	Optional
Display	Tri-Color LEDs
Mounting	Wall or flat placement
Inverter Weight	26 lbs
Shipping Weight	28 lbs

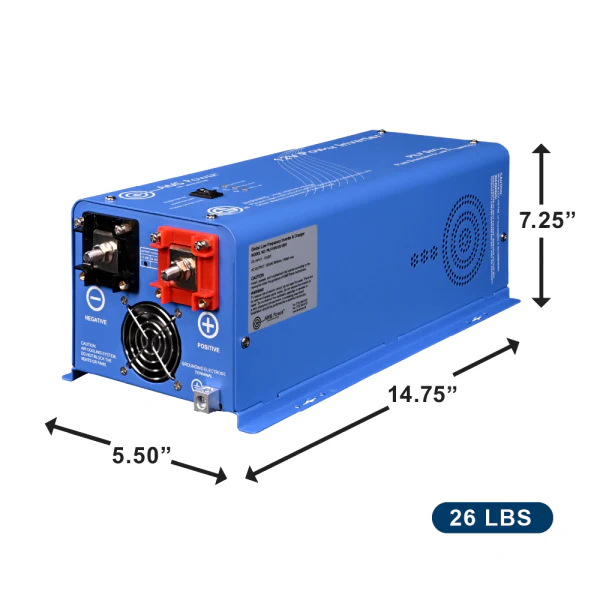

Inverter Size (L×W×H)	14.75 × 5.5 × 7.25 in
Shipped Size	20 × 9 × 9 in

Product Manual

AIMS PILF MAN 071725

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
