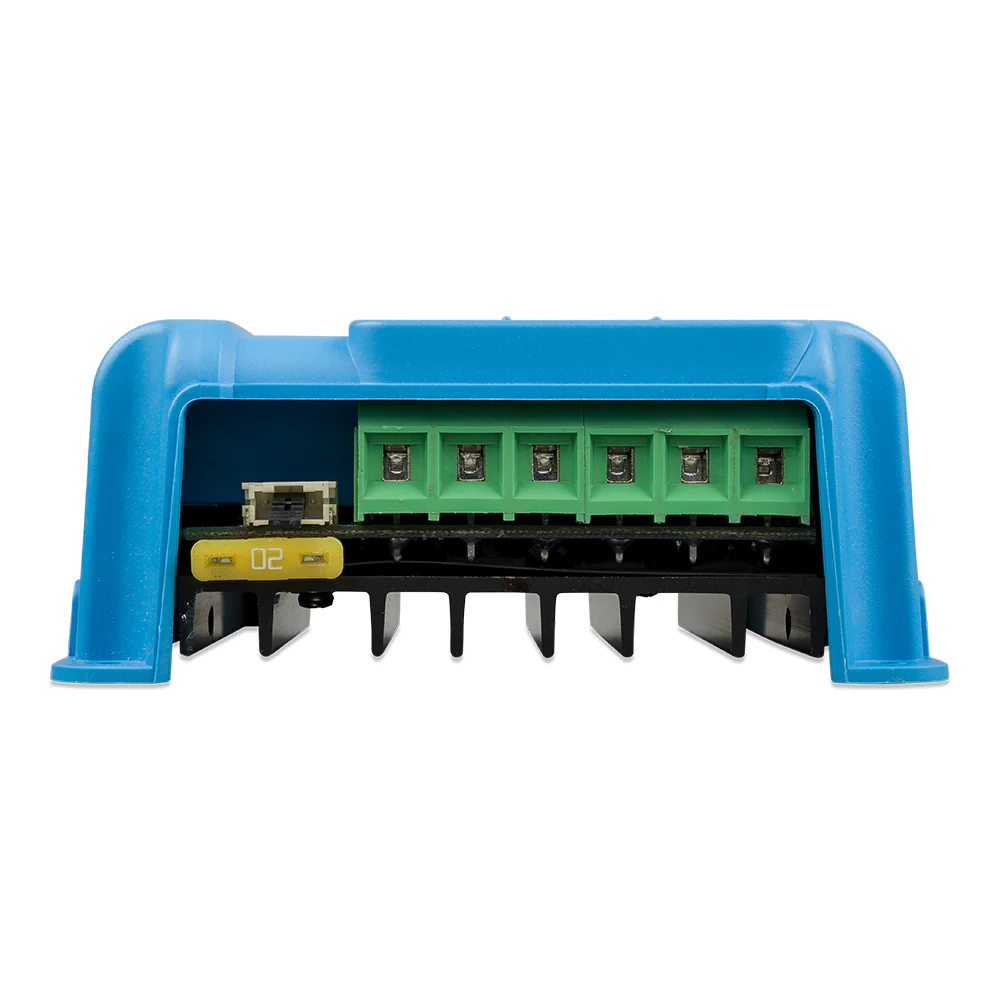

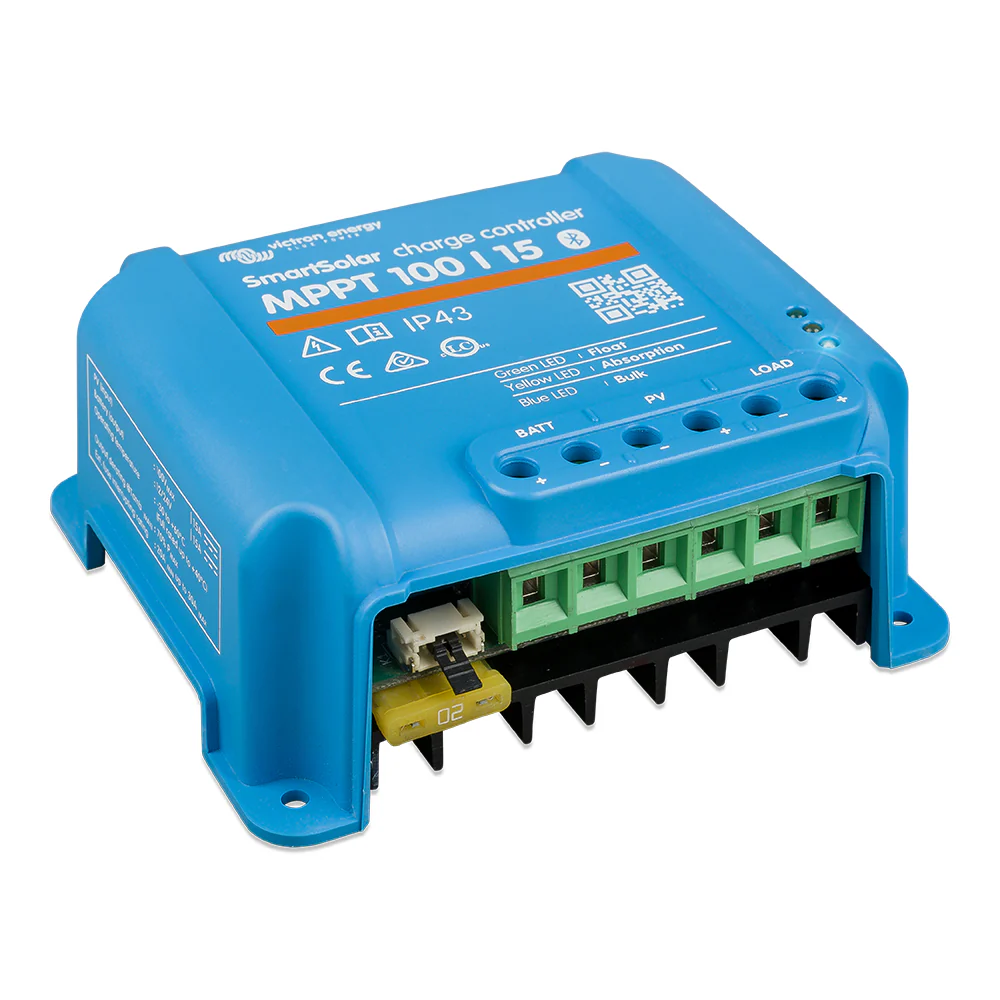

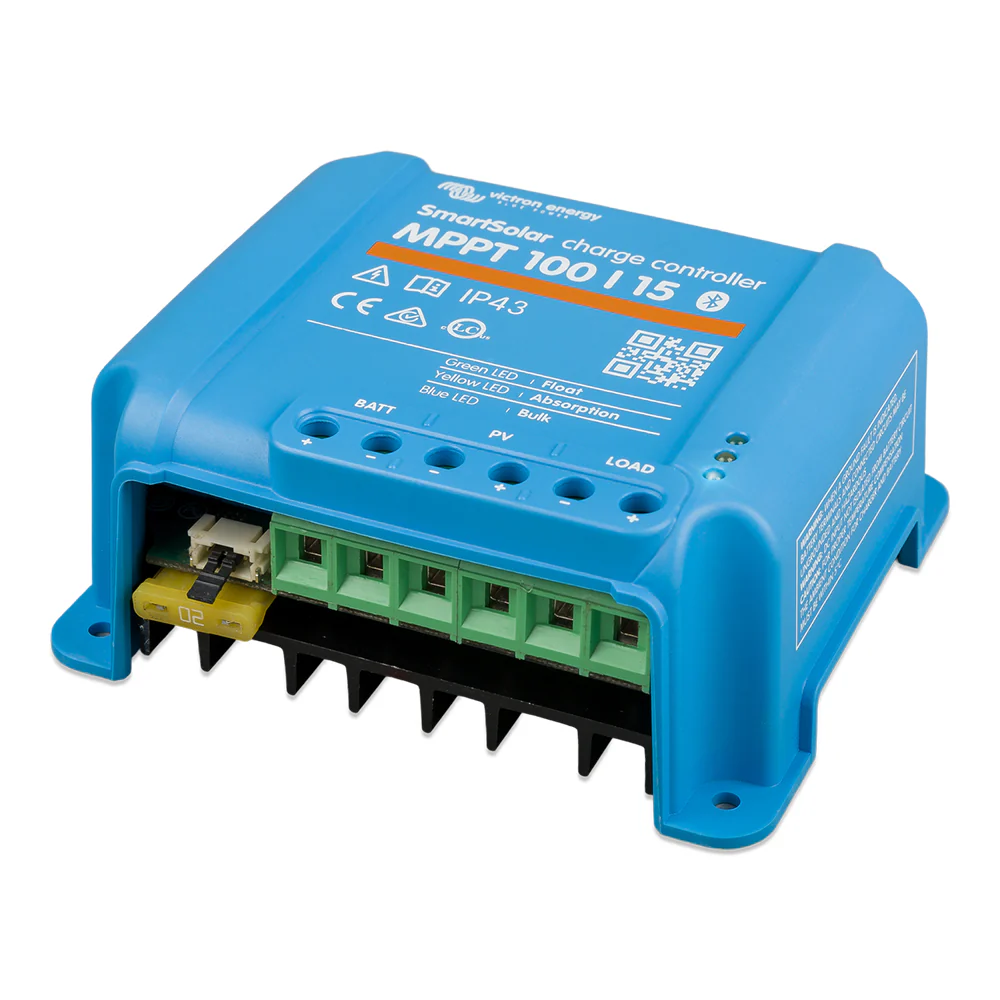

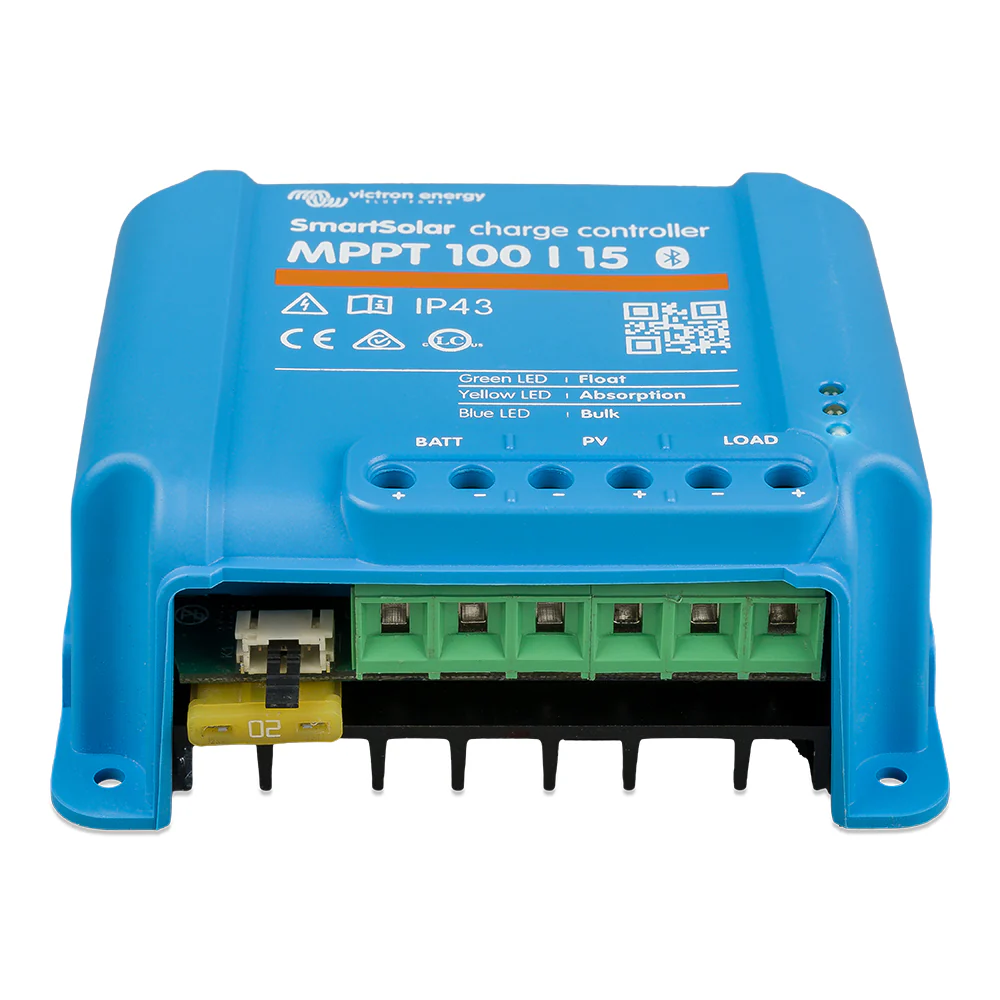

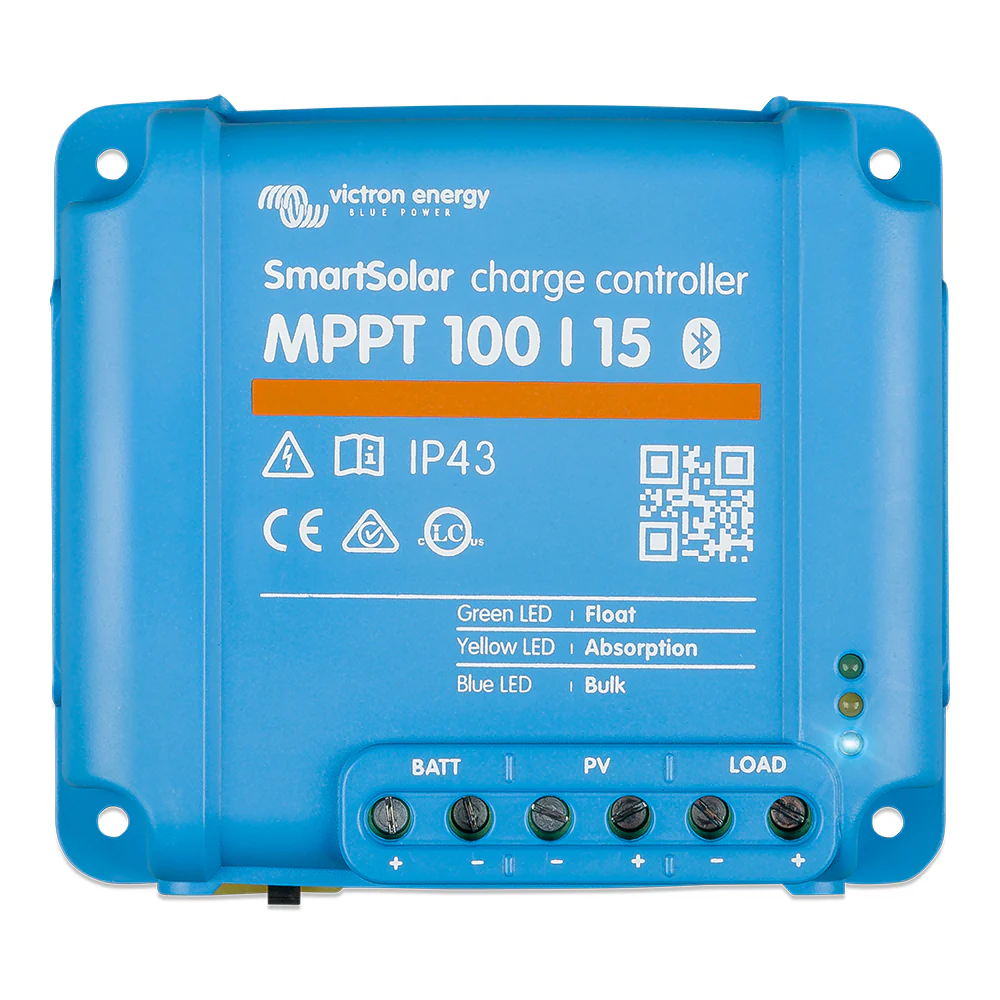

Victron Energy SmartSolar MPPT Charge Controller - 100V - 15AMP - UL Approved [SCC110015060R]

Victron Energy SmartSolar MPPT Charge Controller - 100V - 15AMP - UL Approved [SCC110015060R]

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy SmartSolar MPPT Charge Controller - 100V - 15AMP - UL Approved [SCC110015060R] Product Specifications

Electrical Specifications

• Charger Input Voltage: 18–100V DC

• Charger Output Voltage: 12V / 24V DC (auto-selecting)

• Charger Output – Amps: 15A

• Charging Banks: 1

• Maximum PV Input Power:

  • 12V system: up to 220W

  • 24V system: up to 440W

• Max PV Short Circuit Current: 20A

• Max PV Open Circuit Voltage: 100V

• Battery Chemistry: Lead-acid (AGM, GEL, Flooded), Lithium (LiFePO₄)

• Efficiency: Up to 98%

Key Features

• Ultra-fast MPPT technology maximizes solar energy yield

• Bluetooth Smart built-in for wireless setup and monitoring

• Supports intelligent battery management with adaptive charge algorithms

• Fully protected against over-temperature, overcurrent, reverse polarity, and short-circuits

• Ideal for small off-grid, RV, or marine solar systems

• Optional remote access via GX devices or Victron VRM portal

Physical & Environmental

• Portable: No

• Enclosure: Rugged, fanless aluminum housing

• Cooling: Passive cooling via natural convection

• Operating Temperature: –30°C to +60°C (derates above 40°C)

• Box Dimensions: 3" H × 6" W × 6" L

• Weight: 1.2 lbs

• Mounting: Wall or panel mount

• UPC: 8719076040811

Product Manual

Quick Guide (pdf)
Brochure (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
