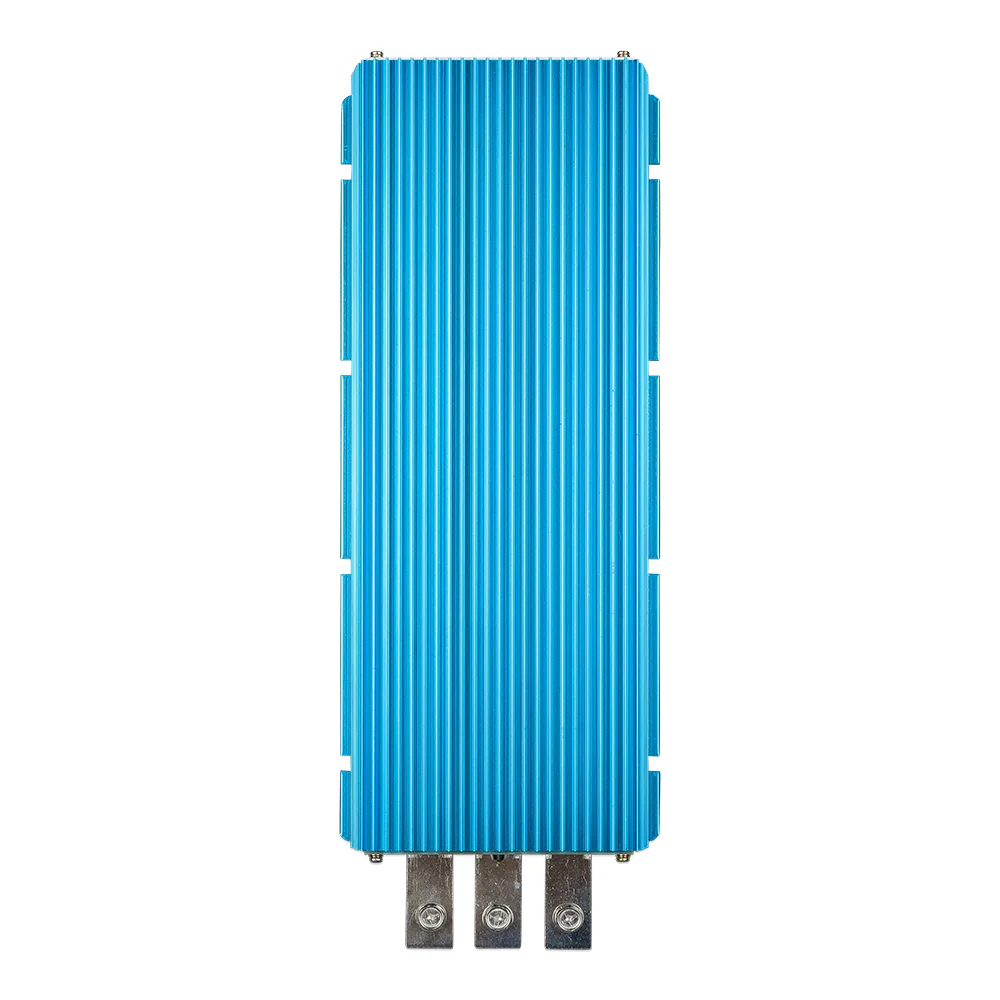

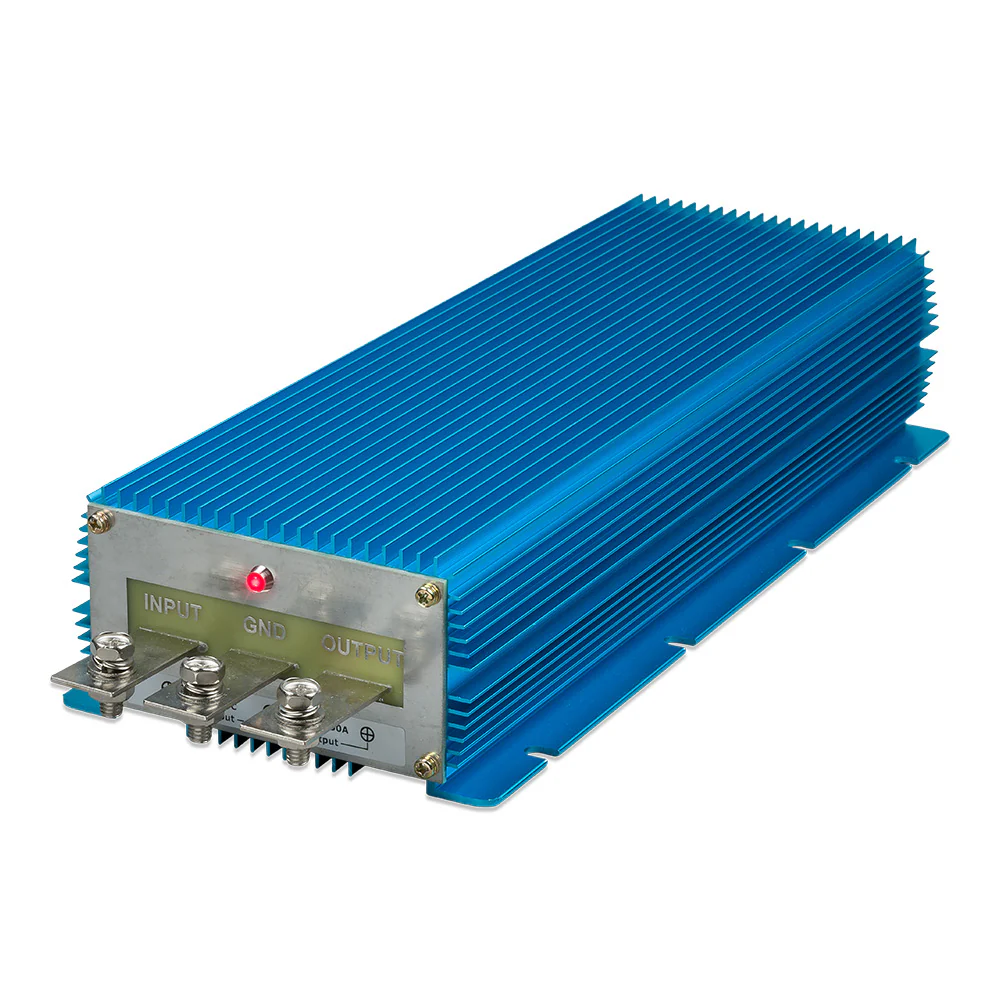

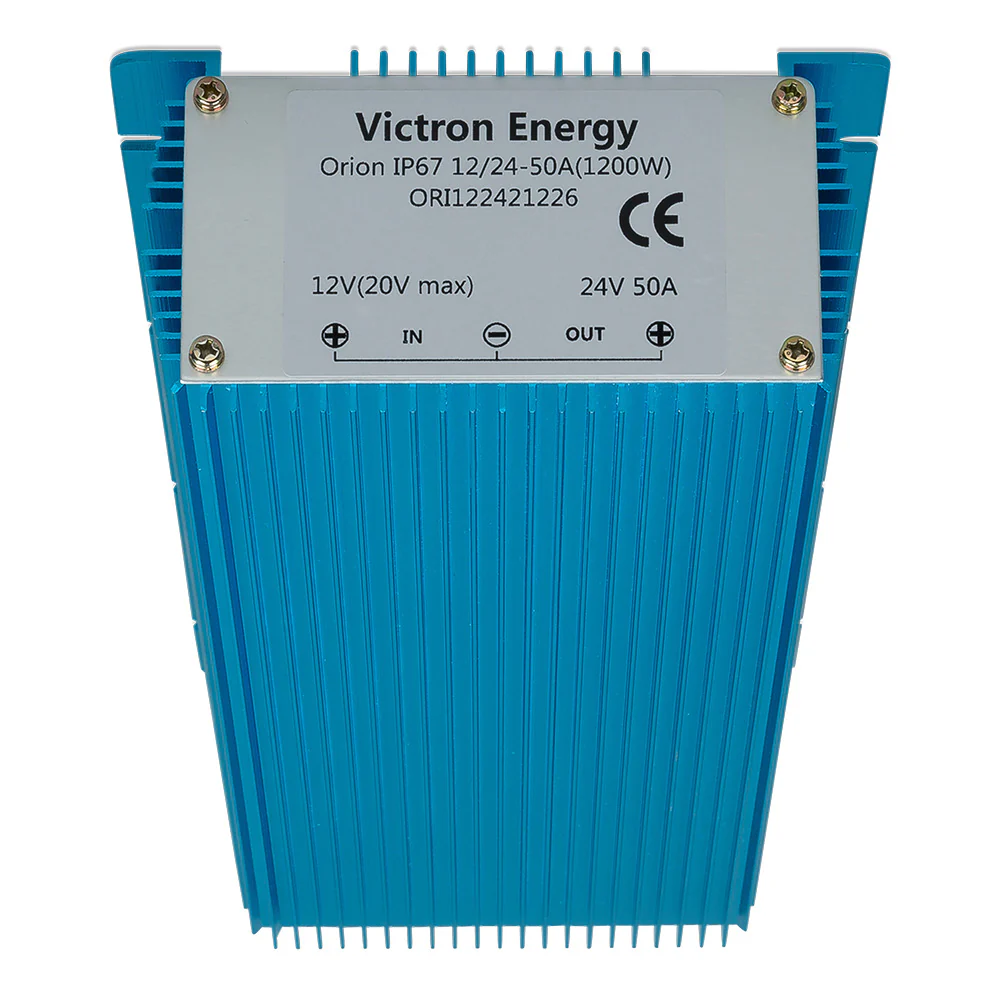

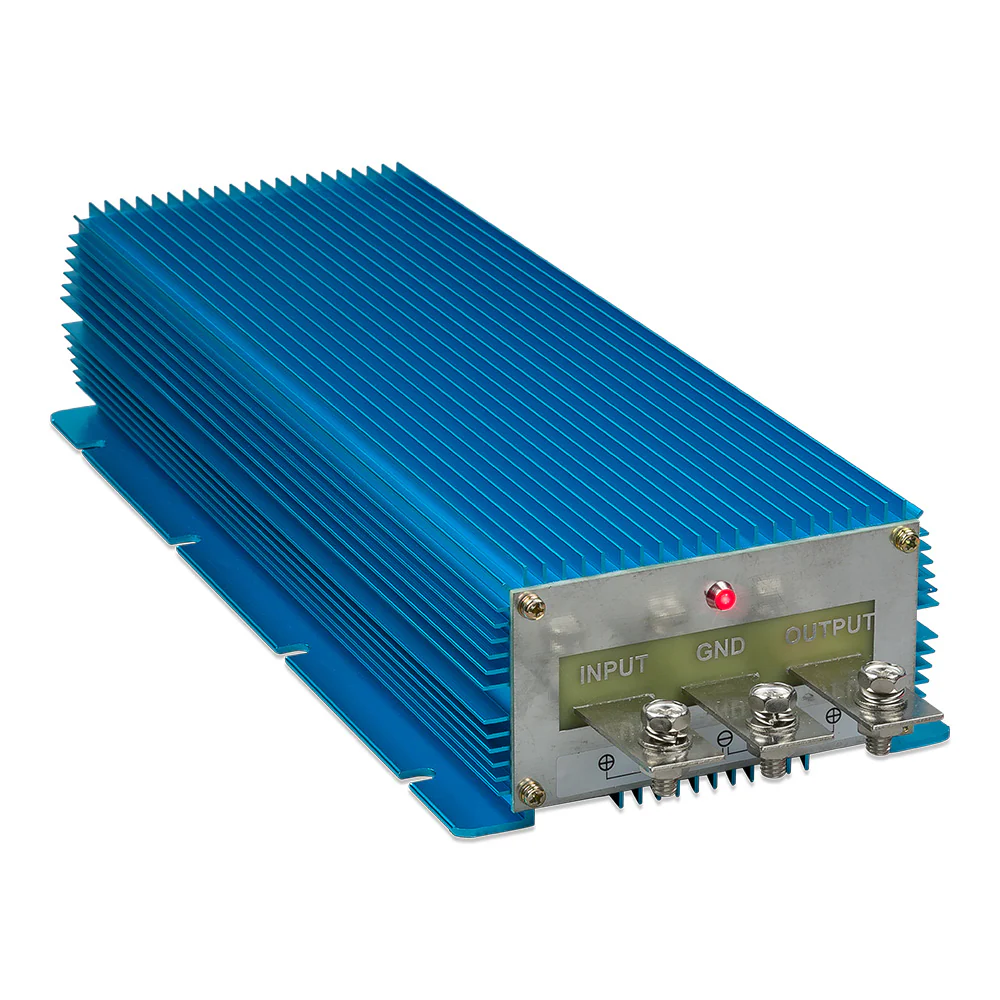

Victron Energy Orion IP67 DC-DC Converter 12/24-50A - 1200W [ORI122421226]

Victron Energy Orion IP67 DC-DC Converter 12/24-50A - 1200W [ORI122421226]

Completely encapsulated: waterproof, shockproof, and ignition-protected. Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin.

Completely encapsulated: waterproof, shockproof, and ignition protected

Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin.

Extra-long input and output cables

Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability-increasing feature in an area where an IP67 protection grade is needed.

Wide input voltage range

With a 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to the same battery.

Protected against overheating

It can be used in a hot environment such as a machine room.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy Orion IP67 DC-DC Converter 12/24-50A - 1200W [ORI122421226] Product Specifications

Power Specifications:

• Input Voltage Range: 10 – 17 VDC

• Output Voltage: 24.2 VDC fixed

• Output Current: 50 A

• Output Power: 1200 W

• Efficiency: 95%

• No-load Power Consumption: < 80 mA

• Galvanic Isolation: No (non-isolated)

Environmental Ratings:

• Operating Temperature: -40 °C to +60 °C (derating from 40 °C)

• Humidity: Max 95% (non-condensing)

• Ingress Protection: IP67 (fully waterproof, dustproof)

Physical Specifications:

• Dimensions (h x w x d): 178 x 126 x 65 mm

• Weight: 1.8 kg

• Enclosure Material: Cast aluminum with epoxy powder coating

Features:

• Rugged, sealed design suitable for marine, automotive, and off-grid environments

• Over-temperature protection

• Short circuit proof

• Remote on/off capability

Product Manual

Brochure (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
