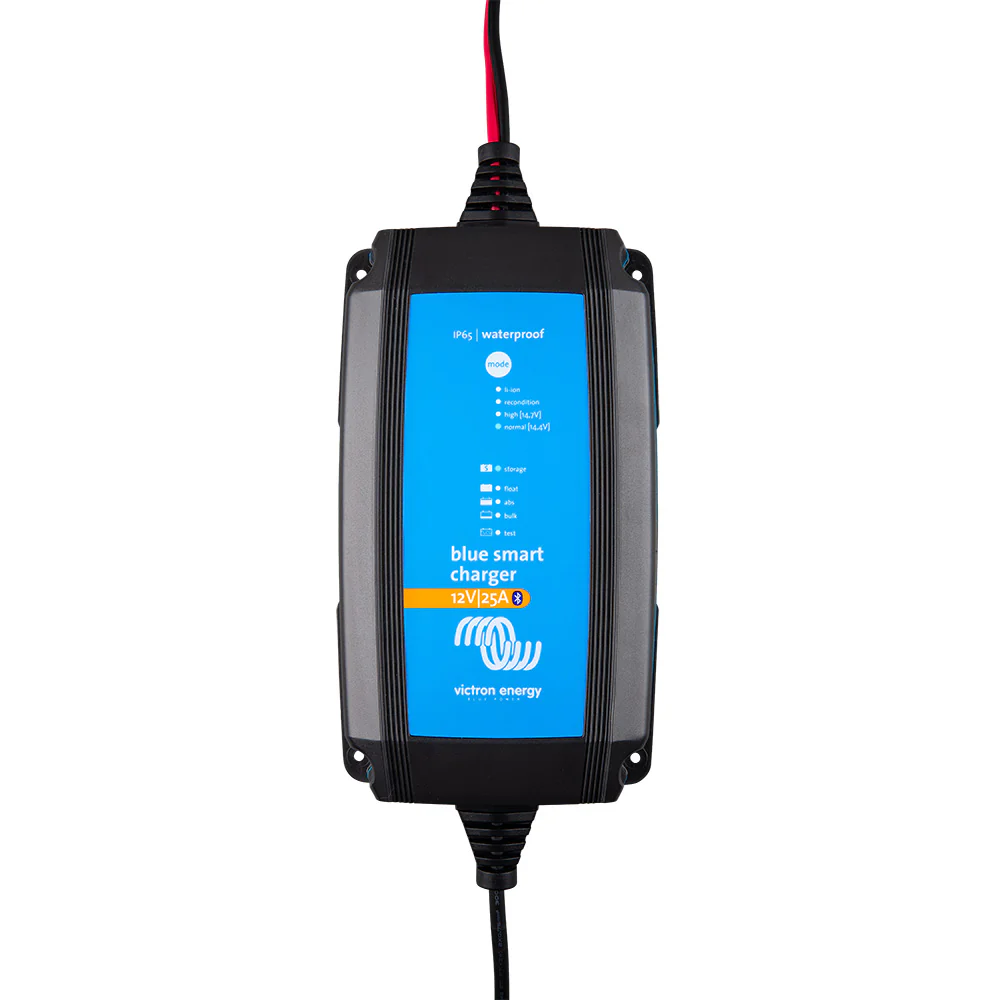

Victron Energy BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P [BPC122531124]

Victron Energy BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P [BPC122531124]

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and on motor vehicles, such as classic cars, motorbikes, boats, and campervans.

The Battery Is Charged, Smartly... To Perfect Condition

The seven-step charging algorithm gets the most out of a battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and gives it a longer life.

Recovery of Deeply-Discharged ‘Dead’ Batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Connect the Battery with Ease

The charger comes with both crocodile clips and M8 eyelets, making it easy to connect to the battery. If users wish, they can leave it permanently connected.

Check the Status of the Battery Remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Product Specifications

Victron Energy BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P [BPC122531124] Product Specifications

Specifications:

• Input Voltage: 120 VAC
• Efficiency: 94%
• Standby Power Consumption: 0.5W
• Minimum Battery Voltage: Starts charging from down to 0V
• Charge Voltage 'Absorption': Normal: 14.4V High: 14.7V Li-ion: 12.4V
• Charge Voltage 'Float': Normal: 13.8V High: 13.8V Li-ion: 13.5V
• Charge Voltage 'Storage': Normal: 13.2V High: 13.2V Li-ion: 13.5V
• Charge Current: 25A
• Temperature Compensation (Lead-Acid Batteries Only): 16 mV/degrees C (18mV/degrees F
• Can Be Used as Power Supply: Yes
• Back Curreny Drain: 0.7Ah/month  (1mA)
• Protection: Reverse polarity; Output short circuit; Over temperature
• Operating Temp. Range: -40 to +60 degrees C (full rated output up to 30 degrees C) -40  to +140 degrees F (full rated output up to 90 degrees F)
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Battery-Connection: Black and red cable of 1.5 meters (4.9 feet)
• 120 V Ac-Connection: Cable of 1.8 meters (5.9 feet) with US NEMA 1-15 plug
• Protection Category: IP65 (splash and dust proof, and ignition protected)
• Weight: 0,9kg (2lbs)
• Dimensions (H x W x D): 12/25: 60 x 105 x190mm 2.3 x 4.1x 7.5 inches

Standards:

• Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

Once purchased and in use, this product is non-returnable.

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 25a
• Charger Output Voltage: 12v
• Charging Banks: 1
• Portable: Yes
• Box Dimensions: 4"H x 8"W x 16"L WT: 4.8 lbs
• UPC: 8719076060871

Product Manual

Quick Guide (pdf)
Owner's Manual (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.

Product FAQs

N/A
