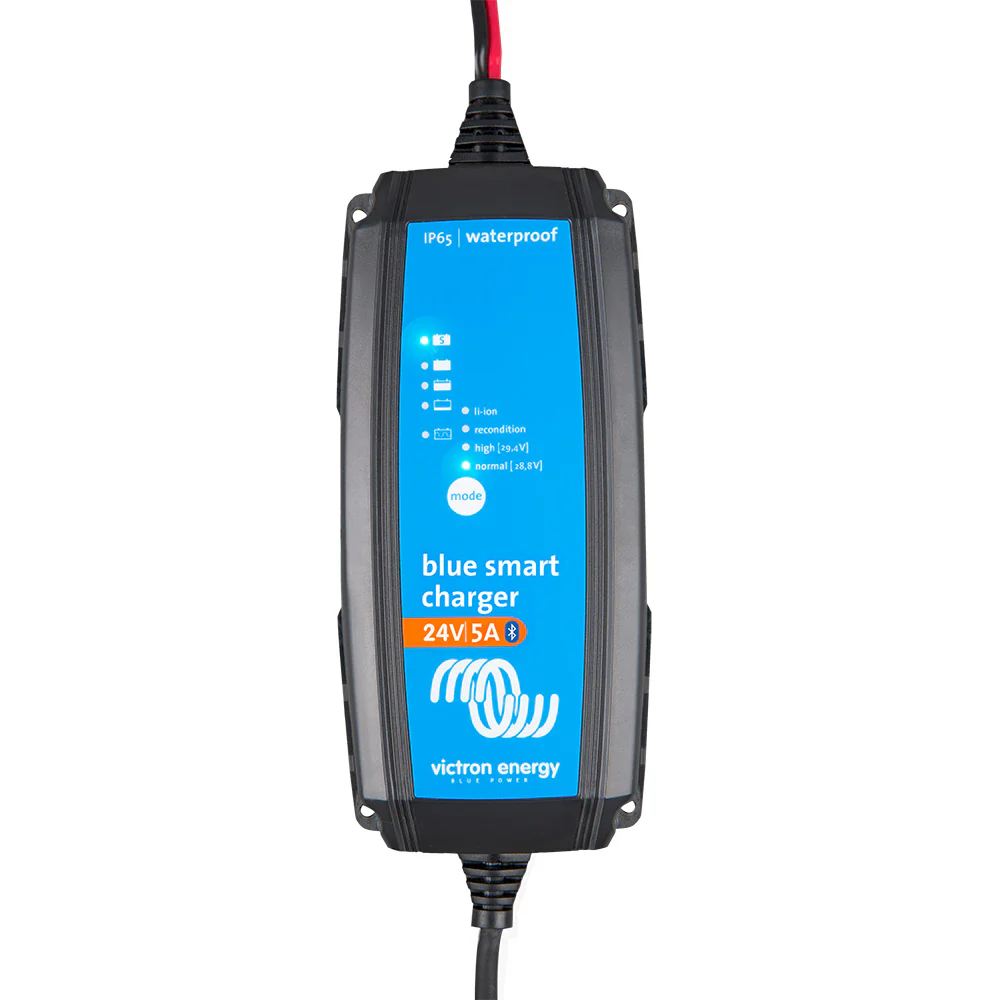

Victron Energy Blue Smart IP65 Charger 24/5 (1) 120V NEMA 1-15P UL Approved [BPC240531104R]

Victron Energy Blue Smart IP65 Charger 24/5 (1) 120V NEMA 1-15P UL Approved [BPC240531104R]

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats, and camper vans.

The battery is charged, smartly... to perfect condition

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and longer life.

Recovery of deeply-discharged 'dead' batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Regular charging will then be resumed as soon as the sufficient voltage across the battery terminals.

Connect the battery with ease

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently attached.

Check the status of your battery remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Product Specifications

Victron Energy Blue Smart IP65 Charger 24/5 (1) 120V NEMA 1-15P UL Approved [BPC240531104R] Product Specifications

Power & Charging:

• Input Voltage: 100–250 VAC (120 V version)

• Nominal Output: 24 V DC / 5 A

• Efficiency: Up to 95%

• Standby Power Usage: ~0.5 W

• Battery Charging Stages: 7-step algorithm including BULK, ABSORPTION, FLOAT, STORAGE, and RECONDITION

• Deep-Discharge Recovery: Automatically reconditions deeply discharged batteries

• Temperature Compensation: Automatic for lead-acid batteries

• Minimum Start Voltage: Charges even from 0 V battery voltage

Features & Protections:

• Built-in Bluetooth: Monitor and configure via VictronConnect

• IP65 Rated: Dust-tight and water-resistant

• ECO Mode: Ultra-low idle draw (<0.5 W)

• Protection Functions: Reverse polarity, short-circuit, over-temperature

• Housing: Rugged ABS plastic, silent (no fan)

Connections:

• Battery Terminals: M8 eyelets and crocodile clips included

• AC Plug: NEMA 1‑15P (120 V US style)

• LED Indicators: Status display for charge phases and faults

Physical & Environmental:

• Dimensions: 47 × 95 × 190 mm

• Weight: ~0.9 kg

• Operating Temp: –30 °C to +50 °C (full performance to 30 °C)

• Humidity: Up to 95%, non-condensing

Standards & Warranty:

• Certifications: UL 1236, CSA C22.2, EN 60335-1/-2-29, EN 55014-1/-2, EN 61000-6-1/‑2/‑3

• Warranty: 5 years (manufacturer specified)

Product Manual

Quick Guide (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
