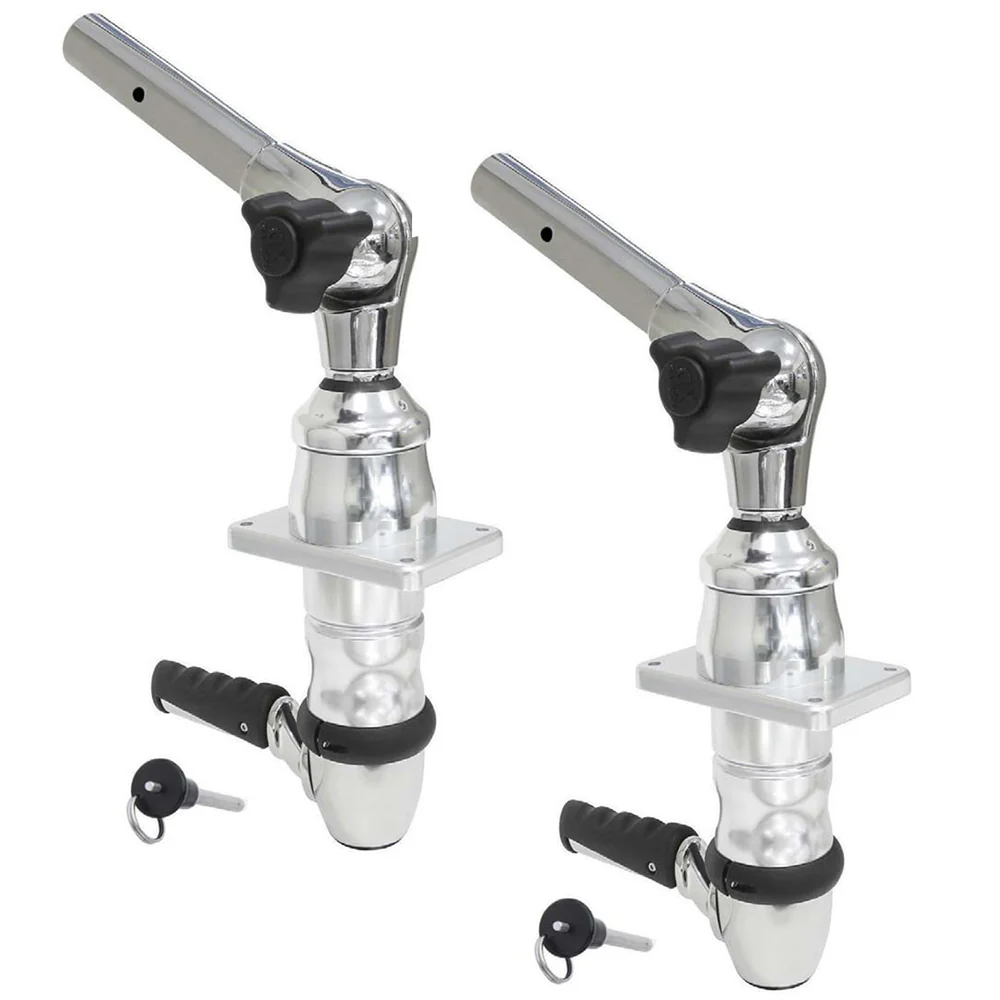

Tigress XD Top Mount [88850]

Tigress XD Top Mount [88850]

For use on sport fishing boats up to 40 feet.

Features:

• Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
• Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using adapter
• Fits Tigress and other industry standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
• 24 adjustable/locking system positions (15° increments) featuring Tigress XD 316 Stainless Steel design
• 19 upper-arm angle/locking positions (10° increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
• User friendly underside lever actuation, with 8 optional indexable set-up positions
• Standard ¼” diameter locking stainless steel push-in-pin for outriggers
• Fits through all standard 3” diameter mounting plates and hard top holes
• Sold as pair
• 3-Year Limited Warranty

Product Specifications

Tigress XD Top Mount [88850] Product Specifications

Technical Specifications

Model: 88850
Brand: Tigress

Product Type: XD Top Mount Outrigger Base (pair)

Boat Compatibility: Suitable for sportfishing boats up to 40 ft

Material & Construction:

• Built with extreme-duty 316 stainless steel and anodized aluminum with sealed UV-resistance

Mounting & Fitment:

• Fits Tigress and industry-standard 4″ × 6″ mounting plates using four 5/16″ fasteners

• Compatible with all Tigress XD 1½″ outriggers; can adapt to 1⅛″ brutted outriggers

• Invertible handle design allows mounting on soft or hard tops up to 2″ thick

• Fits through standard 3″ diameter hard‑top mounting holes

Adjustment & Locking Mechanics:

• 24 horizontal positions with 15° increments; 19 upper-arm angle positions in 10° increments, using stainless-steel detent design

• Ergonomic UV-resistant 3‑lobe knob and polished stainless lever; lever is invertible for tight clearance scenarios, and includes 8 indexable underside positions

• Standard ¼″ stainless steel locking pin secures outrigger tube

Warranty: 3‑Year Limited Warranty

Packaging: Sold as a pair

Key Features & Benefits

• Robust & Durable: Built with marine-grade materials to withstand offshore conditions

• Highly Adjustable: Extensive horizontal and angular positions for optimal rigging and stowage

• Versatile Fit: Invertible handle works with thick hardtops or soft tops up to 2″ thick

• User-Friendly Operation: Controlled detent stops, ergonomic handles, and quick lock mechanism

• Complete Mount: Ready to pair with Tigress XD outriggers—no extra adapters required

Product Manual

Product Guide

Product Warranty

Tigress Warranty

3‑Year Limited Warranty

Exclusions from Warranty Coverage

This Limited Warranty does not apply to:

• (a) Improper maintenance, repair, installation, handling, packaging, transportation, storage, operation, or use not in compliance with Seller’s instructions

• (b) Product alteration, modification, or repair by anyone other than Seller or those specifically authorized by Seller

• (c) Accidents, contamination, weather exposure, foreign object damage, abuse, neglect, or mishandling after delivery

• (d) Failures caused by other Seller-supplied products not under warranty or by any third-party hardware/software

• (e) Use of counterfeit or non-approved replacement parts

• (f) Consumable products or components with a normal lifespan shorter than the warranty period

• (g) Products not manufactured by the Seller, even if included as components in Seller’s assemblies

Product FAQs

N/A
