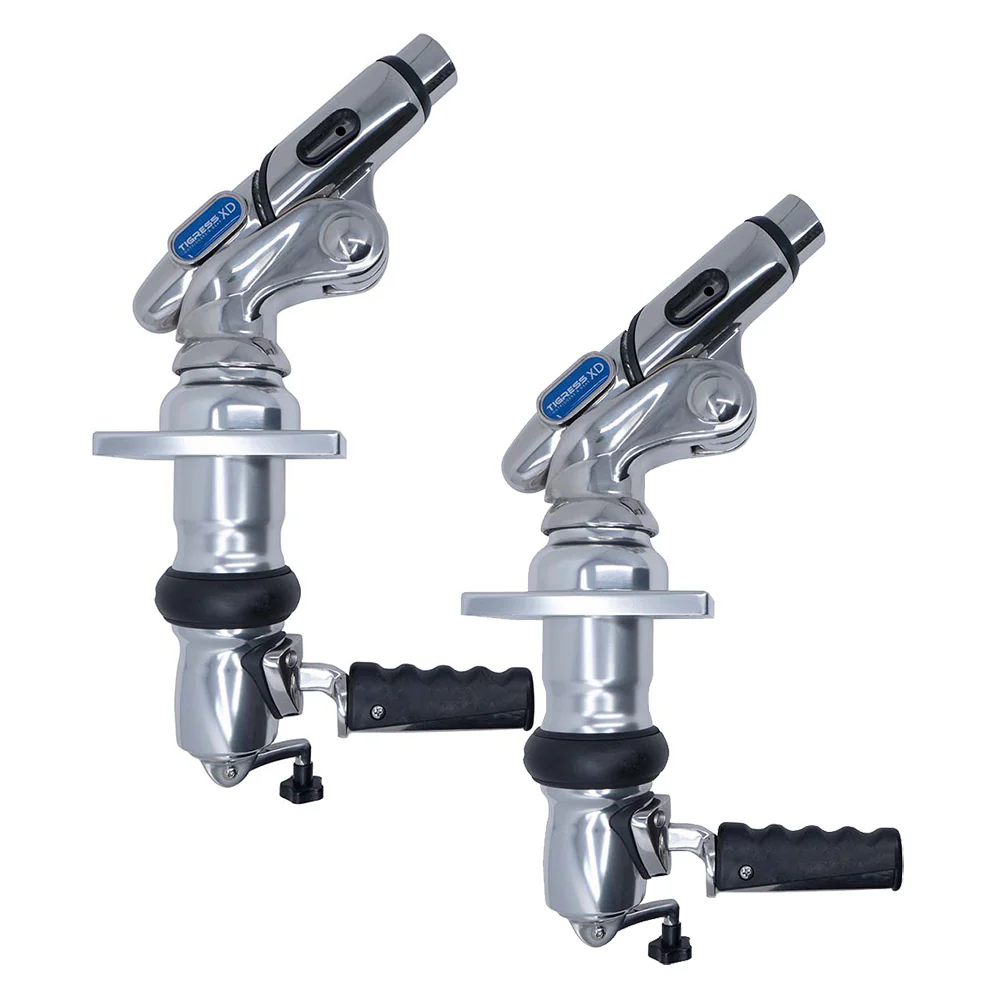

Tigress XD Crank Top Mount [88880]

Tigress XD Crank Top Mount [88880]

Features:

• For use on sport fishing boats up to 50 feet
• Adjustable Upper Arm with ‘Run’ & ‘Laydown’ position Stops
• User-friendly Folding Crank Handle with Integrated Drive Brake
• Upper-Arm adjusting Ball-bearing drive system, with Integrated Balance Spring-assist
• Extreme Duty Top Plate, Upper Arm, and Housings for Outriggers up to 22ft in length
• Stainless-Steel & Bronze bushed Head pivot for Maximum trolling strength & durability
• Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
• Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using an adapter
• Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316L Stainless Steel and anodized aluminum and sealed construction with UV protection
• 24 adjustable/locking system positions featuring Tigress XD 316L Stainless Steel design
• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops
• User-friendly underside lever actuation, with 8 optional indexable set-up positions
• Fits through all standard 3” diameter mounting plates and hardtop holes
• Sold as pair
• 3-Year Limited Warranty

Product Specifications

Tigress XD Crank Top Mount [88880] Product Specifications

Technical Specifications:

Model: 88880
Brand: Tigress

Product Type: XD Crank Top Mount (pair) for Telescoping Outriggers

Boat Size Compatibility: Designed for sport fishing boats up to 50 ft

Mounting Dimensions:

• Fits standard 4″ × 6″ mounting plates with four 5/16″ fasteners

• Mounts through 3″ diameter hard-top holes

Mechanism & Adjustability:

• Upper-arm crank with folding handle and integrated drive brake

• Ball-bearing drive and balance spring assist for smooth operation

• Includes both “Run” and “Laydown” stops for easy transition to transport/storage

• 24 locking positions for precision outrigger angle adjustment with stainless lever and eight underside indexable positions

Construction Materials:

• Machined from 316L stainless steel and anodized aluminum

• Sealed, UV-resistant construction with stainless-bronze bushed pivot

Outrigger Compatibility:

• Accepts Tigress XD 1½″ butt-diameter outriggers

• Adaptor available for 1⅛″ XD poles

Unique Features:

• Invertible handle accommodates both soft and thick tops (up to 2″)

Warranty: 3‑Year Limited Warranty

Key Benefits:

• Built tough & smooth: Designed for rugged offshore use with precision operation

• Highly adjustable: Multiple angle settings and travel stops make it versatile

• Professional fit: Compatible with industry-standard mounting plates—ideal upgrade for serious anglers

Product Manual

Product Guide

Product Warranty

Tigress Warranty

3-Year Limited Warranty

Exclusions from Warranty Coverage

This Limited Warranty does not apply to:

• (a) Improper maintenance, repair, installation, handling, packaging, transportation, storage, operation, or use not in compliance with Seller’s instructions

• (b) Product alteration, modification, or repair by anyone other than Seller or those specifically authorized by Seller

• (c) Accidents, contamination, weather exposure, foreign object damage, abuse, neglect, or mishandling after delivery

• (d) Failures caused by other Seller-supplied products not under warranty or by any third-party hardware/software

• (e) Use of counterfeit or non-approved replacement parts

• (f) Consumable products or components with a normal lifespan shorter than the warranty period

• (g) Products not manufactured by the Seller, even if included as components in Seller’s assemblies
