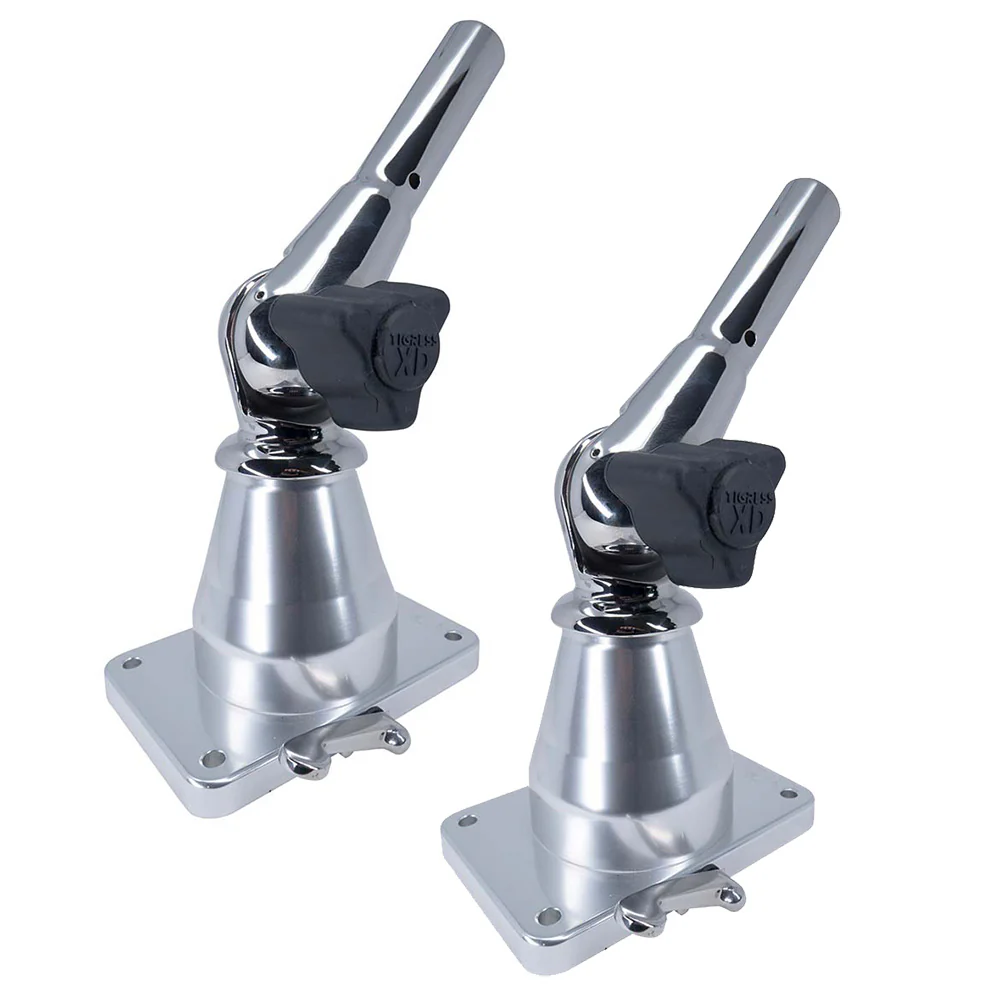

Tigress XD Bay Series Top Mount [88870]

Tigress XD Bay Series Top Mount [88870]

Features:

• For use on sport fishing boats up to 40 feet
• Accepts all Tigress XD 1-1/8” butt diameter Outriggers
• 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
• Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
• 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
• User-friendly Side Operating Lever
• Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
• 5/16” through x 3.000” x 5.000” 4-bolt pattern
• Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
• Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
• 3-Year Limited Warranty

Product Specifications

Tigress XD Bay Series Top Mount [88870] Product Specifications

Technical Specifications:

Model: 88870
Brand: Tigress

Product Type: XD Bay Series Top Mount for Telescoping Outriggers

Compatibility:

• Designed for sportfishing boats up to 40 ft

• Accepts all Tigress XD 1⅛″ (28 mm) butt-diameter outriggers

Arm Angle & Locking:

• 19° upper‑arm angle lock positions at 10° increments for trailering and bridge clearance

• 24-position tilt adjustment (each 15° increments) via Tigress XD 316L stainless-steel locking design with heavy-duty spring return

Adjustment Controls:

• Large UV-resistant tri-lobe knob for elevation adjustments

• Convenient side-operating lever for tilt control

Construction & Mounting:

• Built with 316L stainless steel and anodized aluminum for durable, sealed, UV-resistant performance

• Includes 14.5 mm thick aluminum baseplate with ambidextrous mounting

• Mounts on industry standard 4″ × 6″ plate with four 5/16″ fasteners; bolt pattern 5/16″ × 3″ × 5″

Finish: Powder-coated black and anodized aluminum

Warranty: 3-year Limited Warranty

Key Features & Benefits:

• Versatile deployment: Optimized for both fishing and trailering/bridging positions

• Heavy-duty build: Marine-grade materials withstand offshore conditions

• User-friendly controls: Ergonomic knob and lever for quick adjustment

• Universal fit: Compatible with standard XD outriggers and mounting plates

Product Manual

Product Guide

Product Warranty

Tigress Warranty

3-year Limited Warranty

Exclusions from Warranty Coverage

This Limited Warranty does not apply to:

• (a) Improper maintenance, repair, installation, handling, packaging, transportation, storage, operation, or use not in compliance with Seller’s instructions

• (b) Product alteration, modification, or repair by anyone other than Seller or those specifically authorized by Seller

• (c) Accidents, contamination, weather exposure, foreign object damage, abuse, neglect, or mishandling after delivery

• (d) Failures caused by other Seller-supplied products not under warranty or by any third-party hardware/software

• (e) Use of counterfeit or non-approved replacement parts

• (f) Consumable products or components with a normal lifespan shorter than the warranty period

• (g) Products not manufactured by the Seller, even if included as components in Seller’s assemblies

Product FAQs

N/A
