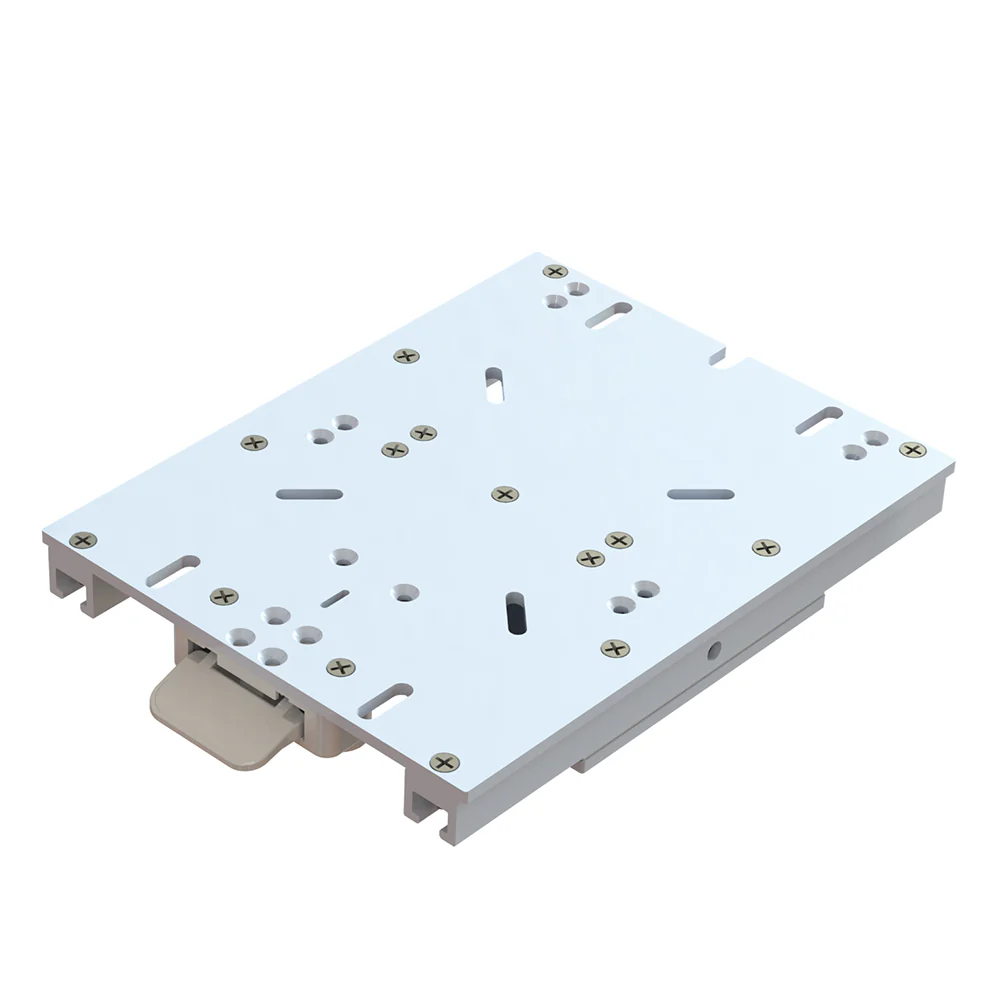

TACO Low Profile Adjustable Seat Slide [M20-1013A]

TACO Low Profile Adjustable Seat Slide [M20-1013A]

This low-profile design provides frictionless operation and is easily adaptable for a multitude of marine applications. Its high-strength polymer glides provide the smooth movement with a durable locking action. It comes with a front-mounted activation lever, which is easily accessible in all seven positions when seated. The complete kit includes the housing assembly, mounting plate, fasteners, and installation instructions – making it the perfect all-in-one seat slide package.

Features:

• Meets ABYC H31 testing standards
• Precision-machined 6000-series aluminum chassis
• High-strength polymer glides provide self-lubricated, rattle-free, smooth operation
• Features seven adjustable, equally spaced positions with 5-1/2” of travel
• Secure fit with universal mounting bolt pattern on both pedestal and box applications
• Easy installation and detachment with modular mounting plate
• Front activation lever that slides with the seat for ease of use
• Ideal for seats 23” to 28" wide
• Made in the USA
• 3-year limited warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

TACO Low Profile Adjustable Seat Slide [M20-1013A] Product Specifications

Technical Specifications:

• Model – M20-1013A

• Brand – TACO Marine

• Product Type – Low Profile Manual Seat Slide

• Function – Allows forward/backward adjustment of boat seating

• Design – Low-profile design ideal for limited clearance installations

• Material:
   • Anodized aluminum track and base
   • Stainless steel components for corrosion resistance

• Finish – Clear anodized aluminum

• Slide Travel Range – Approx. 5"–6" of adjustment

• Overall Dimensions (approx.):
   • Width: ~7"
   • Length: ~13"
   • Height: ~1.5" (low profile for compact installs)

• Mechanism:
   • Manual operation with locking lever
   • Slide locks securely in position

• Mount Compatibility:
   • Fits most standard marine seat bases and pedestals
   • Pre-drilled mounting holes for easy installation

• Applications:
   • Helm chairs
   • Companion seats
   • Leaning posts with adjustable base requirements

• Installation Hardware: May be included or sold separately (verify with distributor)

• Weight: Approx. 6–8 lbs

• Corrosion Resistance:
   • Yes – built for saltwater marine use

• Warranty: 3-Year Limited Warranty

Features:

• Space-saving low-profile design for tight helm or cockpit areas

• Smooth manual slide adjustment for optimal comfort

• Durable marine-grade construction for long life in harsh environments

• Ideal for OEM or retrofit seating applications
