TACO GS-500 Grand Slam Outrigger Mounts *Only Accepts CF-HD Poles [GS-500]

TACO GS-500 Grand Slam Outrigger Mounts *Only Accepts CF-HD Poles [GS-500]

When it comes to hardcore offshore sport fishing, the Pro Series GS-500 Outrigger Mount is the most durable, attractive and functional base in the industry. The innovative design of the GS-500 enables anglers to adjust the lift and rotation of outrigger poles from the safety of the deck. This mount also features our patent-pending Twist & Lock pole connection and pairs exclusively with our award-winning Carbon Fiber Tele-Outriggers up to 24’ long.

Features & Benefits:

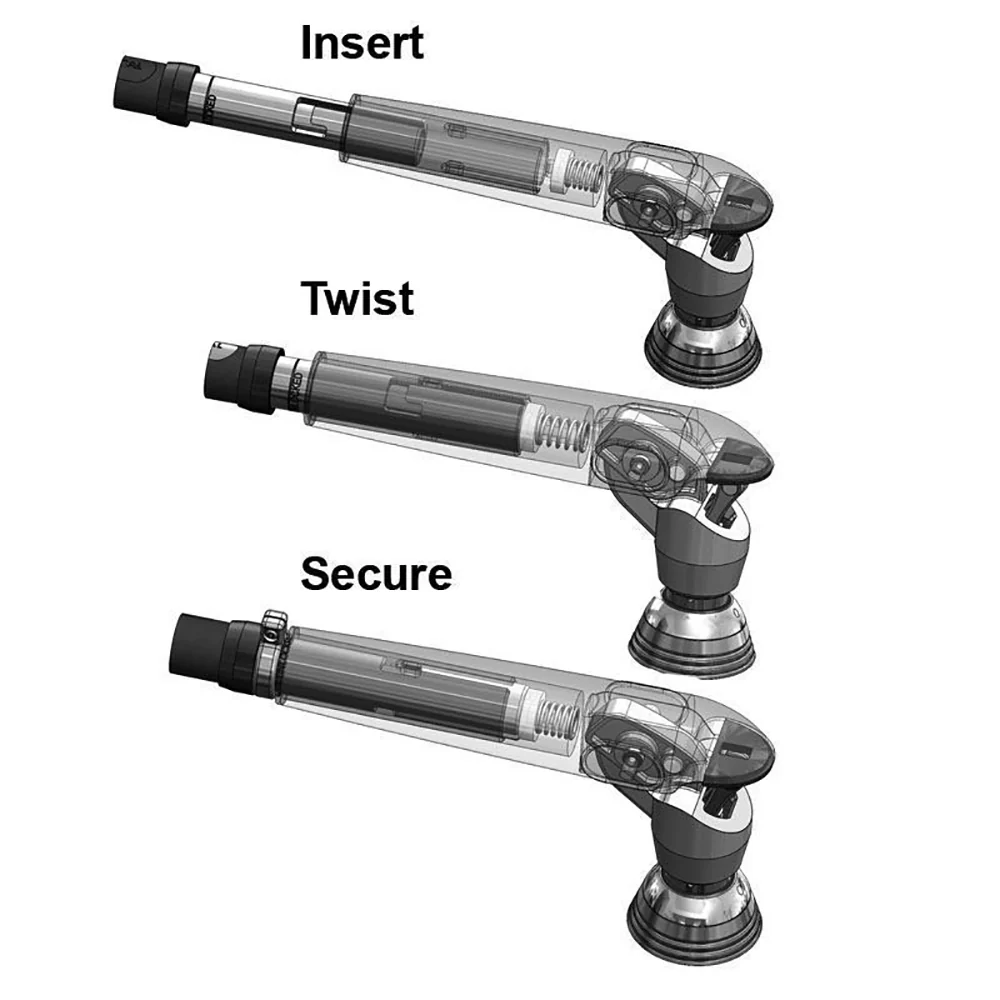

• Twist & Lock Arm design for easier, more secure pole connection
• Eliminates the need for pins or bolts when securing outrigger poles
• Rotate and lift outrigger poles from the safety of the deck
• Heavy-duty, ergonomically shaped outward rotation handle
• Robust, dual-detented lifting crank handle locks flush into base
• Ideal for boats from 32 to 50-plus feet
• Dredge load tested to handle a full, professional fishing spread
• Absorbs the torque and whip created by outrigger poles
• Constructed from cast stainless-steel and machined aluminum for a stronger, lighter base
• Includes matching 6”x 8"x ½” thick oval backing plates
• Safety detents prevent uncontrolled rotation when deploying outrigger poles
• Allows a controlled 180° rotation, if needed
• Locking head eliminates downward creep of outrigger poles
• No port or starboard designation
• Includes all mounting hardware for easy installation
• Pairs with 6º Wedge Plates (WP-500-6), sold separately
• Base hole pattern matches all TACO Marine Grand Slam models – making upgrades possible
• 3-year limited warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

TACO GS-500 Grand Slam Outrigger Mounts *Only Accepts CF-HD Poles [GS-500] Product Specifications

Technical Specifications:

• Model – GS-500

• Brand – TACO Marine

• Product Type – Heavy-Duty Grand Slam Outrigger Mounts

• Compatibility –
   • Exclusively accepts TACO Carbon Fiber CF-HD outrigger poles
   • Not compatible with aluminum or standard poles

• Mounting Location – Hardtops only

• Material:
   • Anodized aluminum body
   • Stainless steel internal components

• Finish – Polished silver anodized

• Rotation:
   • 360° horizontal rotation
   • Vertical lift adjustment from underneath the hardtop

• Operation:
   • Controlled entirely from below the hardtop – no need to climb
   • Strong internal locking system for position holding under load

• Recommended Boat Size:
   • Designed for boats 30' to 50'+, ideal for offshore sportfishing

• Base Diameter: Approx. 4.5"

• Pole Socket Size:
   • Custom-designed to fit CF-HD (Carbon Fiber Heavy-Duty) poles only

• Mounting Hardware:
   • Installation hardware typically included
   • Backing plates recommended for high-load use

• Weight: Approx. 18–20 lbs per pair

• Sold As: Pair (Port and Starboard)

• Warranty: 3-Year Limited Warranty

Features:

• Built to handle the demands of large offshore trolling spreads

• All adjustments made safely from the deck

• Designed to maximize strength and minimize flex with CF-HD poles

• Premium materials for long life in harsh saltwater environments
