TACO Grand Slam 860 Electric VHF Antenna Mount [GS-860]

TACO Grand Slam 860 Electric VHF Antenna Mount [GS-860]

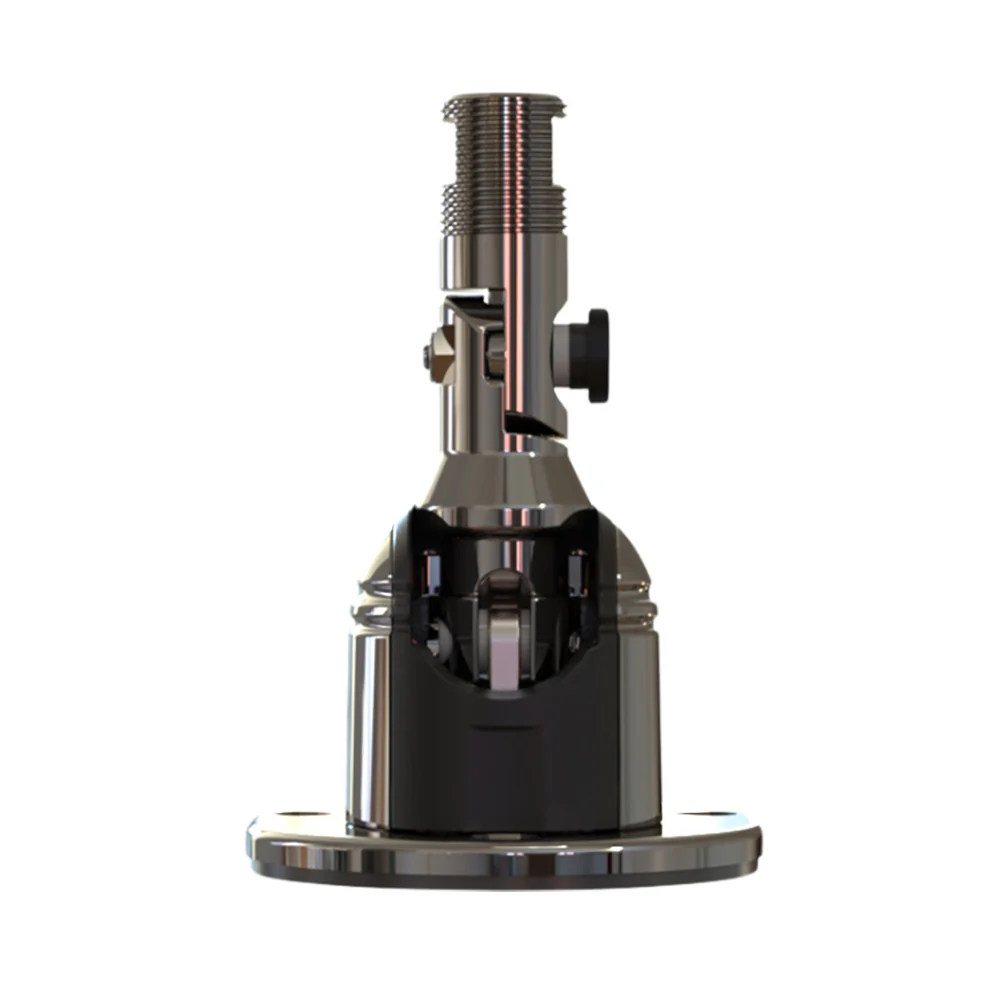

The Grand Slam 850 Electric VHF Antenna Mount! Designed with safety and innovation in mind, boaters can adjust the position of their VHF antenna with the simple push of a button from the comfort of their helm. The GS-850 is a fully electric unit with hidden wires inside the hardtop. This mount easily installs to the surface of the hardtop and fits all top thicknesses.

Features:

• Standard 1”-14 thread (male) shaft to accept standard VHF antennas up to 8'
• No under-mount clearance required
• Machined / Anodized aluminum body with a light brushed finish
• Threaded shaft for consistent lift and descent
• Brass bearings for smooth operation
• Features breakaway pin for manual operation
• Includes 6” lead of 20-gauge wire from the base
• 12-volt DC power supply for lift and descent
• Accepts 3A fuse in the main +12 VDC power feed (not included)
• Pairs with Backing Plate (BP-0850AEY), which is sold separately
• Pairs with 6º Wedge Plate (WP-850-950), which is sold separately
• Sold individually
• Made in the USA
• 1-year limited warranty

Product Specifications

TACO Grand Slam 860 Electric VHF Antenna Mount [GS-860] Product Specifications

Technical Specifications:

• Model – GS-860

• Brand – TACO Marine

• Product Type – Electric VHF Antenna Mount

• Application – For raising and lowering VHF antennas mounted to hardtops

• Operation – Electric actuation via helm-mounted switch

• Mounting Location – Hardtops on center consoles, sportfishers, or express boats

• Material –
   • High-strength anodized aluminum housing
   • Stainless steel components for durability in saltwater environments

• Finish – Silver anodized

• Power Supply – 12V DC

• Control Switch – Included (momentary rocker-style switch)

• Cable/Wiring – Pre-wired with marine-grade, sealed cable

• Rotation Range – Raises antenna to upright position and lowers it flat with the push of a button

• Mount Compatibility – Designed for standard VHF antennas with 1" x 14 threads

• Base Diameter – Approx. 4.5"

• Waterproof Rating – Sealed motor housing (IP-rated for marine use)

• Weight – 7.2 lbs (total assembly)

• Installation Hardware – Included

• Recommended Boat Size – Ideal for boats up to 50 ft

Features:

• One-touch operation to raise/lower your VHF antenna

• No need to climb to access antennas—improves safety and convenience

• Built to withstand rough marine environments

• Perfect for boats that pass under bridges or use dry stack storage

• Works with most major VHF antenna brands (1" x 14 standard threads)
