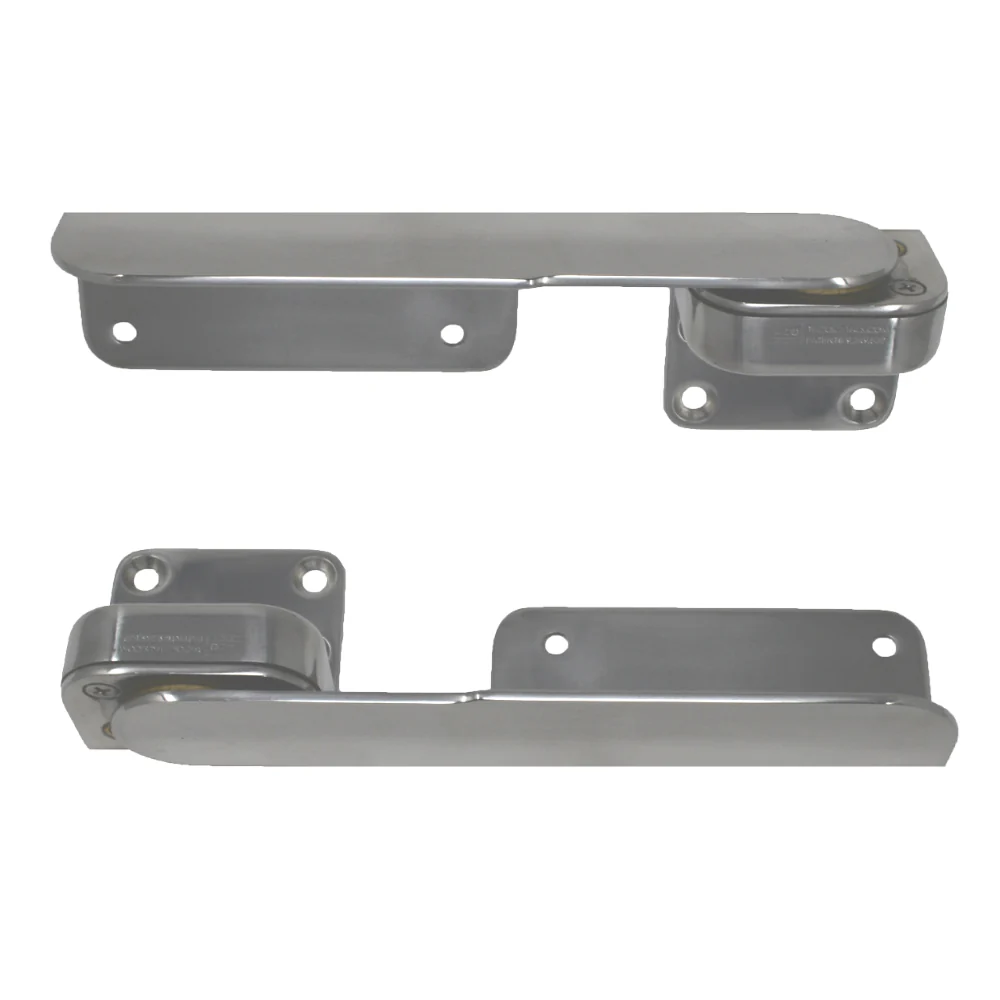

TACO Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair [H25-0016]

TACO Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair [H25-0016]

Constructed from high-grade stainless steel and brass, our Command Ratchet Hinge is ideal for sunpads, bolsters and lounge backrests. This heavy-duty specialty hinge has a 15-degree locking inclination and ratchets up to four positions.

Features:

• Highly polished marine-grade stainless-steel Type-316L
• All brass bearings for durability
• Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair
• 15-degree locking inclination increments starting at 30 degrees
• Easily adaptable to many applications
• Designed for up to 4" thick cushions
• Returns to horizontal position at 100 degrees
• Countersunk for #10 fastener or 1/4-20 bolt
• Sold in pairs
• 5-year limited warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

TACO Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair [H25-0016]

Technical Specifications:

• Model – H25-0016

• Brand – TACO Marine

• Product Type – Command Ratchet Hinges (Sold as a Pair)

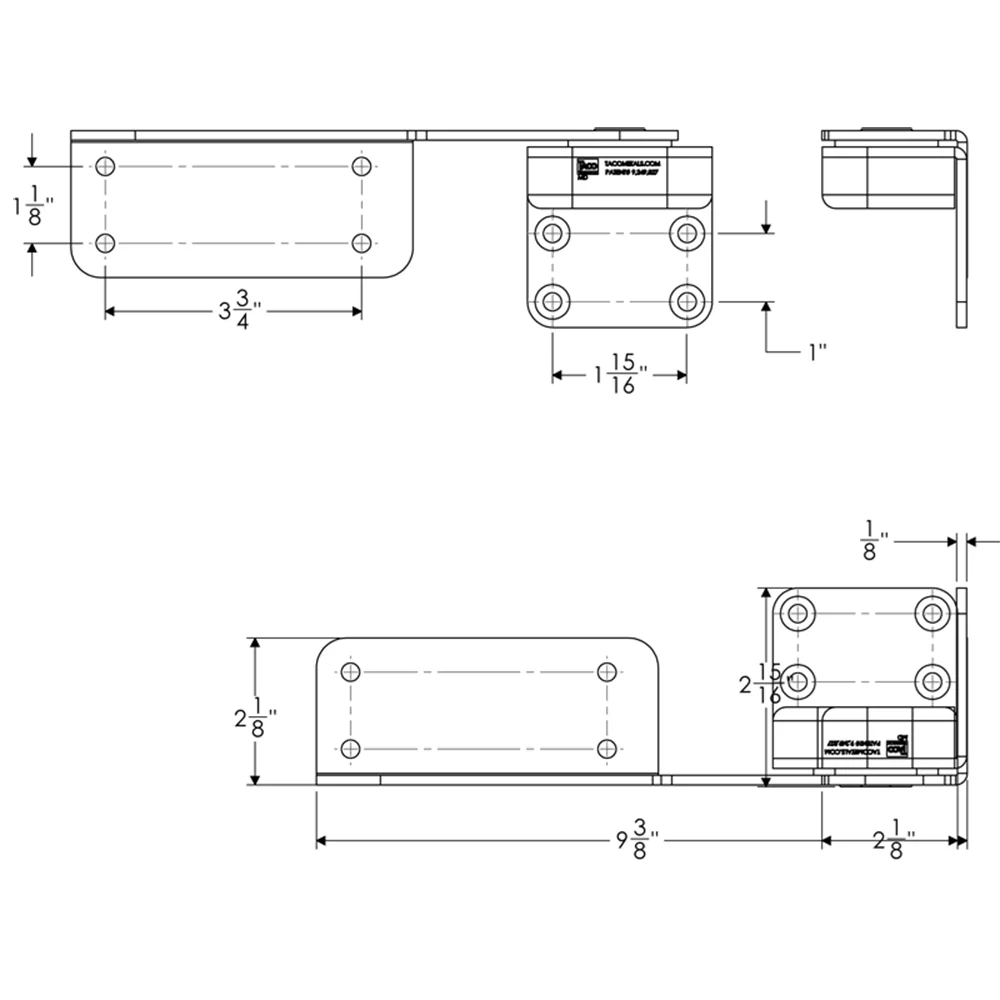

• Length – 9-3/8 inches

• Material – 316 marine-grade stainless steel

• Finish – Polished for a high-end appearance and corrosion resistance

• Adjustment Mechanism:
   • Multi-position ratcheting design
   • Allows adjustable positioning at various angles
   • Locks securely in place and folds flat when needed

• Mounting Type:
   • Surface mount
   • Pre-drilled mounting holes (hardware typically not included)

• Applications:
   • Adjustable backrests, sunpads, lounge seating, and storage lids
   • Commonly used in cockpit and deck furniture on boats

• Corrosion Resistance:
   • Excellent – built for saltwater environments

• Weight (per pair): Approx. 2.5–3.5 lbs

• Sold As: Pair – includes one left and one right hinge

• Warranty: 1-Year Limited Warranty

Features:

• Smooth, secure ratcheting function with multiple locked positions

• Strong 316 stainless construction stands up to harsh marine conditions

• Low-profile design for seamless integration into boat furniture

• Folds completely flat when not in use for a clean appearance
