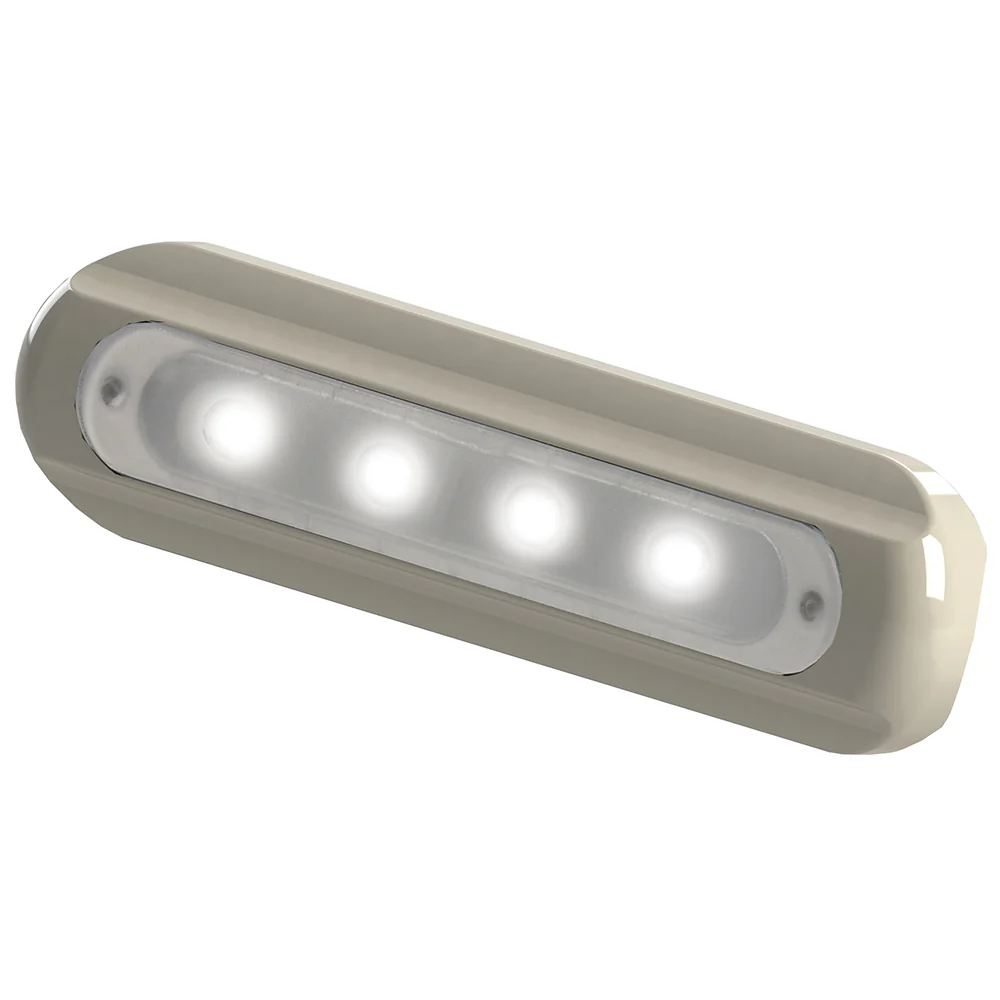

TACO 4-LED Deck Light - Flat Mount - White Housing [F38-8800W-1]

TACO 4-LED Deck Light - Flat Mount - White Housing [F38-8800W-1]

Unique, low profile LED multi-purpose deck light designed
for flat mount. Ideal for hard tops, consoles, interior cabin,
under gunnel.

Features:

• USCG, ISO and SAE certified for Ignition Protection*

• 10.0 Watt equivalent to a 55 Watt halogen flood light

• Powerful 700 lumen output with 100° spread beam angle

• 12-24 volt applications

• Very low power consumption (0.9 amps @ 12V, 0.5 amps @ 24V)

• 8' hidden power cable

• Available mounting options: Stainless Steel Swivel Bracket or 3M adhesive tape

• Compact design bolts directly to any flat surface 5" long and 1-3/8" width

Material Characteristics

• White or Black UV-resistant Polycarbonate housing

• Durable and self-extinguishing clear plastic lense

• Anodized Aluminum heatsink

• LED chips are silicone potted for IP67 Waterproof (non-submersible)

  *Completely sealed lights have been tested in an explosive environment and exposed to an explosive atmosphere in high temperature that includes powering on-off 50 times without igniting the atmosphere at a temperature not exceeding 200° C. These certificates demonstrate the ability to consistently provide product that meets statutory and regulatory requirements that assure customer satisfaction and safety. Ideal for use in engine rooms, battery compartments and anywhere fire safety is of most importance.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

TACO 4-LED Deck Light - Flat Mount - White Housing [F38-8800W-1] Product Specifications

Technical Specifications:

• Model: F38-8800W-1

• Brand: TACO Marine

• Product Type: LED Deck Light

• Mounting Style: Flat mount

• Housing Color: White

• Number of LEDs: 4 high-output LEDs

• Light Color: Bright white (approx. 6000K)

• Voltage: 12V DC

• Power Consumption: Low draw – energy-efficient

• Beam Angle: Wide-angle – ideal for illuminating decks, cockpits, or work areas

• Housing Material:

  • UV-resistant marine-grade plastic

  • Sealed and weatherproof

• Waterproof Rating: IP67 – resistant to water and dust intrusion

• Installation:

  • Surface mount with included hardware

  • Pre-wired for easy 12V integration

• Dimensions (approx.):

  • Length: ~3.5 in

  • Width: ~1.5 in

  • Depth: ~0.75 in

• Applications:

  • Deck lighting

  • Cockpit areas

  • Under gunwales or overhead on T-tops

• Warranty: 1-Year Limited Warranty

Features:

• Compact and low-profile design for tight mounting spaces

• Durable construction for long-term marine use

• Ideal for nighttime visibility and safety on deck

• Long-lasting LEDs with low maintenance and high output
