SunGold Power 560 Watt Bifacial PERC Solar Panel (32 Panels)
SunGold Power 560 Watt Bifacial PERC Solar Panel (32 Panels)
Description
IMPROVED PV MODULE PERFORMANCE UNDER
PARTIALSHADING CONDITIONS
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
Product Specifications
SunGold Power 560 Watt Bifacial PERC Solar Panel
Product Specifications
| Model Type | SG-560WBG |
|---|---|
| Peak Power (Pmax) | 560W |
| Production tolerance | Ā±3% |
| Maximum Power Current (Imp) | 13.3A |
| Maximum Power Voltage (Vmp) | 42.1V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 50.09V |
| Maximum System Voltage | 1500V |

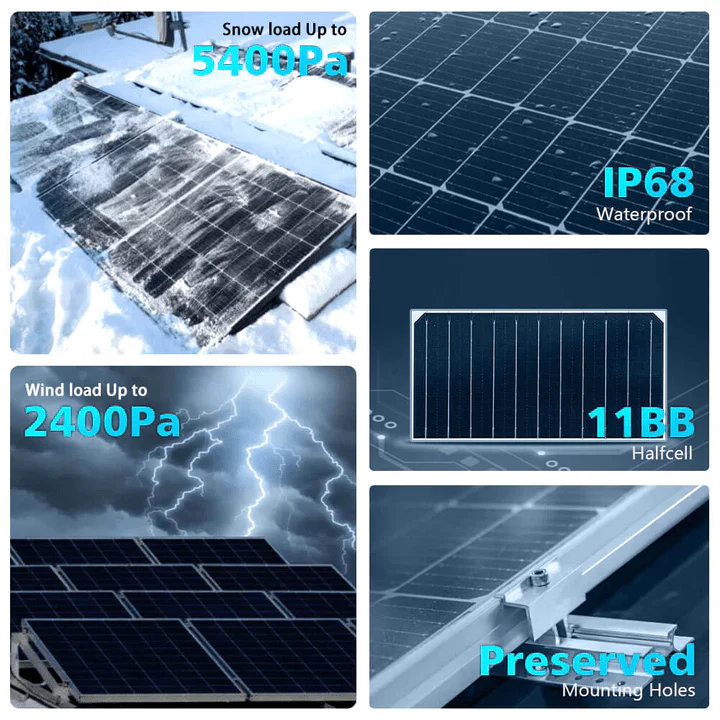

| Wind Resistance | 2400Pa |
| Output CablesĀ | 12 AWG (1ft per cable) |
| Number of CellsĀ | 144(6x 24),60 cells in series |
| Cell Type | PERC Monocrystalline (7.2x 3.6 in) |
| Certifications | CE TUV |
| Product Weight | 67.9lbs |

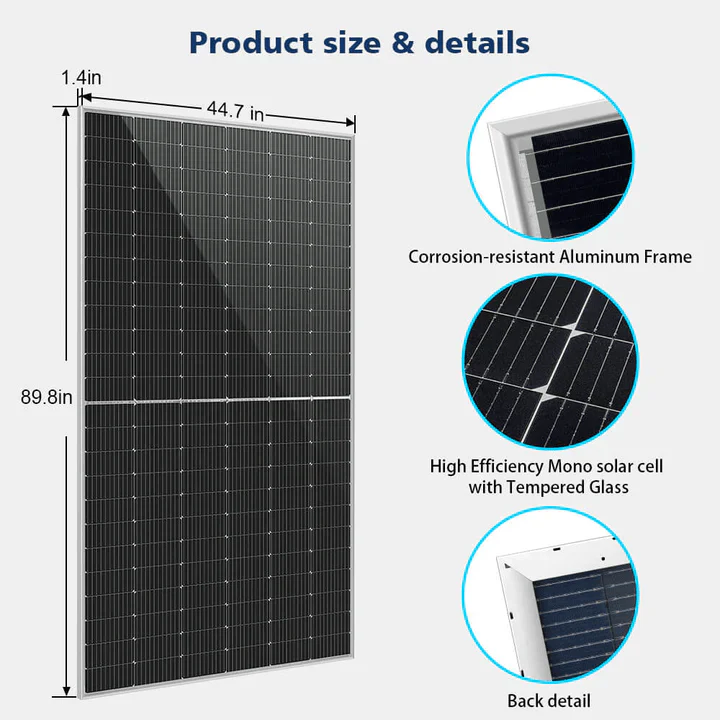

| Product Dimension | 89.8*44.7*1.4inch |
| Package Weight | 128.7lbsļ¼2PCSļ¼ |
| Package Dimension | 92.5*47.6*3.1inchļ¼2PCSļ¼ |

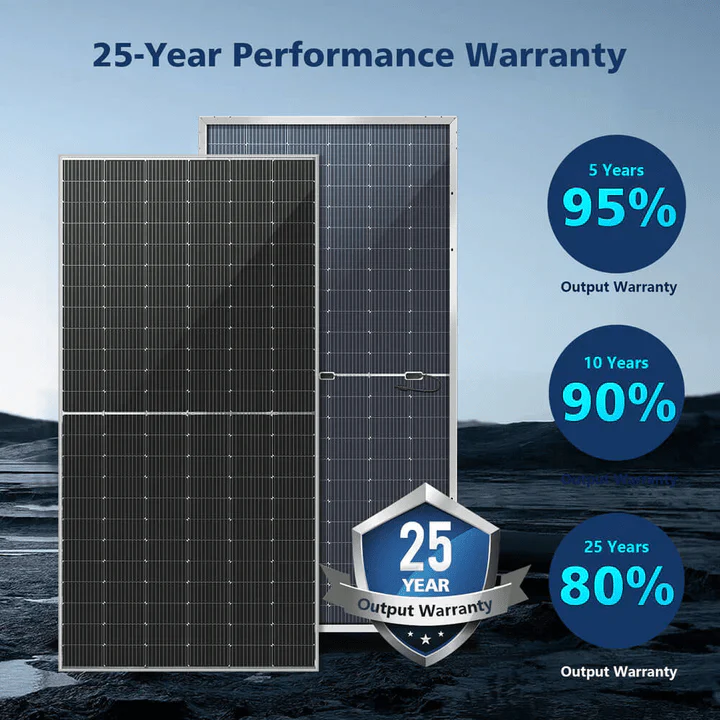

| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 10 year material and workmanship warranty |
Product Manual
560 Watt Bifacial PERC Solar Panel User Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)Ā
Product FAQs
SunGold Power 560 Watt Bifacial PERC Solar Panel FAQs
1.Ā Is it waterproof?
Yes, this solar panel is waterproof.
