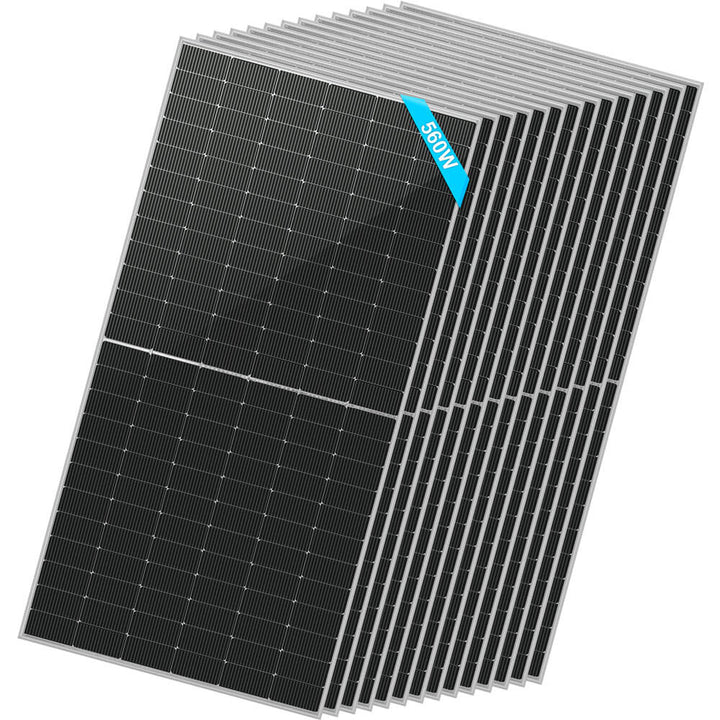

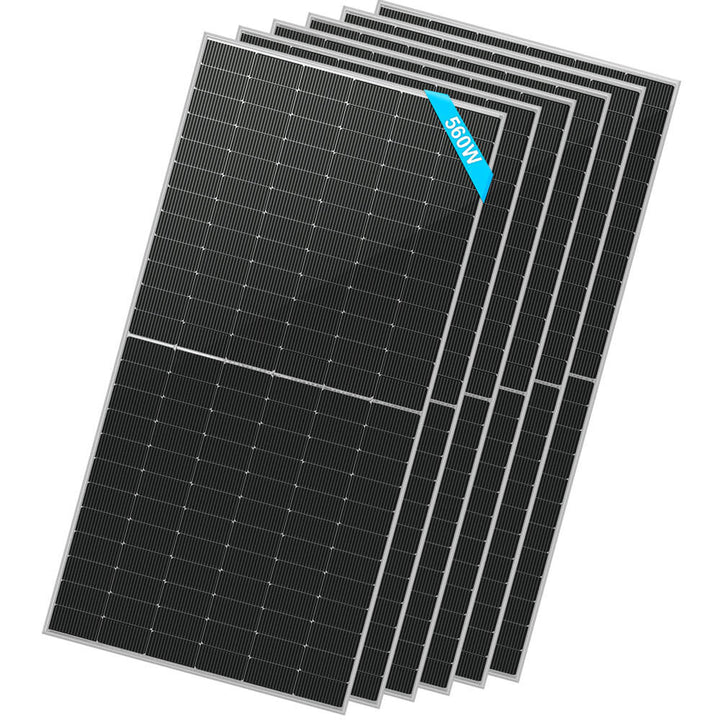

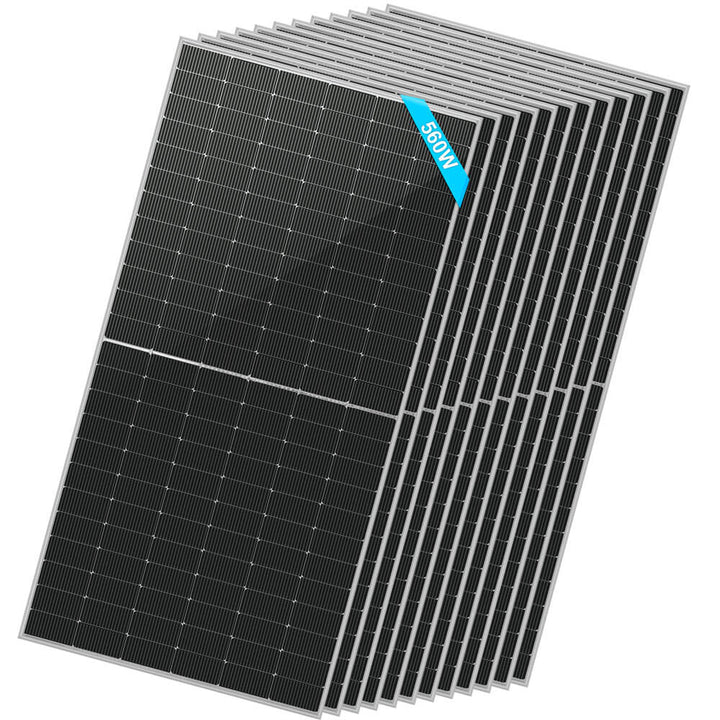

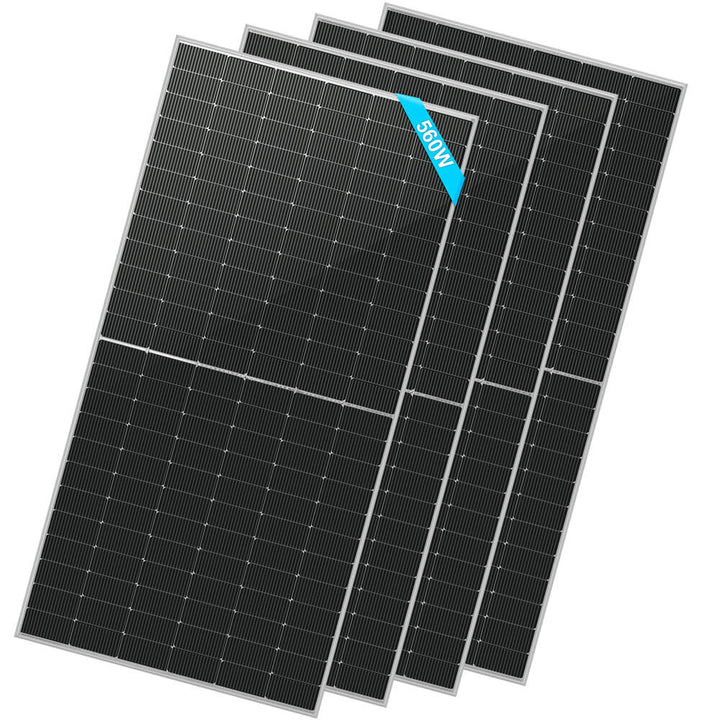

SunGold Power 560 Watt Bifacial N-Type Monocrystalline Solar Panel
SunGold Power 560 Watt Bifacial N-Type Monocrystalline Solar Panel
Description
Highlight:
- ★Bifacial monocrystalline N-Type solar panel can generate more energy up to 30%
- ★Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
- ★The space requirement for installation is less because of high efficiency
- ★It can be set up at any angle. no need to analyse or calculate the right mounting and tilt angle
- ★This N-Type solar panel has 30 years Linear power warranty，12- years Material and workmanship warranty.

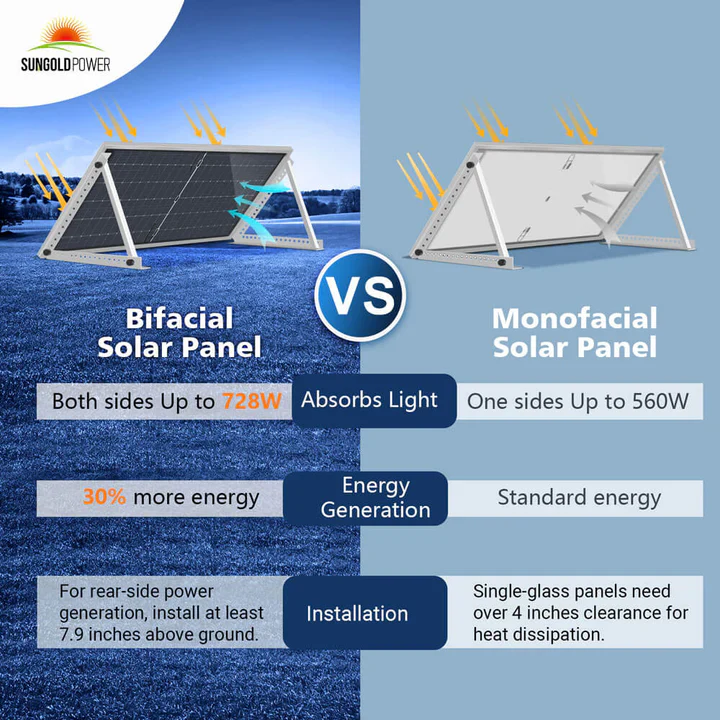

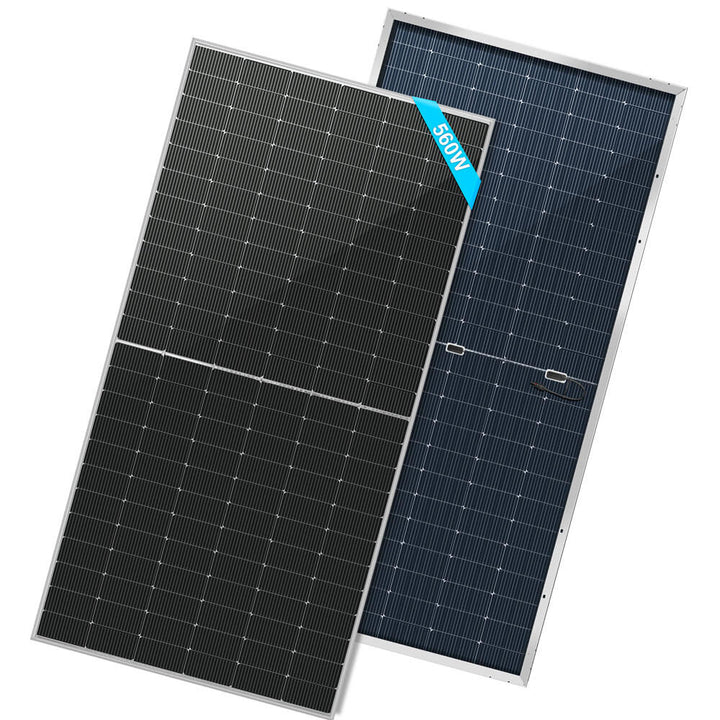

Sungoldpower Bifacial N－Type solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

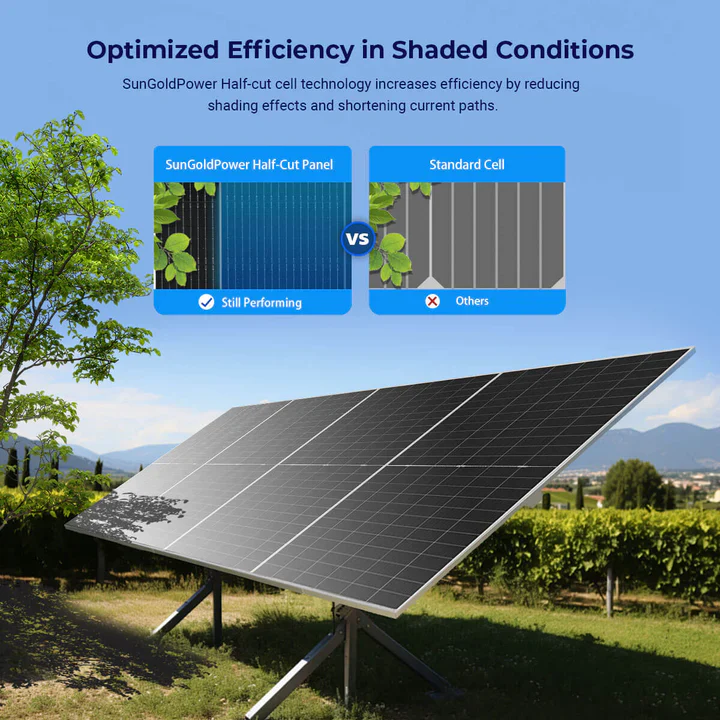

Improved PV Module Performance under PartialShading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
Product Specifications
SunGold Power 560 Watt Bifacial N-Type Monocrystalline Solar Panel Product Specifications
| Model Type | SG-560WBG |
|---|---|
| Peak Power (Pmax) | 560W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.3A |
| Maximum Power Voltage (Vmp) | 42.1V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 50.09V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144(6x 24),60 cells in series |
| Cell Type | N-Type |
| Certifications | CE TUV |
| Product Weight | 70.4lbs |

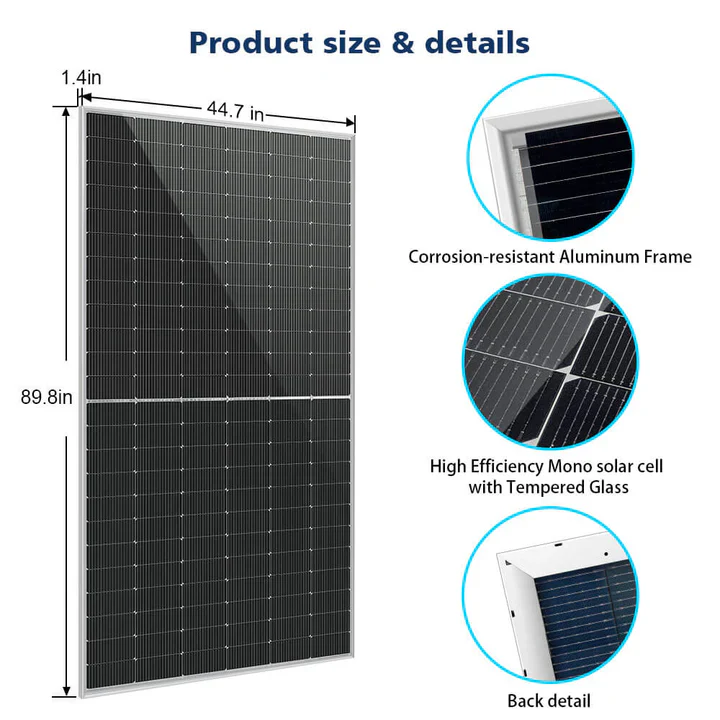

| Product Dimension | 89.8*44.7*1.4inch |
| Package Weight | 128.7lbs（2PCS） |
| Package Dimension | 92.5*47.6*3.1inch（2PCS） |

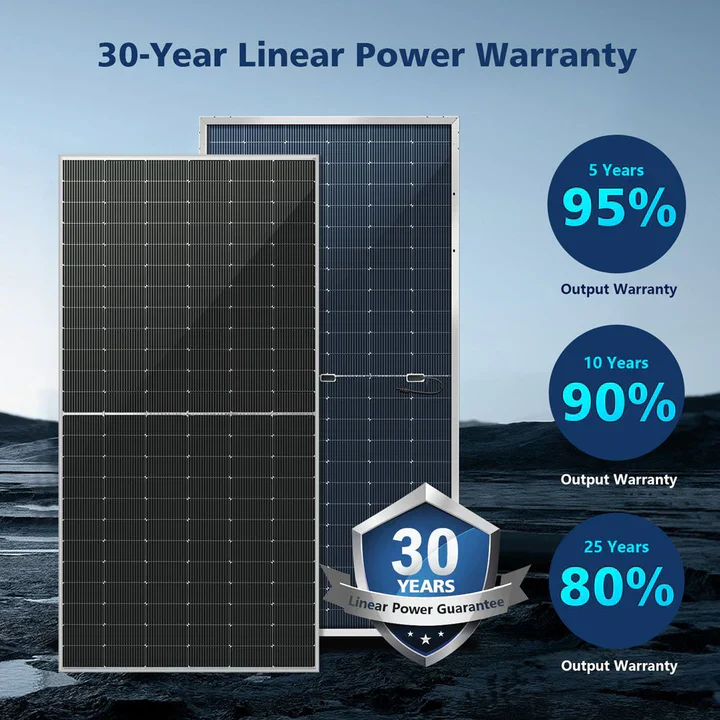

| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 12 year material and workmanship warranty |
Product Manual
560W Bifacial Solar Panel User Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
N/A
