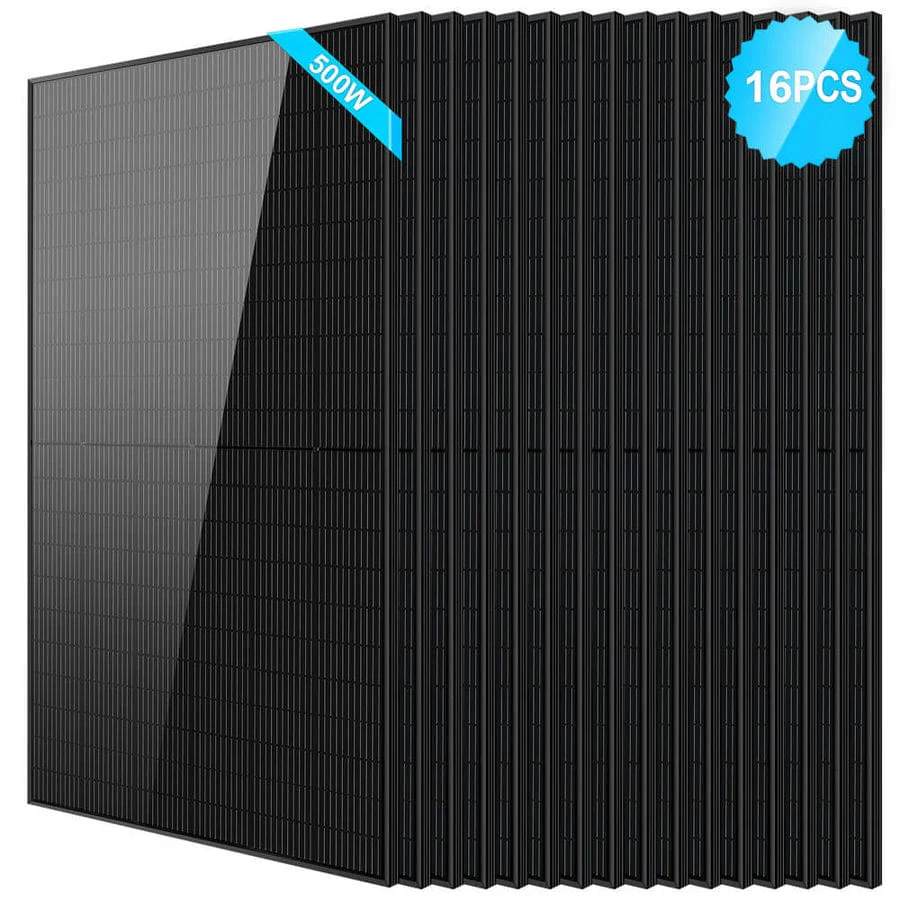

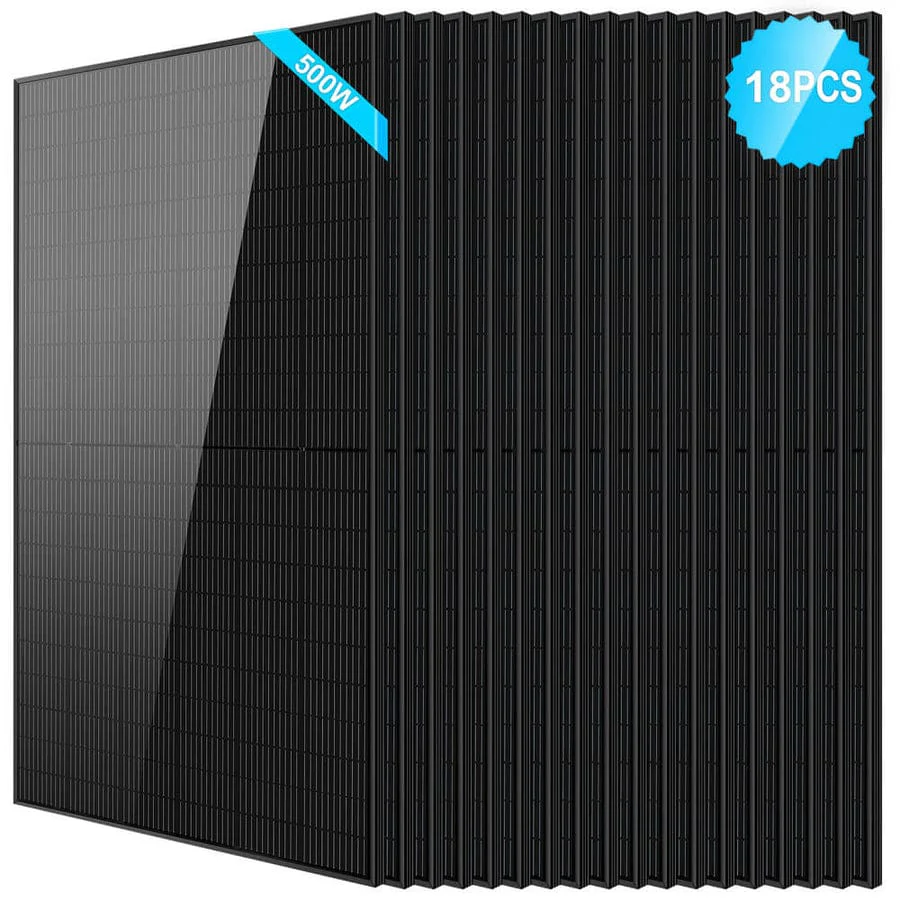

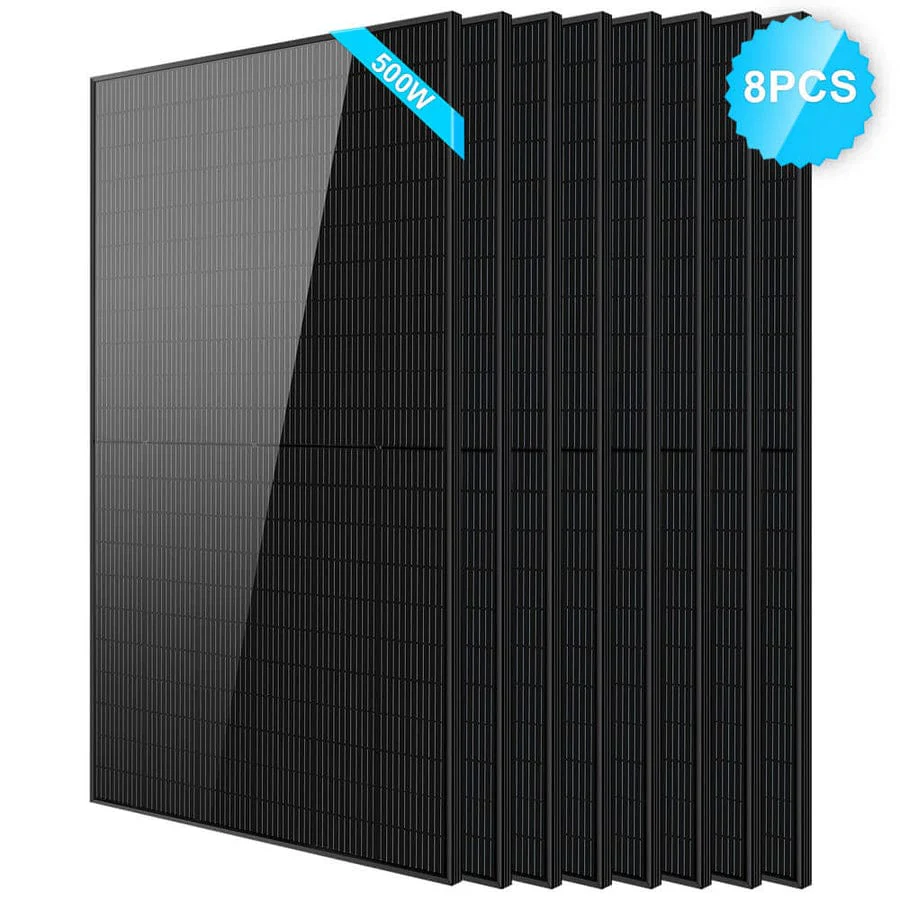

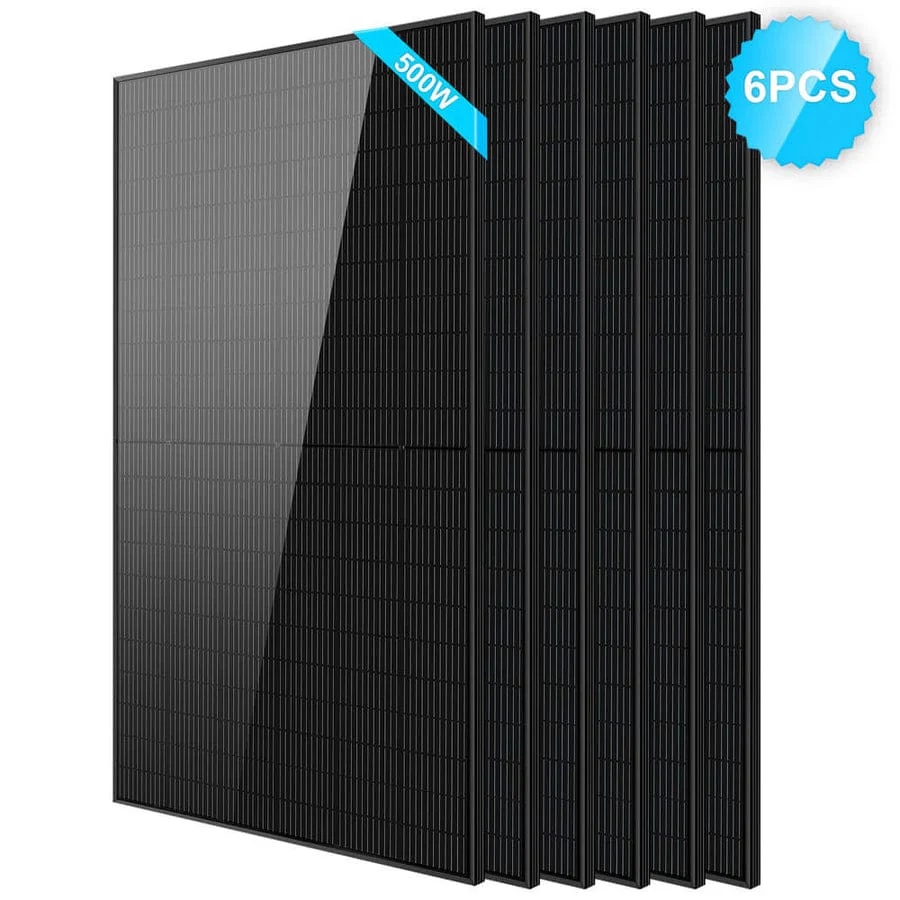

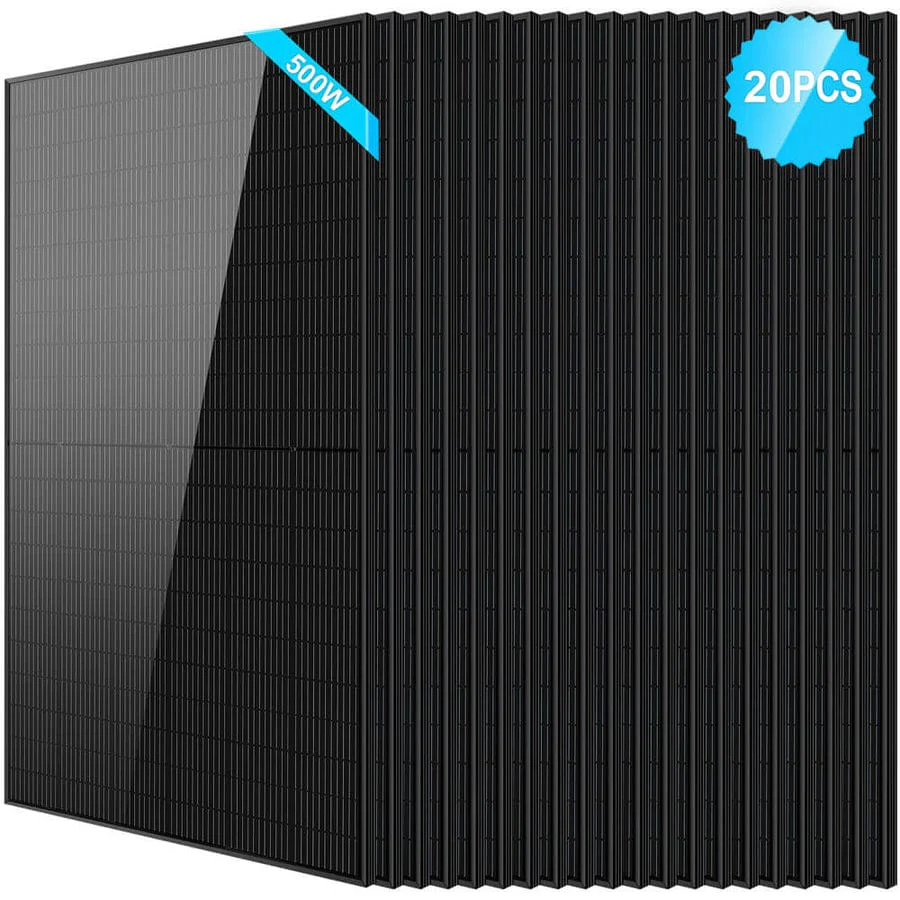

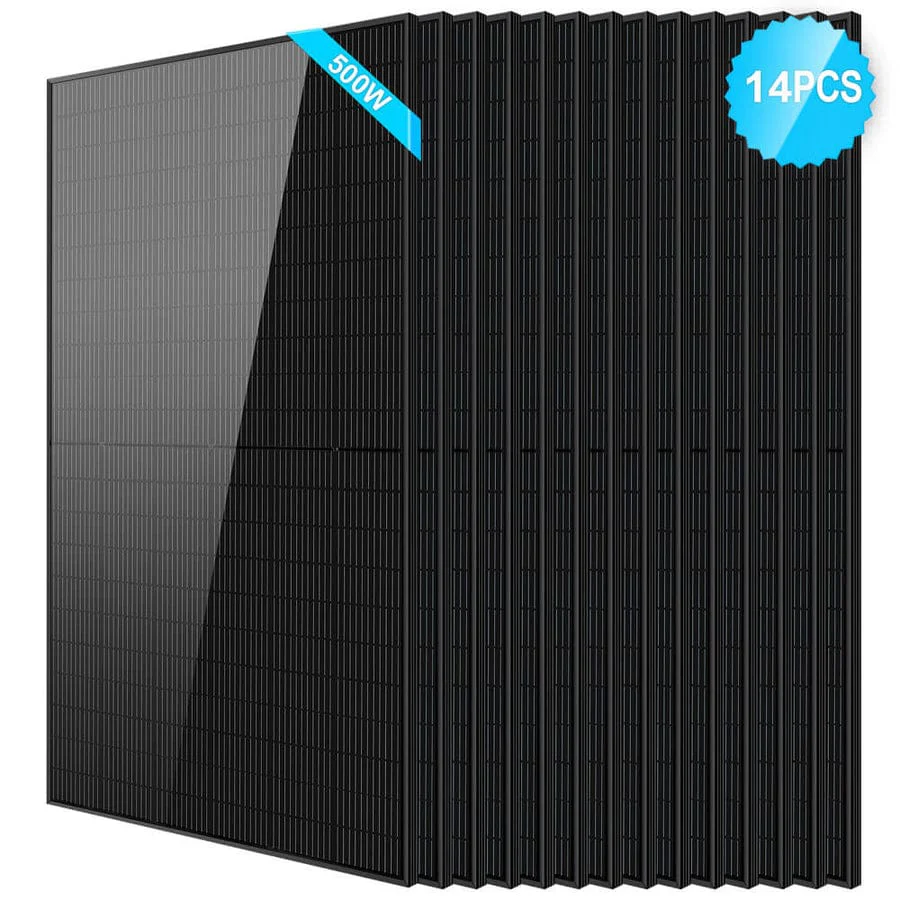

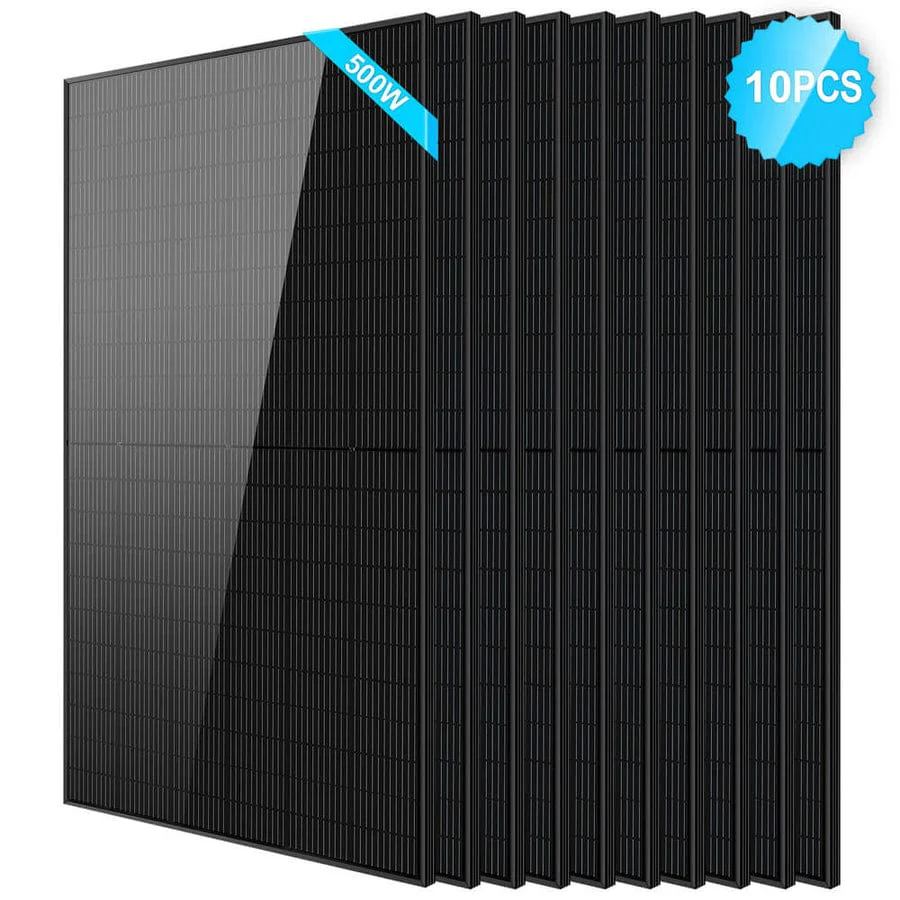

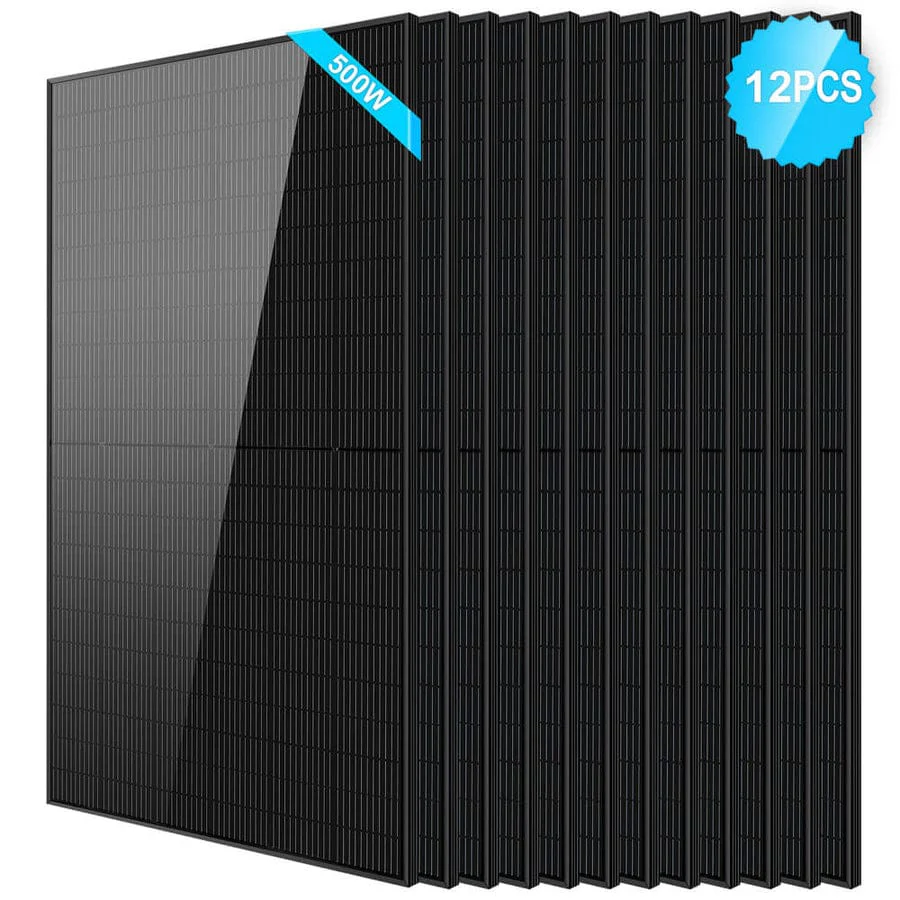

SunGold Power 500W Mono Black PERC Solar Panel
SunGold Power 500W Mono Black PERC Solar Panel
Description
Off-grid & On-grid Solution & Hybrid System
This high efficiency PERC 500W solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Product Parameters
Product Specifications
SunGold Power 500W Mono Black PERC Solar Panel Product Specifications
| Model Type | SG-500WM |
|---|---|
| Peak Power (Pmax) | 500W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.30A |
| Maximum Power Voltage (Vmp) | 37.60V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 44.36V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 132(6*22) |
| Cell Type | PERC Mono182*91mm |
| Certifications | CE TUV |
| Product Weight | 56.2lbs |
| Product Dimension | 82.44*44.65*1.38inch |
| Package Weight | 124.6lbs（2PCS） |
| Package Dimension | 85.4*47.6*3.5inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty.UL 61730 |
Product Manual
SunGold Power 500W Mono Black PERC Solar Panel Product Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
N/A
Original: $803.00
-65%$803.00
$281.05Product Information
