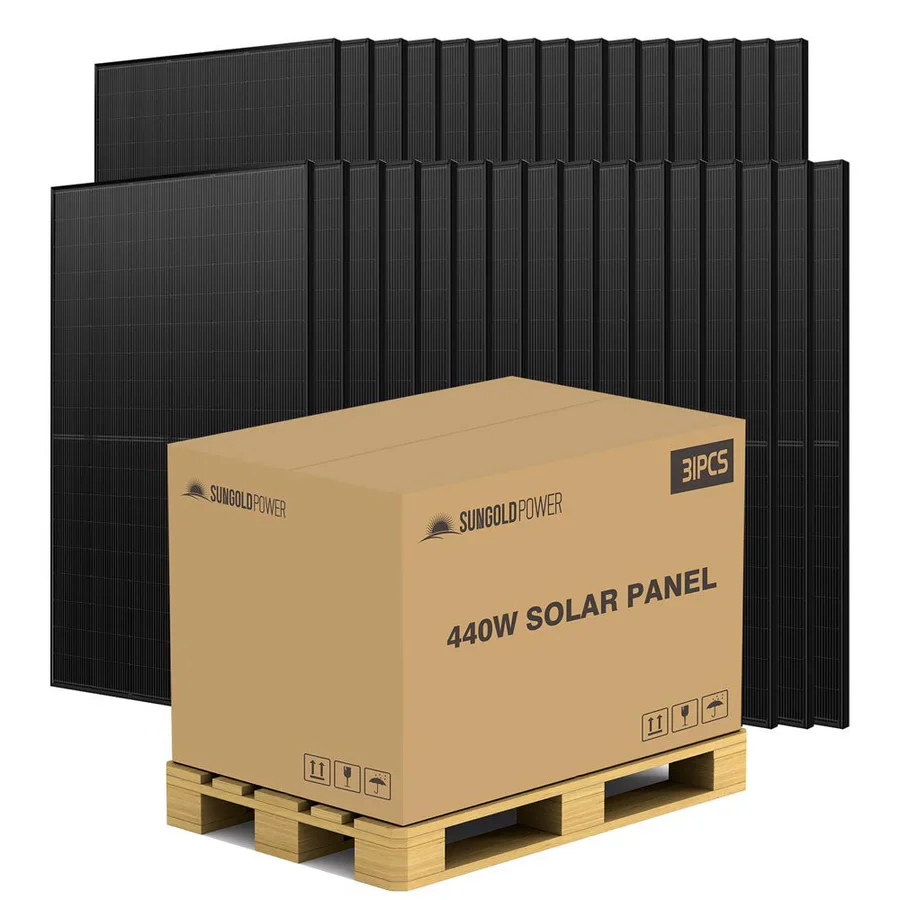

SunGold Power 440W Mono Black N-Type Solar Panel (31 Panels)
SunGold Power 440W Mono Black N-Type Solar Panel (31 Panels)
Description
Highlight:
- ★High Efficiency Module: This module comes with Mono N-Type Technology and has a module efficiency up to 22.5%. SunGoldPower 440W panels provide more output per surface area than most traditional panels.
- ★High Tolerance: 440W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
- ★Widely Use: 440W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
- ★Warranty: 12 Years Performance warranty 30 years Linear power warranty ,TUV certificated,UL61730 ,CEC Listed.
Off-grid & On-grid Solution & Hybrid System
This high efficiency N-Type Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

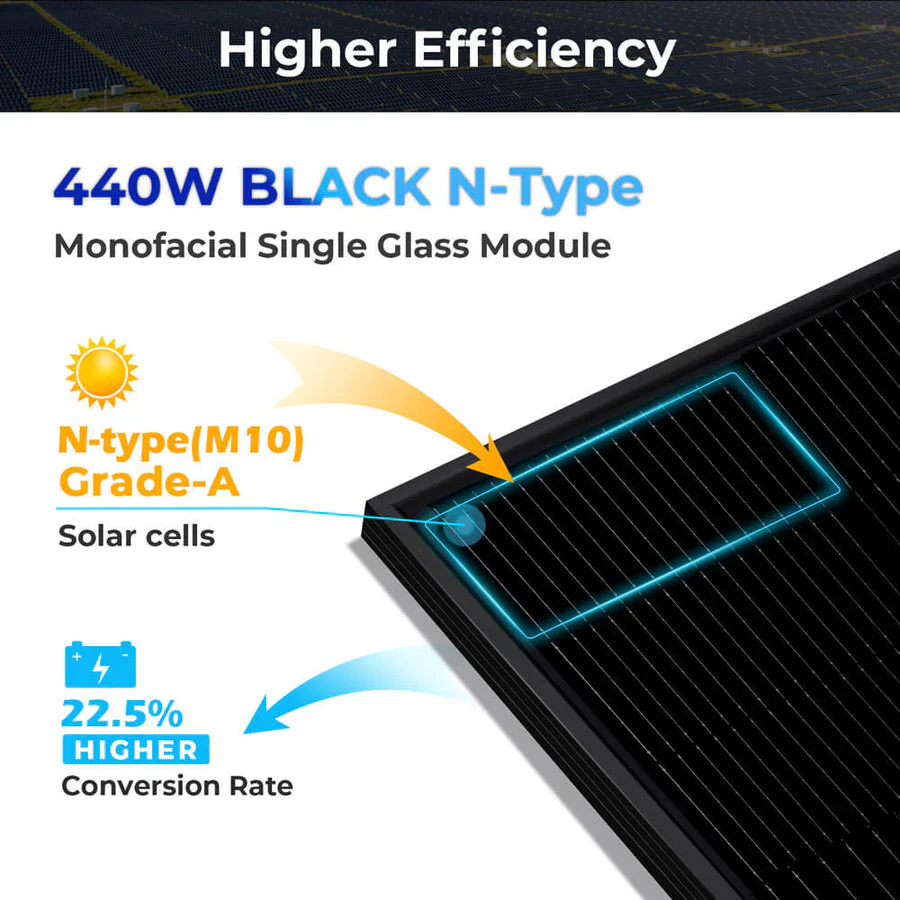

High efficiency
30-year lifespan delivers 10-30% more power compared with conventional P-type modules

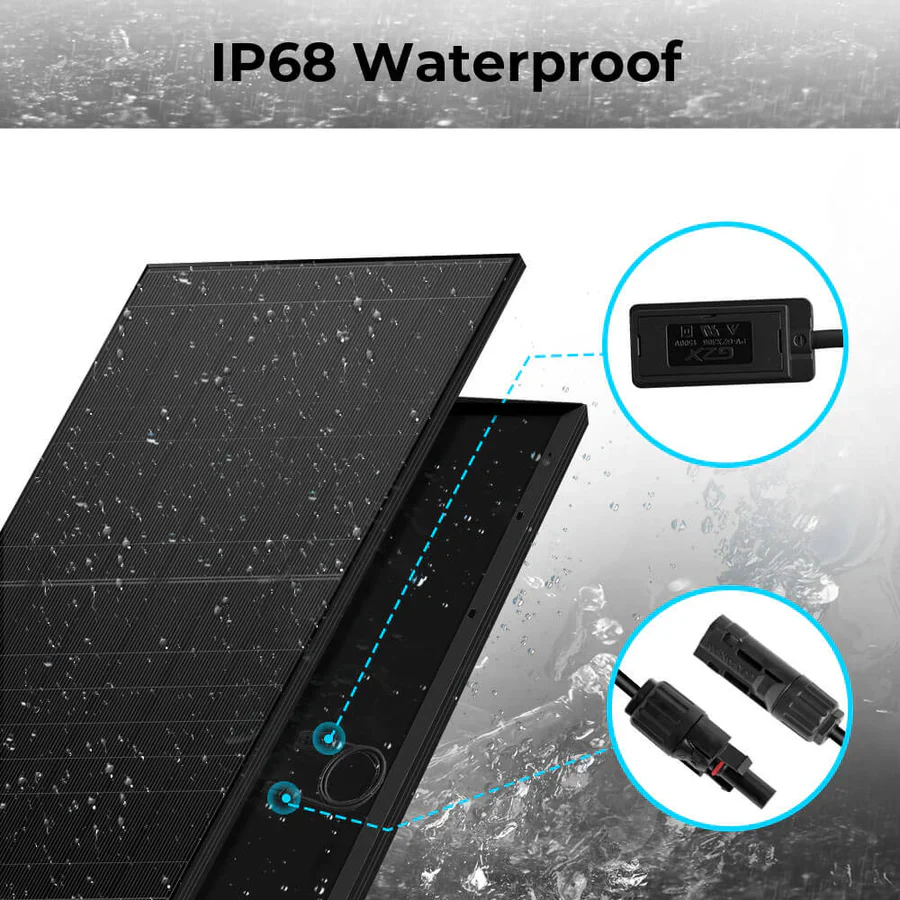

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

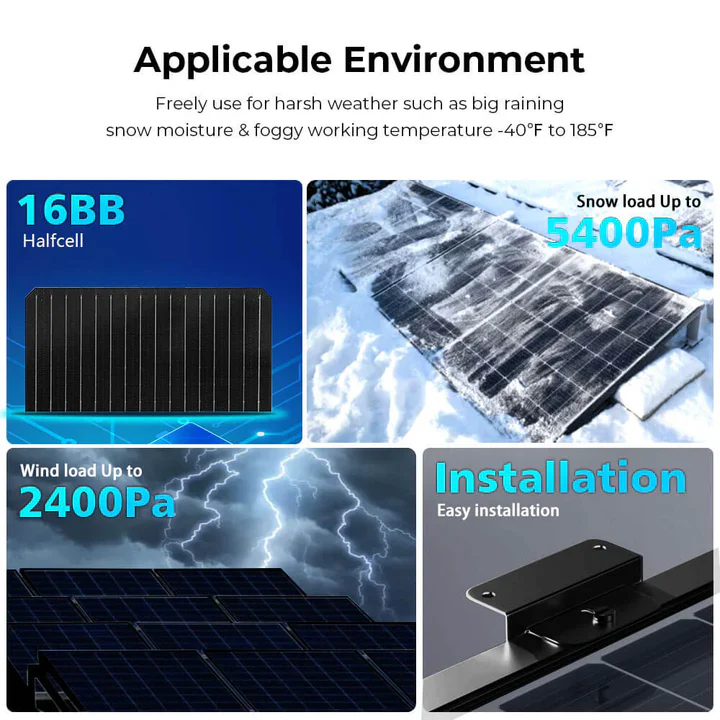

Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Product Specifications
SunGold Power 440W Mono Black N-Type Solar Panel (31 Panels) Product Specifications
| Model Type | SGN-440-SW5 |
|---|---|
| Peak Power (Pmax) | 440W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.15A |
| Maximum Power Voltage (Vmp) | 33.48V |
| Short Circuit Current (Isc) | 13.73A |
| Open Circuit Voltage (Voc) | 39.03V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output wire | 4mm² (IEC),12 AWG (UL) |
| Number of Cells | 108 cells(2×54) |
| Cell Type | N-type monocrystalline (M10) |
| Certifications | UL 61730 CE TUV CEC Listed |
| Product Weight | 46.30 lbs |

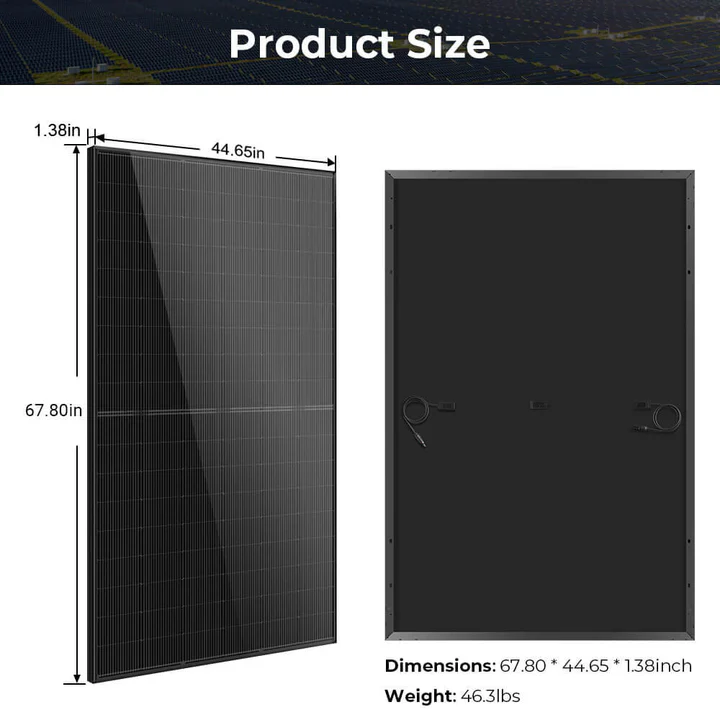

| Product Dimension | 67.80 * 44.65 * 1.38 inch |
| Package Weight | 92.6lbs（2PCS） |
| Package Dimension | 67.80*47.6*3.5inch（2PCS） |
| Material and workmanship warranty | 12 Years Performance warranty 30 years Linear power warranty |
Product Manual
440W N-Type Solar Panel User Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
N/A
