SunGold Power 4000W DC 24V Low Frequency Split Phase Inverter
SunGold Power 4000W DC 24V Low Frequency Split Phase Inverter
Description
The SunGoldPower LFP 4000 Watt DC 12V AC 120/240 Split Phase Inverter Charger is a top high quality low frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer or Boat Application, this inverter charger is perfect for your off grid system or an emergency backup supply.
The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC, and it can output 50 or 60Hz via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220 panel in place.
Product Specifications
SunGold Power 4000W DC 24V Low Frequency Split Phase Inverter Product Specifications
| Category | Specifications |
|---|---|

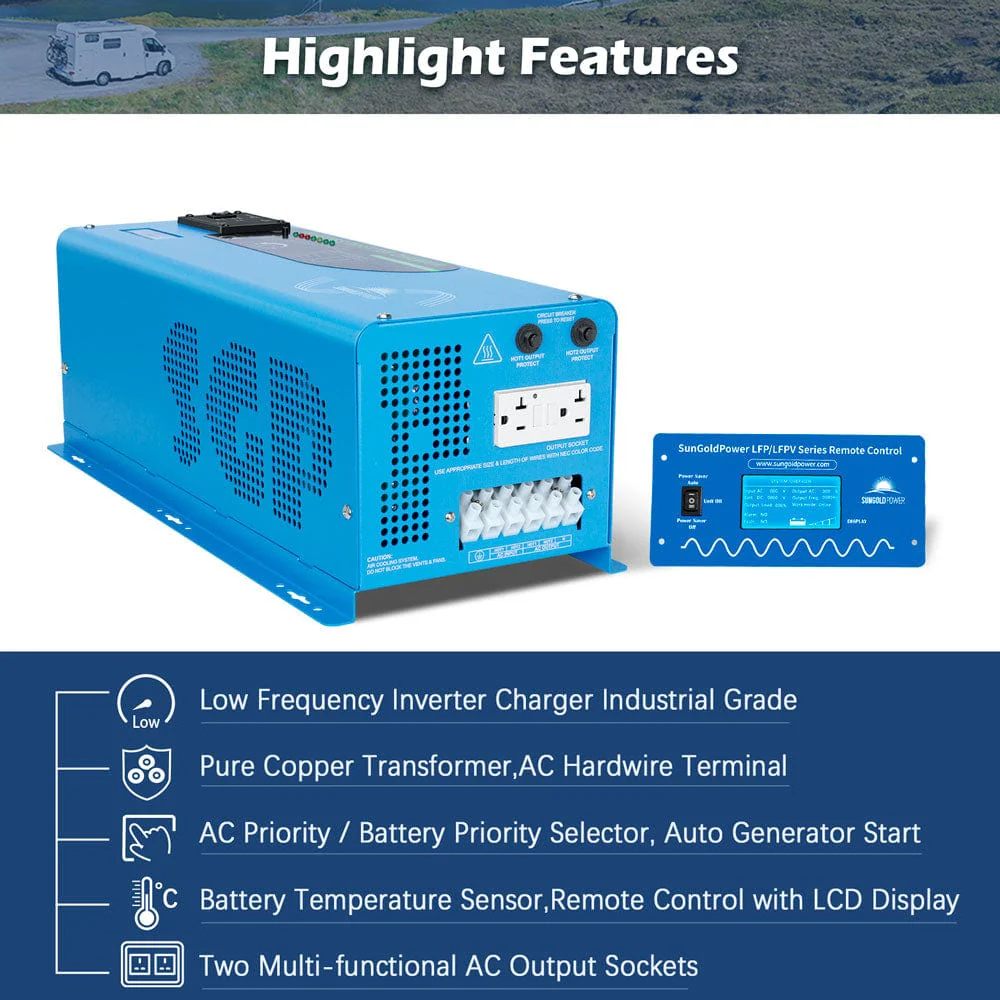

| Main Features | 4000W Low Frequency Pure Sine Inverter With Charger |
| AC/Battery Priority Selector | |
| Automatic Generator Start | |
| Safety and Convenient | |

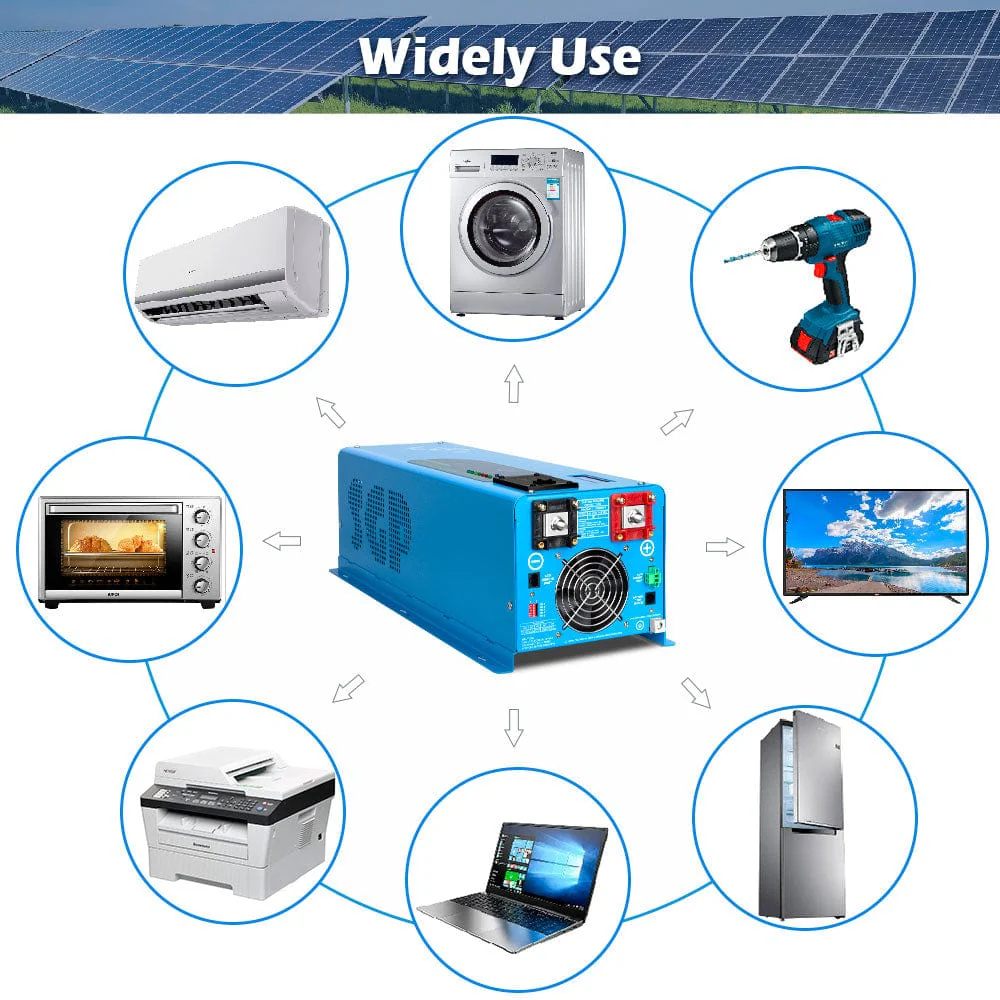

| The Low Frequency Inverter Can Power All Kinds of Appliances | |
| LCD Display, Remote Control | |
| Low Idle Consumption | |

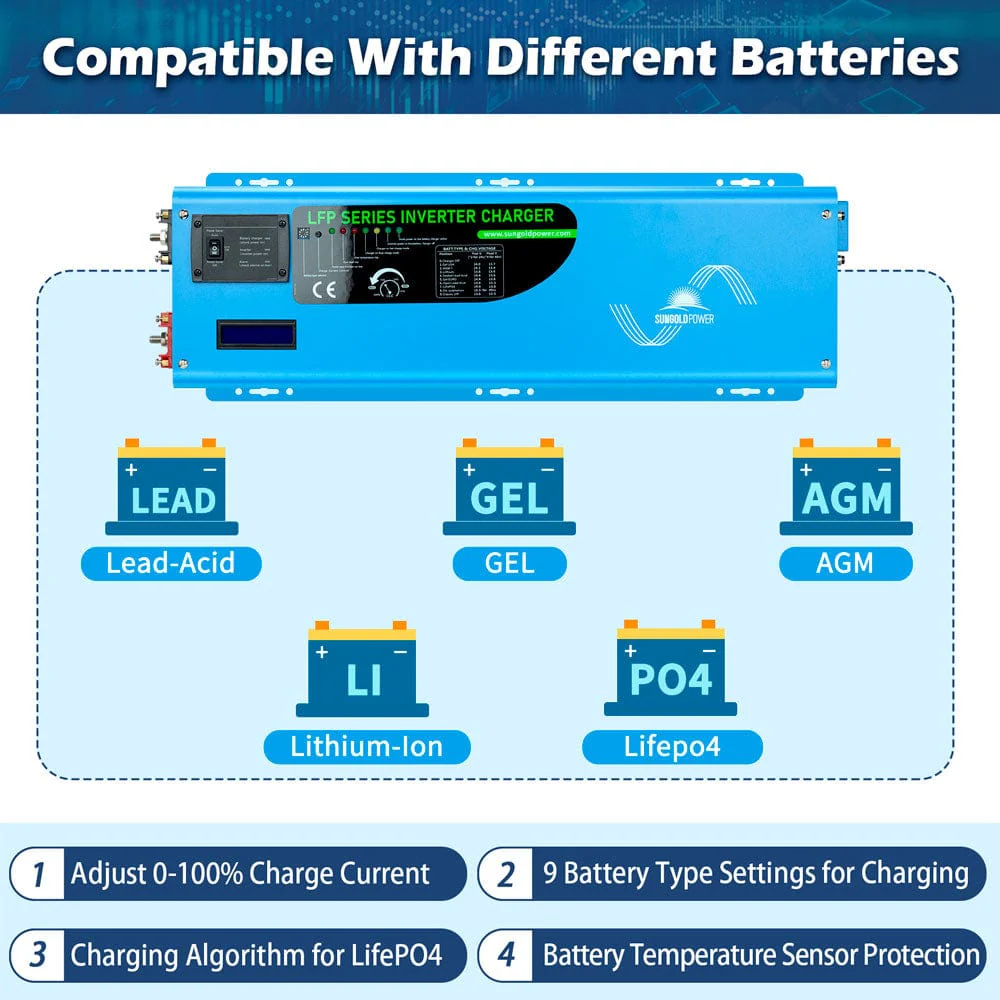

| 9 Battery Type Settings for Charger | |
| Multi-Stage Smart Charger (120+/-5A, Charger Can Be Disabled) | |
| 10ms Typical Transfer Time | |
| Inverter Output | Continuous Output Power: 4000W |
| Surge Rating: 12000W (20 Seconds) | |
| AC Output: AC 120V and AC 240V | |
| AC Input: 240V | |
| Output Wave: Pure Sine Wave (Bypass Mode) | |
| Typical Transfer Time: 10ms (MAX) | |
| Nominal Efficiency: >88% | |
| DC Input | Nominal Input Voltage: 12.0Vdc |
| Minimum Start Voltage: 10.0Vdc | |
| Low Battery Alarm: 10.5Vdc - 11.0Vdc | |
| Low Battery Trip: 10.0Vdc - 10.5Vdc (Select by SW1) | |
| High Voltage Alarm: 16.0Vdc | |
| Low Battery Voltage Restart: 13Vdc | |
| Idle Consumption: 45W | |
| Power Saver Mode Idle Consumption: 18W | |
| AC Charger | Charger Rate: 120+/-5A |
| AC Input Range (Grid or Generator): 140V - 270VAC / 184V - 253VAC (Select by SW2) | |
| Overcharge Protection Shutdown: 15.7V | |
| Selectable Charge Setting Based on Battery Type | |
| Adjustable Charge Current: Off, 0%-100% | |
| 3-Step Intelligent Battery Charger | |

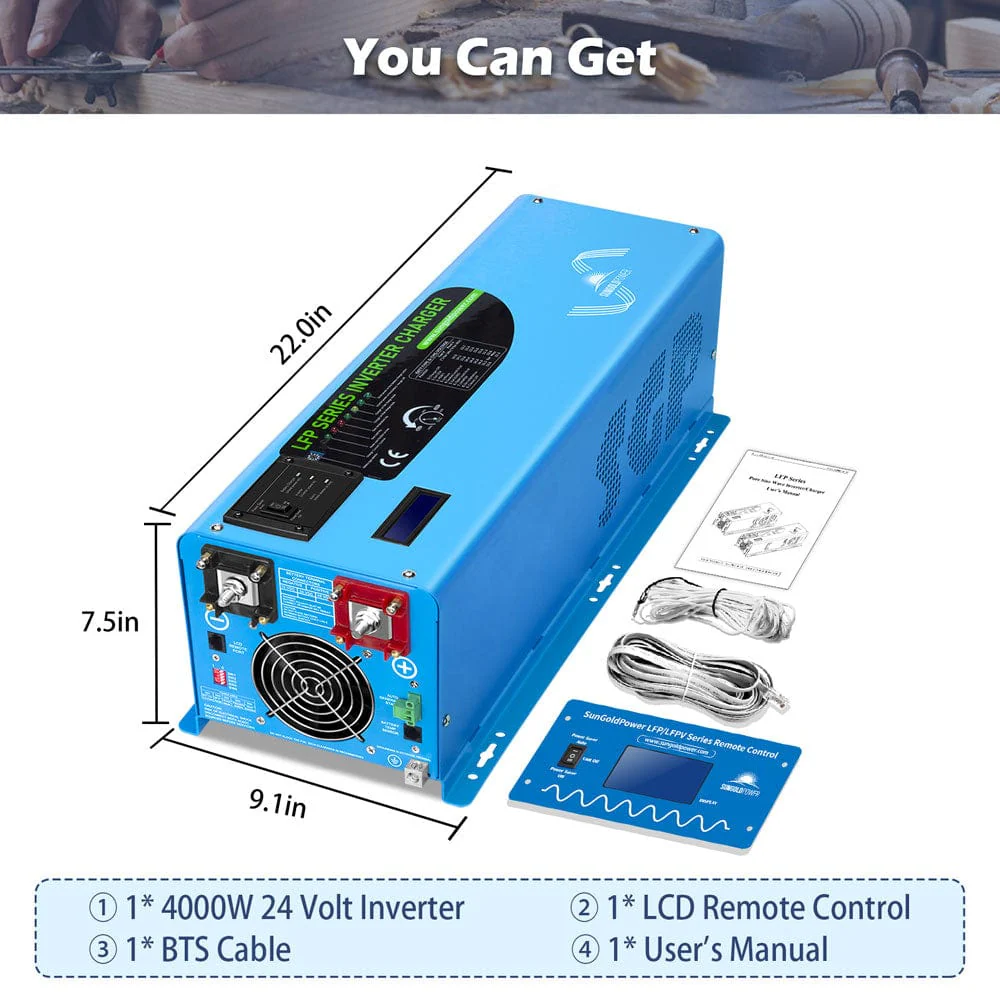

| Packaging | 4000W 24V Low Frequency Pure Sine Inverter |
| English Manual | |
| Remote Control | |
| BTS Cable | |
| Unit Weight: 55 LB | |
| Unit Size: 22 x 9.1 x 7.5 inches | |
| Shipping Weight: 64 LB | |
| Shipping Size: 27 x 13.4 x 13 inches |
Product Manual
LFP Series Pure Sine Wave Inverter/Charger User's Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
SunGold Power 4000W DC 12V Low Frequency Split Phase Inverter FAQs
1. What is the idle wattage?
The idle power is 18W if saver-on mode, the idle power is 45W if saver-off mode, thanks.
2. Can this work with Enphase micro inverters on the same grid?
Sorry, it can't work with other inverters on the same grid, it can't be stackble, hope your kind understanding, thanks.
3. Will the charger work on 120 volts or does the charger require 24 volts?
The AC input is 240V, AC output is 120V and 240V, DC voltage is 12V, thanks.
