SunGold Power 4000W DC 12V Low Frequency Inverter
SunGold Power 4000W DC 12VÂ Low Frequency Inverter
Description

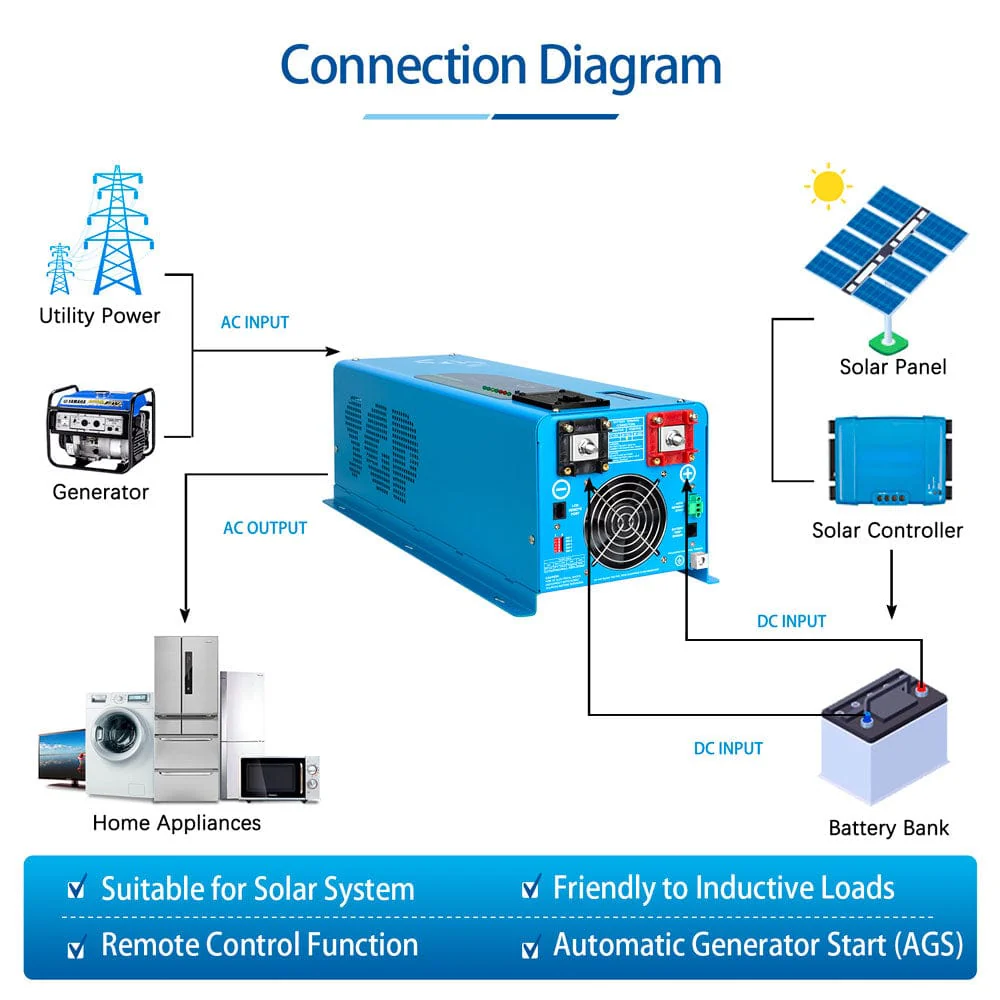

If you are looking for a high pure sine-wave inverter and high capacity charger, SunGoldPower low frequency inverter is your best choice. it is a combination of an inverter, battery charger and transfer switch into one complete system, This 12V dc to 120v ac inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer. the inverter charger is found on practically every RV, trailer, motorhome, truck camper and is a good solution for backup or off grid power solutions. This inverter requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
Product Specifications
SunGold Power 4000W D12V Low Frequency Inverter Product Specifications:
| Category | Specifications |
|---|---|
| Main Features | 4000W Low Frequency Pure Sine Inverter With Charger |
| AC/Battery Priority Selector | |
| Automatic Generator Start | |
| GFCI Socket for Safety and Convenience | |
| The Low Frequency Inverter Can Power All Kinds of Appliances | |
| LCD Display, Remote Control, BTS Included | |
| Low Idle Consumption | |

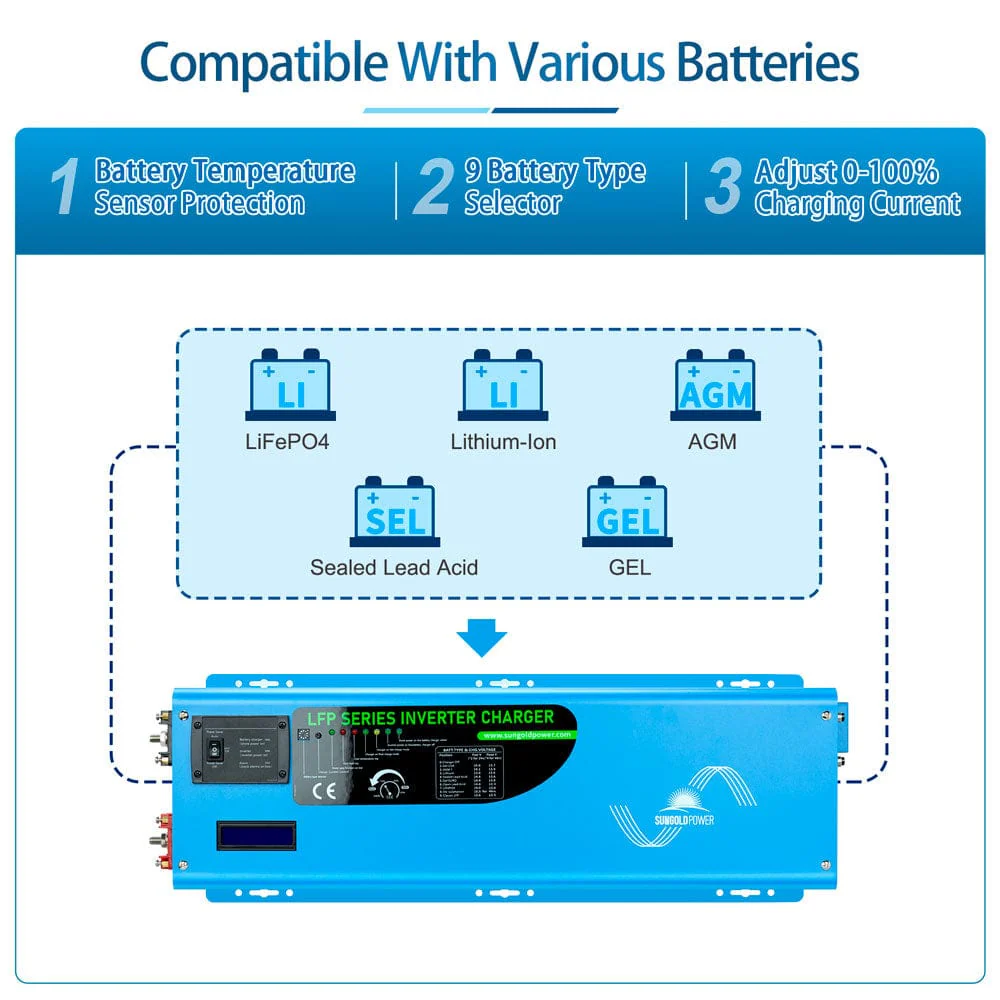

| 9 Battery Type Settings for Charger | |
| Multi-Stage Smart Charger (120 +/- 5A, charger can be disabled) | |
| 10msec Typical Transfer Time | |
| Inverter Output | Continuous Output Power: 4000W |
| Surge Rating: 12000W (20 Seconds) | |
| AC Output: 120VAC | |
| AC Input: 120VAC | |
| Output Wave: Pure Sine Wave (Bypass Mode) | |
| Typical Transfer Time: 10ms (MAX) | |
| Nominal Efficiency: >88% | |
| DC Input | Nominal Input Voltage: 12.0Vdc |
| Minimum Start Voltage: 10.0Vdc | |
| Low Battery Alarm: 10.5Vdc - 11.0Vdc | |
| Low Battery Trip: 10.0Vdc - 10.5Vdc (Select by SW1) | |
| High Voltage Alarm: 16.0Vdc | |
| Low Battery Voltage Restart: 13Vdc | |
| Idle Consumption: 45W | |
| Power Saver Mode Idle Consumption: 18W | |
| AC Charger | Charger Rate: 120 +/- 5A |
| AC Input Range (Grid or Generator): 90V - 135VAC / 100V - 135VAC (Select by SW2) | |
| Overcharge Protection Shutdown: 15.7V | |
| Selectable Charge Setting Based on Battery Type | |
| Adjustable Charge Current: Off, 0%-100% | |
| 3-Step Intelligent Battery Charger | |

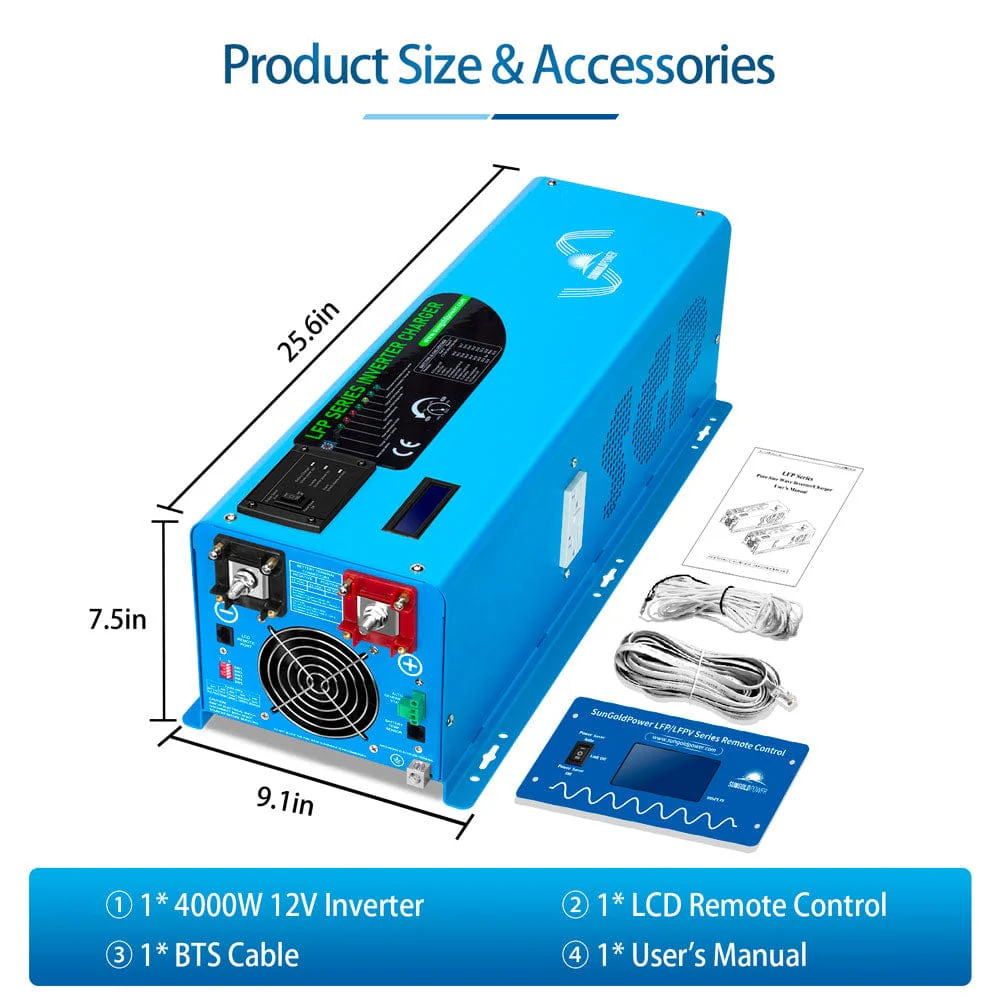

| Packaging | 4000W 12V Low Frequency Pure Sine Inverter |
| English Manual | |
| Remote Control | |
| BTS Cable | |
| Unit Weight: 62.2 LB | |
| Unit Size: 25.6 x 9.1 x 7.5 inches | |
| Shipping Weight: 71 LB | |
| Shipping Size: 30.3 x 13.4 x 12.8 inches |
Product Manual
LFP Series Pure Sine Wave Inverter/Charger User's Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
SunGold Power 4000W DC 12V Low Frequency Inverter FAQs
1. What is the idle wattage?
The idle power is 18W if saver-on mode, the idle power is 45W if saver-off mode, thanks.
2. What kind of wiring from inverter to remote?
In the packaging, there is a matching remote wire for this product that you could use directly.
