SunGold Power 370W Mono Black PERC Solar Panel UL 61730
SunGold Power 370W Mono Black PERC Solar Panel UL 61730
Description
Highlight:
- ★High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 20.3%. SunGoldPower 370W panels provide more output per surface area than most tranditional panels.
- ★ High Tolerance: 370W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
- ★Widely Use : 370W solar panel is ideal for off-grid,on grid or hybrid solar system, can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
- ★Warranty :The solar panels come with 12 years Material and workmanship warranty and 25-years 80% output Performance Warranty,UL 61730,CEC Listed.
Off-grid & On-grid Solution & Hybrid System
This high efficiency PERC solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

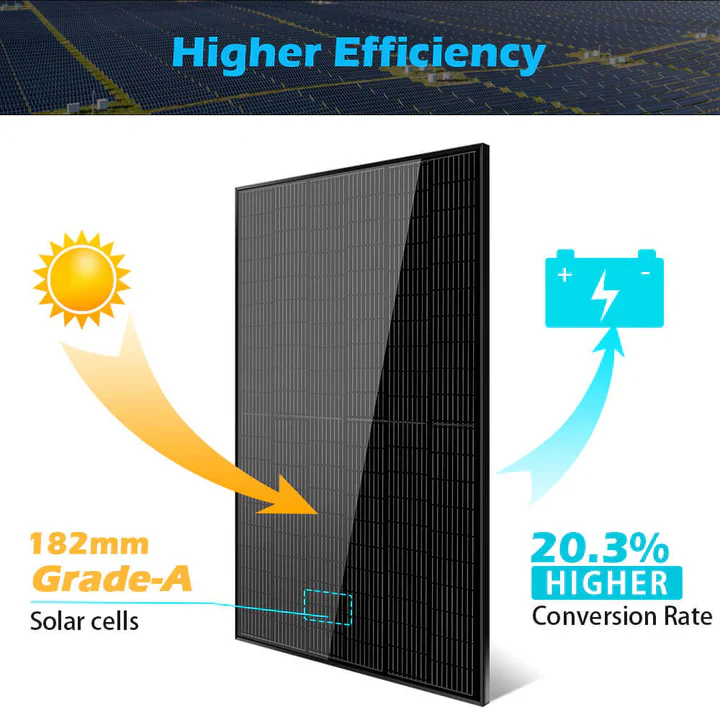

High efficiency
High efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.

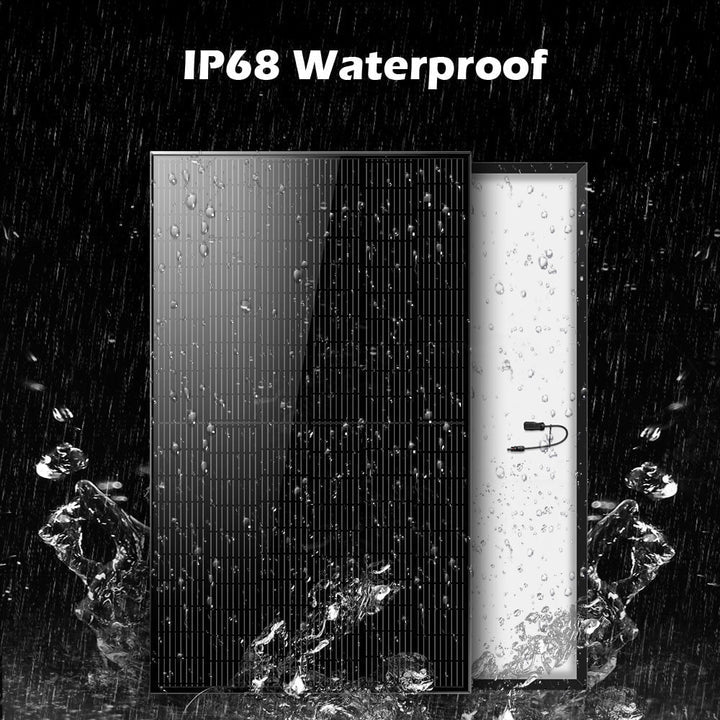

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

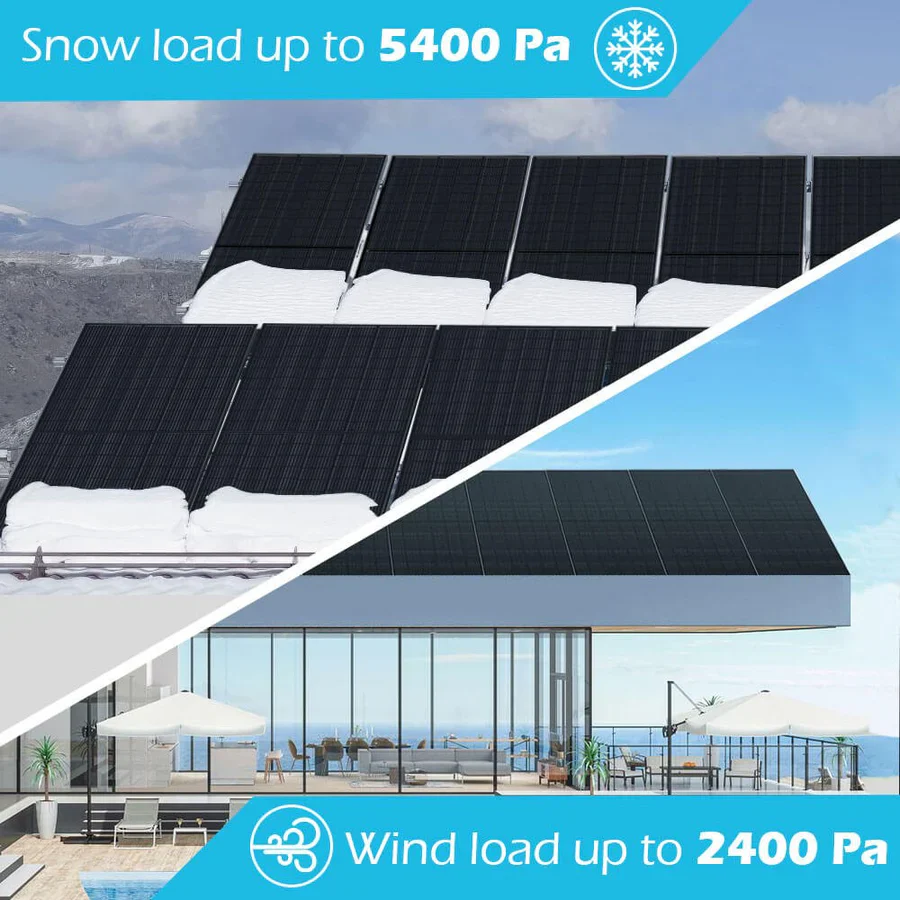

Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Wide Application
With balanced power, improved stability, and economical electricity costs.
Product Specifications
SunGold Power 370W Mono Black PERC Solar Panel Product Specifications
| Model Type | SG370WM |
|---|---|
| Peak Power (Pmax) | 370W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 11.15 A |
| Maximum Power Voltage (Vmp) | 33.2V |
| Short Circuit Current (Isc) | 11.81A |
| Open Circuit Voltage (Voc) | 40.17V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 120(6*20) |
| Cell Type | Mono182mm |
| Certifications | UL 61730 CE TUV |
| Product Weight | 41.8lbs |

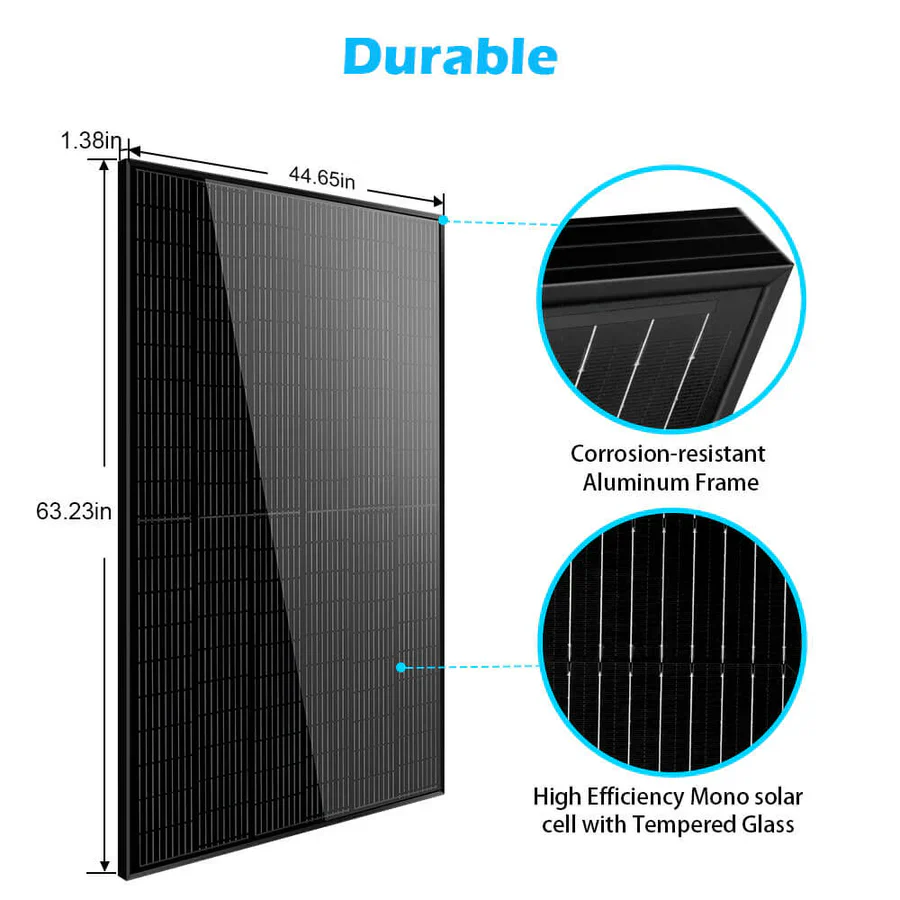

| Product Dimension | 63.23*44.65*1.38inch (1606*1134*35mm) |
| Package Weight | 93.5lbs（2PCS） |
| Package Dimension | 66.02*47.64*3.54inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 12 years |
Product Manual
SunGold Power 370W Mono Black PERC Solar Panel Product Manual
Product Warranty
SunGold Power Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungold Power products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:
Order number
Video or photo of the faulty product (if applicable)
The item with the original packaging.
REFUNDS (IF APPLICABLE)
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.
If you have any further questions, please send an e-mail to [email protected]
Product FAQs
SunGold Power 370W Mono Black PERC Solar Panel UL 61730 FAQs
1. Is it waterproof?
Dear Customer, yes, this solar panel is waterproof.
Original: $679.00
-65%$679.00
$237.65Product Information
