SunGold Power 3000W DC 12V Low Frequency Inverter

Product Specifications

SunGold Power 3000W DC 12V Low Frequency Inverter Product Specifications:

Main Features:

• *3000W Low Frequency Pure Sine Inverter With Charger.
• *AC/Battery Priority Selector.
• *Automatic Generator Start.
• *GFCI Socket, Safety and Convenient.
• *The low frequency inverter can power all kinds of appliances.
• *LCD Display, BTS including.
• *Low Idle Consumption.

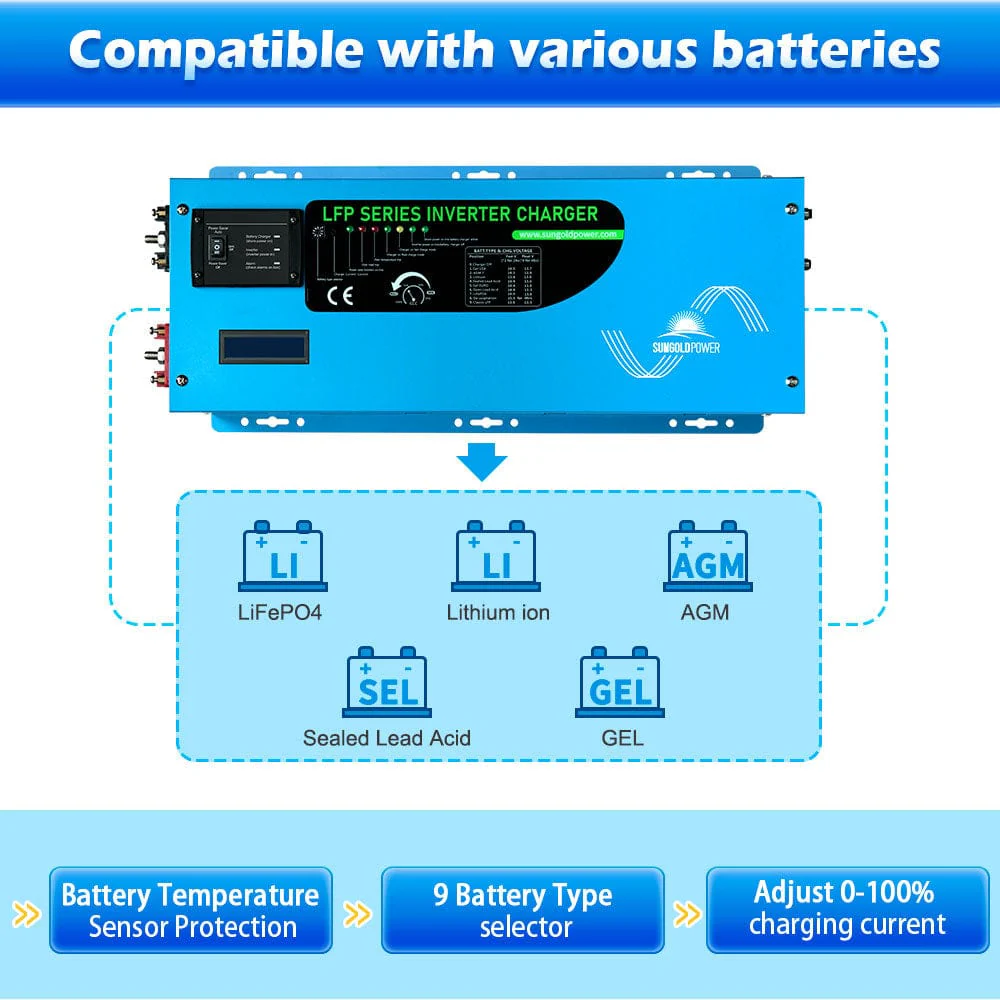

• *9 battery type settings for charger.
• *Multi Stage Smart charger 90+/-5A, charger can be disable.
• *10msec typical transfer time.

Inverter Output:

• *Continuous Output Power: 3000W
• *Surge Rating: 9000W (20 Seconds)
• *AC Output: 120VAC
• *AC Input: 120VAC
• *Output Wave: Pure Sine Wave (bypass mode)
• *Typical Transfer Time: 10ms (MAX)
• *Nominal Efficiency: >88%

DC Input:

• *Nominal Input Voltage: 12.0Vdc
• *Minimum Start Voltage: 10.0Vdc
• *Low Battery Alarm: 10.5Vdc-11.0Vdc
• *Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• *High Voltage Alarm: 16.0Vdc
• *Low battery Voltage Restart: 13Vdc
• *Idle Consumption: 55W
• *Power Saver Mode Idle Consumption: 20W

AC Charger :

• *Charger Rate: 90+/-5A
• *AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
• *Over Charge Protection Shutdown:15.7V
• *Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
• *3-step intelligent battery charger

Packaging:

• *3000W 12V Low Frequency Pure Sine Inverter
• *English Manual
• *BTS Cable
• *Unit Weight: 49LB

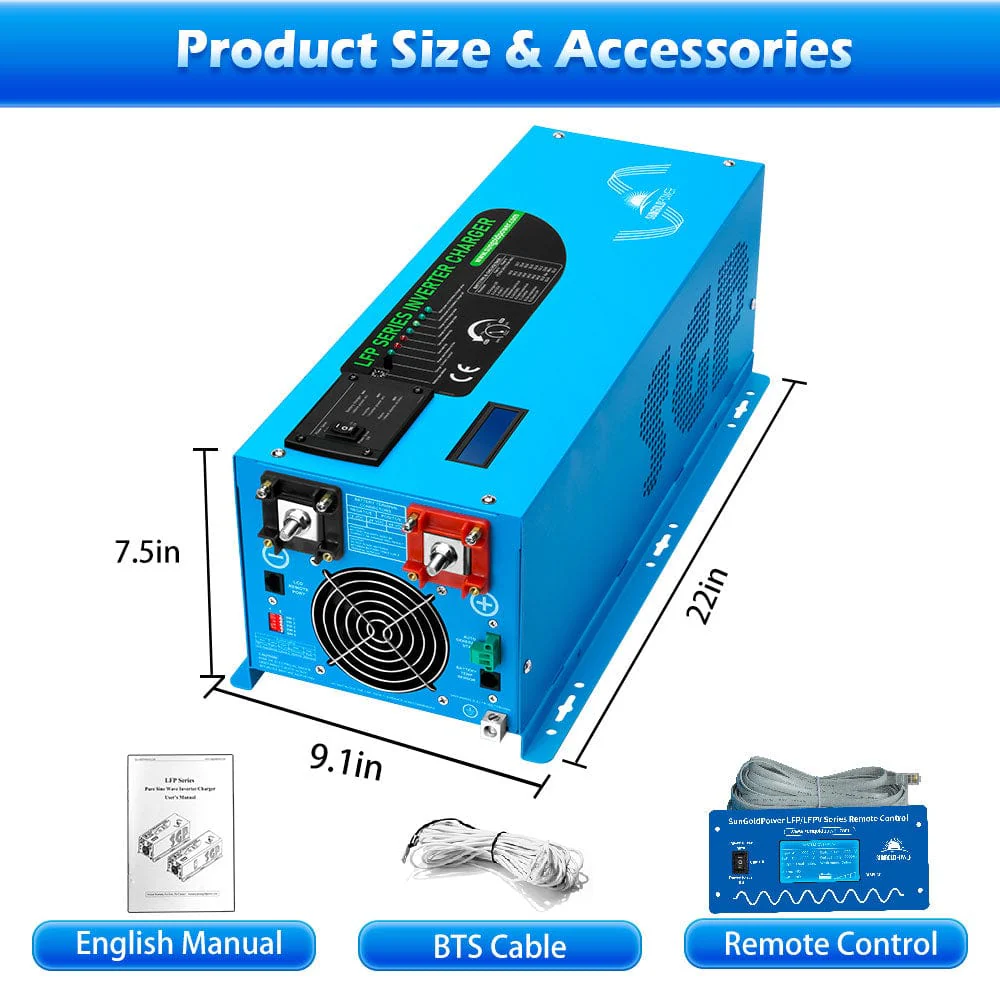

• *Unit Size: 22.05 x 9.1 x 7.5 inch
• *Shipping Weight: 57.3LB
• *Shipping Size: 26.8 x 13.4 x 13 inch

Product Manual

LFP Series Pure Sine Wave Inverter/Charger User's Manual

Product Warranty

SunGold Power Warranty

WARRANTY PERIOD

The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.

EXCLUSIONS

Sungoldpower's warranty does not apply to:

Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.

Attempted repair by anyone other than an authorized facility.

If any modified products received will be returned to you at your expense.

REPLACEMENTS

Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.

If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)

PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

Order number

Video or photo of the faulty product (if applicable)

The item with the original packaging.

REFUNDS (IF APPLICABLE)

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

If you have any further questions, please send an e-mail to [email protected]

Product FAQs

SunGold Power 3000W DC 12V Low Frequency Inverter FAQs

Is it compatible with AGM batteries?

Yes, it is compatible with AGM batteries, thanks.

Is the Transfer Switch 30 or 50 amp?

The transfer switch is 30amp

When using battery priority what happens when the battery is drained, does it auto switch to AC and continue inverting or does it just turn on alarm?

When the battery voltage is low, it will auto switch to AC for charging, thanks.

Can this charger/inverter be used with lithium ion batteries?

Yes, it can used with lithium iron batteries.
