Sol-Ark 5K-2P | 5kW All-in-One Hybrid Inverter | 120/240VAC Split Phase | 48VDC | Indoor/Outdoor | NEMA-3R
Sol-Ark 5K-2P | 5kW All-in-One Hybrid Inverter | 120/240VAC Split Phase | 48VDC | Indoor/Outdoor | NEMA-3R
Description

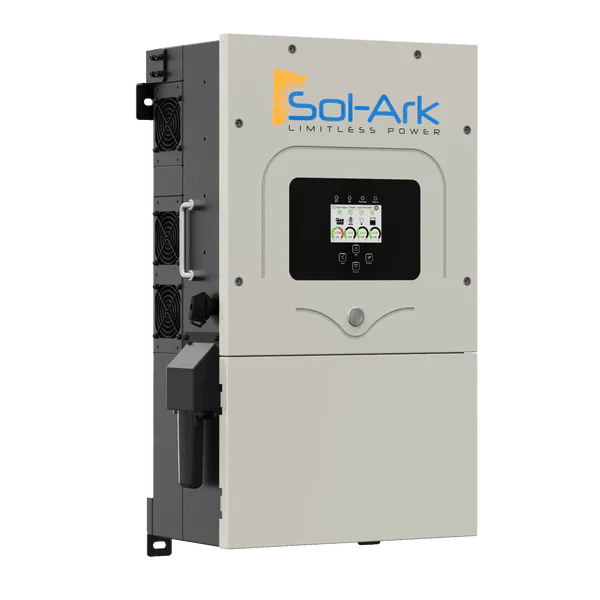

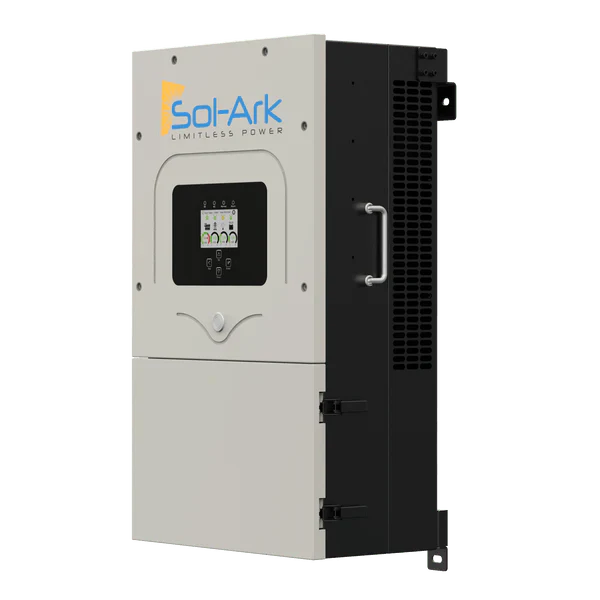

Sol-Ark 5K-2P Split-Phase Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from solar, battery, grid, loads, and generator.
- Easy Install - The 5K-2P inverter comes with everything you need to install it. Nicely packaged for added efficiency
- Fleet Management - With Sol-Ark's remote access features and app you are never out of touch to quickly repair or adjust any system without being on site
- Warranty & Reliability - Comes with our award winning iron clad warranty and our 7 day a week live engineering support to assist you in all your needs
Product Specifications
Sol-Ark 5K-2P | 5kW All-in-One Hybrid Inverter | 120/240VAC Split Phase | 48VDC | Indoor/Outdoor | NEMA-3R Product Specifications
| Input Data (PV) | ||
| Max Allowed PV Power | 6500W | |
| Rated MPPT Operating Voltage Range | 175 - 425 V | |
| MPPT Voltage Range | 150 - 500 V | |
| Starup Voltage | 125V | |
| Max Input Voltage | 500V | |
| Max. Operating Input Current per MPPT | 10A (self-limiting) | |
| Number of MPPT | 2 | |
| Number of PV Strings Per MPPT | 2 | |
| Max AC Coupled Input (Micro / String Inverters) | 9600W | |
| Output Data (AC) | ||
| Nominal Data (AC) | 120/240V, 120/208V, 220V | |
| Grid Frequency |
5000 W |
|
| Real Power, max continuous | 150 - 500 V | |
| Peak Apparent Power (10s, off-grid) | 16,000VA @ 240V | |
| Surge AC Power 100ms | 25,000VA @ 240V | |
| Max Output Fault Current (100ms) | 104A | |
| Max. Grid Passthrough Current | 63A | |
| Power Factor Output Range | +/- 0.9 adjustable | |
| Backup Transfer Time | 4ms | |
| CEC Efficiency | 96.5% | |
| Max Efficiency | 97.5% | |
| Design (DC to AC) | Transformerless DC | |
| Stackable | No | |
| Battery Input Data (DC) | ||
| Battery Technologies | Lithium / Lead Acid | |
| Nominal DC Voltage | 48V | |
| Operating Voltage Range | 43 - 63 V | |
| Capacity | 50 — 9900Ah | |
| Max Battery Charge / Discharge Current | 120A | |
| Charging Controller | 3-Stage w/ Equalization | |
| Grid to Battery Charging Efficiency | 96.0% | |
| External Battery Temperature Sensor (BTS) | Included | |
| Automatic Generator Start (AGS) | 2 Wire Start Integrated | |
| BMS Communication | CANBus & RS485 MODBUS | |
| General | ||
| Dimensions (H x W x D) |
750 x 450 x 254 mm (29.5 x 17.7 x 10 in) | |
| Weight | 78.0 lbs / 35.4 kg | |
| Enclosure | IP65 / NEMA 3R | |
| Ambient Temperature | -25 - 55°C, >45°C Derating | |
| Noise | < 30 dB @ 25°C (77°F) | |
| Idle consumption - No Load | 60W | |
| Communication and Monitoring | Wi-Fi & LAN Hardware Included | |
| Standard Warranty | 10 Years | |
Product Manuals
Product Warranty
Limited Warranty: Sol-Ark 5K-2P-N
10-Year Limited Warranty for Sol-Ark LLC Products. Sol-Ark LLC provides a Ten-year (10) limited
Warranty ("Warranty") against defects in materials and workmanship for its Sol-Ark LLC products
("Product"). The term of this warranty begins on the Product(s) initial purchase date, or the date
of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the
invoice, bill of sale from your installer. This warranty applies to the original Sol-Ark LLC Product
purchaser and is transferable only if the Product remains installed in the original use location.
Please call Sol-Ark LLC to let us know if you are selling your Home and give us name and contact
of the new owner.
The warranty does not apply to any Product or Product part that has been modified or damaged by the following:
• Installation or Removal (examples: wrong voltage batteries, connecting batteries backward, damage due to water/rain to
electronics, preventable damage to solar wires.)
• Alteration or Disassembly.
• Normal Wear and Tear.
• Accident or Abuse.
• Unauthorized Firmware updates/software updates or alterations to the software code.
• Corrosion.
• Lightning: unless using EMP hardened system, then Sol-Ark LLC will repair the product.
• Repair or service provided by an unauthorized repair facility.
• Operation or installation contrary to manufacturer product instructions.
• Fire, Floods, or Acts of Nature.
• Shipping or Transportation.
• Incidental or consequential damage caused by other components of the power system.
• Any product whose serial number has been altered, defaced, or removed.
• Any other event not foreseeable by Sol-Ark LLC
Sol-Ark LLC liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Sol-Ark
LLC discretion. Sol-Ark LLC does not warrant or guarantee workmanship performed by any person or firm installing its Products. This warranty
does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products. LCD
screen and fans are covered for 5 years from date of purchase.
THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY APPLICABLE TO SOL-ARK LLC PRODUCTS. SOL-ARK LLC EXPRESSLY DISCLAIMS
ANY OTHER EXPRESS OR IMPLIED WARRANTIES OF ITS PRODUCTS. SOL-ARK LLC ALSO EXPRESSLY LIMITS ITS LIABILITY IN THE EVENT
OF A PRODUCT DEFECT TO REPAIR OR REPLACEMENT IN ACCORDANCE WITH THE TERMS OF THIS LIMITED WARRANTY AND
EXCLUDES ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR
PRODUCTS NOT BEING AVAILABLE FOR USE OR LOST REVENUES OR PROFITS, EVEN IF IT IS MADE AWARE OF SUCH POTENTIAL
DAMAGES.
Product FAQs
N/A
