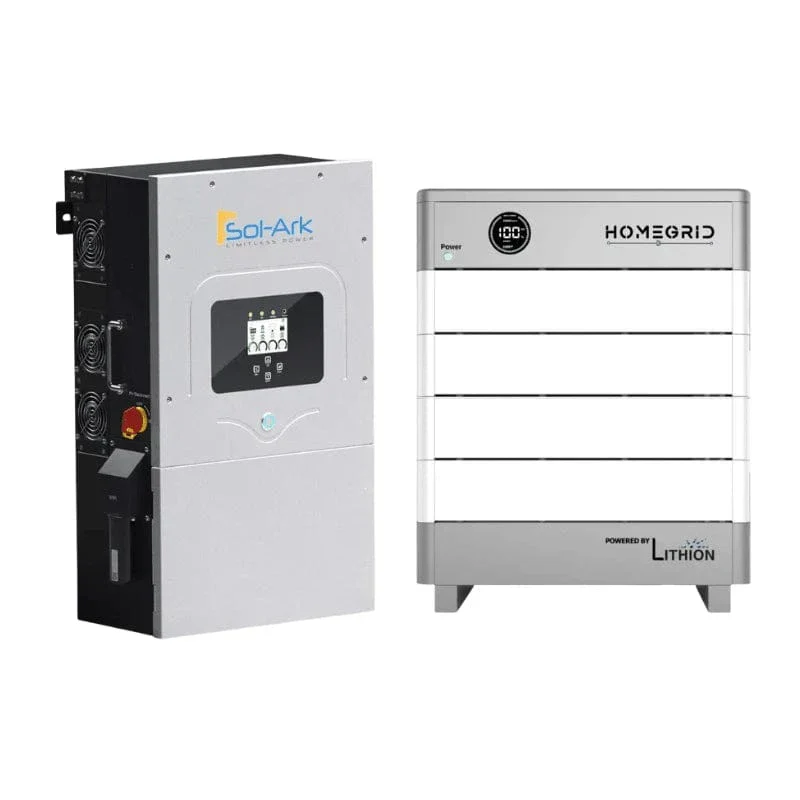

Sol-Ark + Homegrid Hybrid Power Kit | 12kW 120/240V Output 48VDC - 19.2kWh System Bundle | Sol-Ark SA-12K-2P Hybrid Inverter + HomeGrid STACK'D 4X Battery System
Sol-Ark + Homegrid Hybrid Power Kit | 12kW 120/240V Output 48VDC - 19.2kWh System Bundle | Sol-Ark SA-12K-2P Hybrid Inverter + HomeGrid STACK'D 4X Battery System
Sol-Ark Inverter + HomeGride Power Bundle
Sol-Ark-12K: The Sol-Ark 12k is a great choice stackable solar/hybrid inverter! It’s an all-in-one, pre-wired inverter with built-in charge controllers and many other built-in features fitted as standard. It is flexible, efficient, and affordable. Everything you need comes in one box, keeping your cost LOW and installation SIMPLE. 10-year Standard Warranty.
HomeGrid Stack'd Series LFP - 4 Stack: This home battery is modular with 4.8 kWh increments, providing a capacity range of 9.6-38.4 kWh per Stack. This also allows for easy servicing and future expansion. With continuous output at up to 15 kW, and a surge of up to 24 kW for 10 seconds, true full-home backup is here. 1 Base, 4 4.8kWh Modules, total 19.2kWh Capacity
What's Included?
- Sol-Ark 12k Inverter Qty 1
- HomeGrid Stack'd 14.4kWh (4 modules) 48 V Qty 4
- 6ft, 4.0 AWG, Cables, Lug 3/8 Qty 1
Product Specifications
Sol-Ark SA-12K-2P Product Specifications
- Max. Allowed PV Power (STC): 13,000W
- Rated MPPT Operating Voltage Range: 175 - 425V
- MPPT Voltage Range: 150 - 500V
- Startup Voltage: 125V
- Max. DC Input Voltage: 500V
- Max. Operating Input Current per MPPT: 20A (self-limiting)
- Max. AC Coupled Input: 9,600W
- Nominal AC Voltage: 120/240V, 120/208V, 220V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous: 9,000W
- Max output current: 37.5A
- Dimensions: 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
- Weight: 35.4 kg / 78 lb.
- Enclosure: IP65 / NEMA 3R
- Ambient Temperature: -25~55°C, > 45°C Derating
- Noise: < 30 dB @ 25°C (77°F)
- Idle Consumption - No Load: 60W
- Communication & Monitoring: Wi-Fi & LAN Hardware Included
- Certification and Listings: UL1741-2010/2018, IEEE1547a 2003/2014,
FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
HomeGrid STACK'D 19.2kWh Lithium Home Battery System - 4X Product Specifications
Product Manuals
Sol-Ark SA-12K-2P Hybrid Inverter Product Manuals
HomeGrid STACK'D Product Manuals
Stack'd Install Guide
Stack'd Series Single Installation Video
Stack'd Series Parallel Installation Video
Stack'd Series Full Manual
Stack'd Series Specification Sheets
Product Warranty
Sol-Ark SA-12K-2P Product Warranty
HomeGrid STACK'D Product Warranty
HomeGrid Battery Warranty
Product FAQs
N/A
