Sol-Ark + Homegrid Hybrid Power Kit | 12kW 120/240V Output 48VDC - 14.4kWh System Bundle | Sol-Ark SA-12K-2P Hybrid Inverter + HomeGrid STACK'D 3X Battery System

Sol-Ark + Homegrid Hybrid Power Kit | 12kW 120/240V Output 48VDC - 14.4kWh System Bundle | Sol-Ark SA-12K-2P Hybrid Inverter + HomeGrid STACK'D 3X Battery System

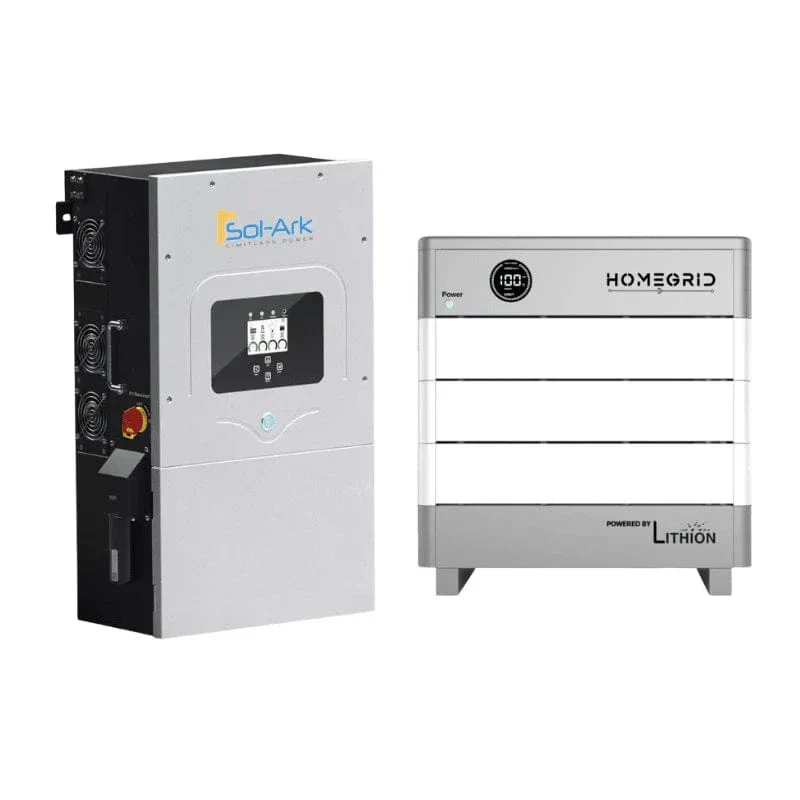

Sol-Ark Inverter + HomeGride Power Bundle

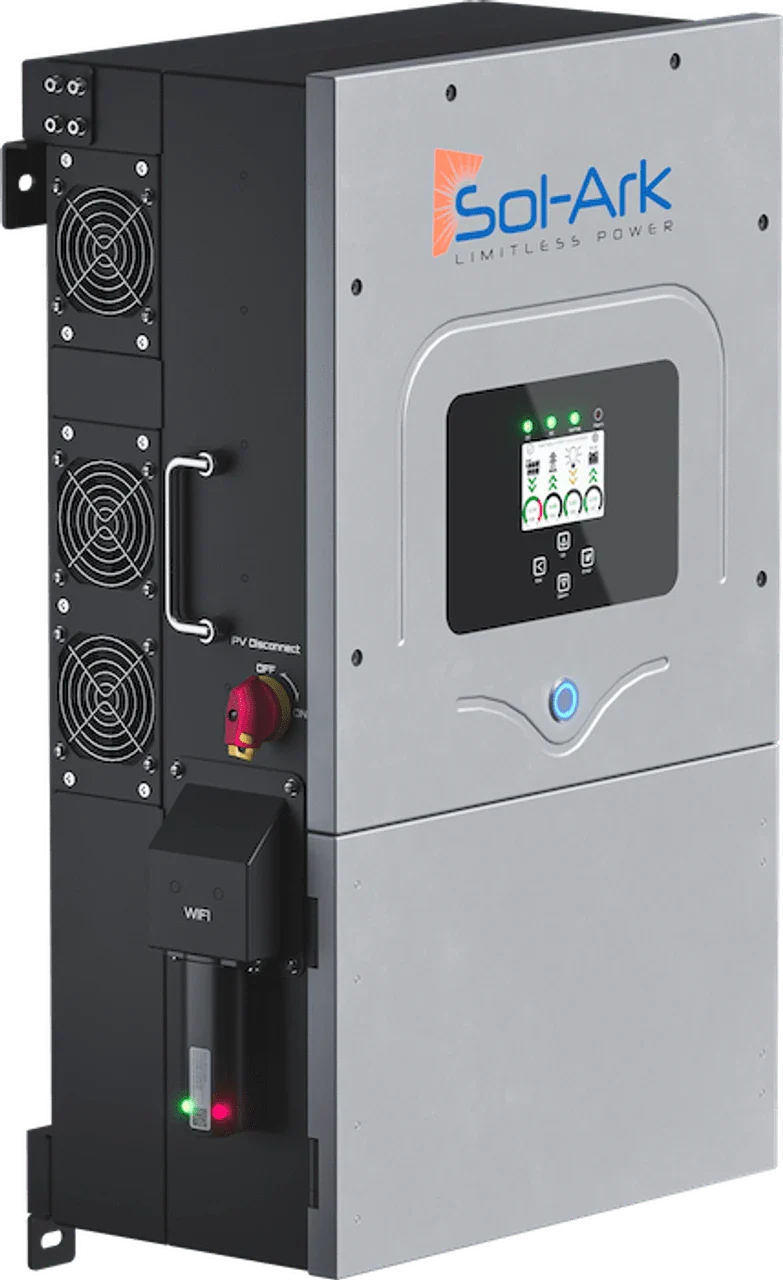

Sol-Ark-12K: The Sol-Ark 12k is a great choice stackable solar/hybrid inverter! It’s an all-in-one, pre-wired inverter with built-in charge controllers and many other built-in features fitted as standard. It is flexible, efficient, and affordable. Everything you need comes in one box, keeping your cost LOW and installation SIMPLE. 10-year Standard Warranty.

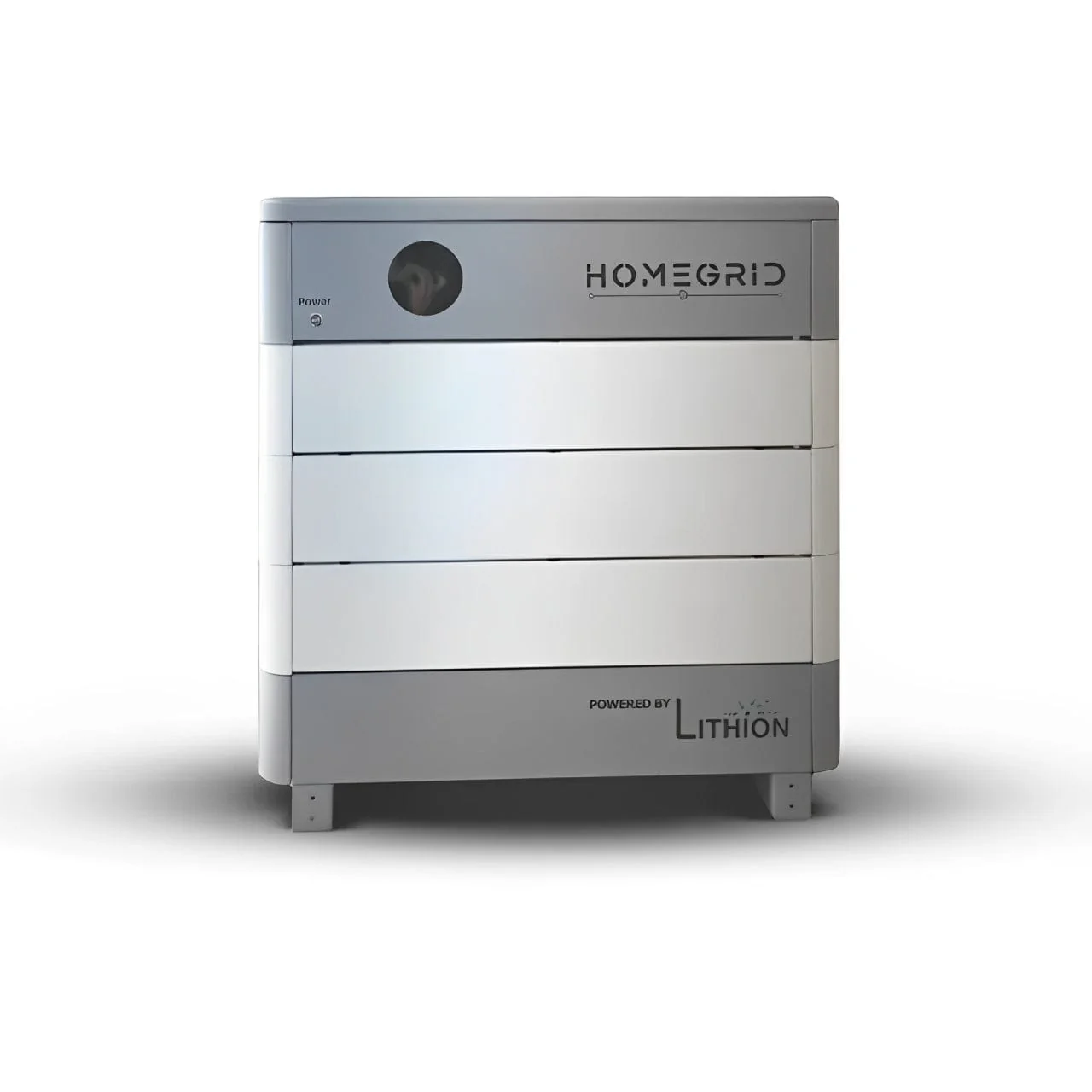

HomeGrid Stack'd Series LFP - 3 Stack: This home battery is modular with 4.8 kWh increments, providing a capacity range of 9.6-38.4 kWh per Stack. This also allows for easy servicing and future expansion. With continuous output at up to 15 kW, and a surge of up to 24 kW for 10 seconds, true full-home backup is here. 1 Base, 3 4.8kWh Modules, total 14.4kWh Capacity

What's Included?

• Sol-Ark 12k Inverter Qty 1
• HomeGrid Stack'd 14.4kWh (3 modules) 48 V Qty 3
• 6ft, 4.0 AWG, Cables, Lug 3/8 Qty 1

Product Specifications

Sol-Ark SA-12K-2P Product Specifications

• Max. Allowed PV Power (STC): 13,000W
• Rated MPPT Operating Voltage Range: 175 - 425V
• MPPT Voltage Range: 150 - 500V
• Startup Voltage: 125V
• Max. DC Input Voltage: 500V
• Max. Operating Input Current per MPPT: 20A (self-limiting)

• Max. AC Coupled Input: 9,600W
• Nominal AC Voltage: 120/240V, 120/208V, 220V
• Grid Frequency: 50 / 60Hz
• Real Power, max continuous: 9,000W

• Max output current: 37.5A
• Dimensions: 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
• Weight: 35.4 kg / 78 lb.
• Enclosure: IP65 / NEMA 3R
• Ambient Temperature: -25~55°C, > 45°C Derating
• Noise: < 30 dB @ 25°C (77°F)
• Idle Consumption - No Load: 60W
• Communication & Monitoring: Wi-Fi & LAN Hardware Included
• Certification and Listings: UL1741-2010/2018, IEEE1547a 2003/2014,
  FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

HomeGrid STACK'D 19.2kWh Lithium Home Battery System - 3X Product Specifications

Product Manuals

Sol-Ark SA-12K-2P Hybrid Inverter Product Manuals

HomeGrid STACK'D Product Manuals

Stack'd Install Guide

Stack'd Series Single Installation Video

Stack'd Series Parallel Installation Video

Stack'd Series Full Manual

Stack'd Series Specification Sheets

Product Warranty

Sol-Ark SA-12K-2P Product Warranty

12K-2P-N Product Warranty

HomeGrid STACK'D Product Warranty

HomeGrid Battery Warranty

Product FAQs

N/A
