Simrad V3100 Class B AIS [000-14380-001]
Description
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
Click here to download form.

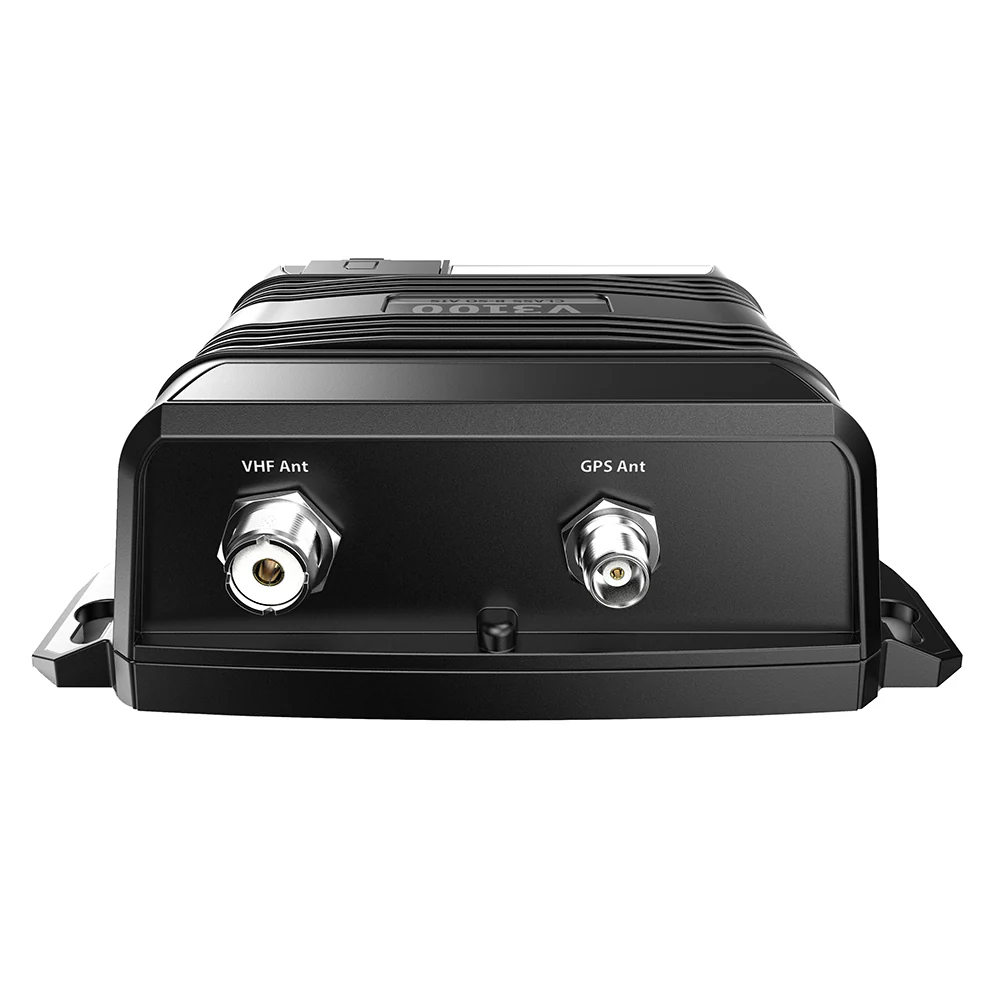

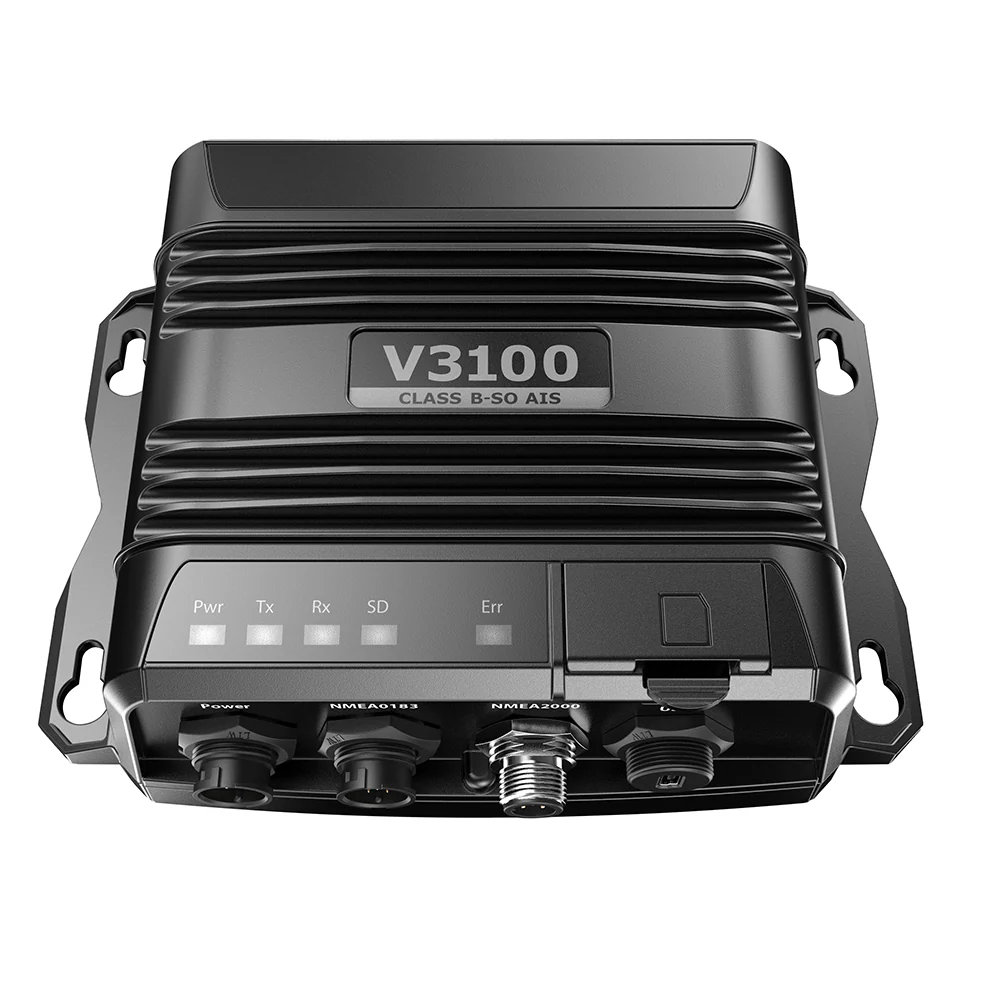

V3100 Class B AIS
The V3100 Class B AIS incorporates SOTDMA technology and increased transmission power to enhance transmission frequency, reliability, and range compared to standard Class B AIS. This ‘black-box’ solution integrates with Simrad displays, and features industry-standard connectivity.
Increased Transmission Frequency and Reliability
The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organizing transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.
Increased Transmission Range
The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range and provides more reliable transmission to satellite-based AIS receivers.
Integrated ‘Black-Box’ Solution
This ‘black box’ AIS solution is designed to work with Simrad multifunction displays, and other NMEA 2000® or NMEA 0183® connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing and includes a built-in SD card slot for standalone AIS data logging.
Features:
- Enhanced performance compared to standard Class B AIS
- Transmit over greater distances with 5-watt output power
- Transmit more frequent position updates with SOTDMA
- Greater transmission reliability in high-traffic areas
- Integrated ‘black-box’ solution

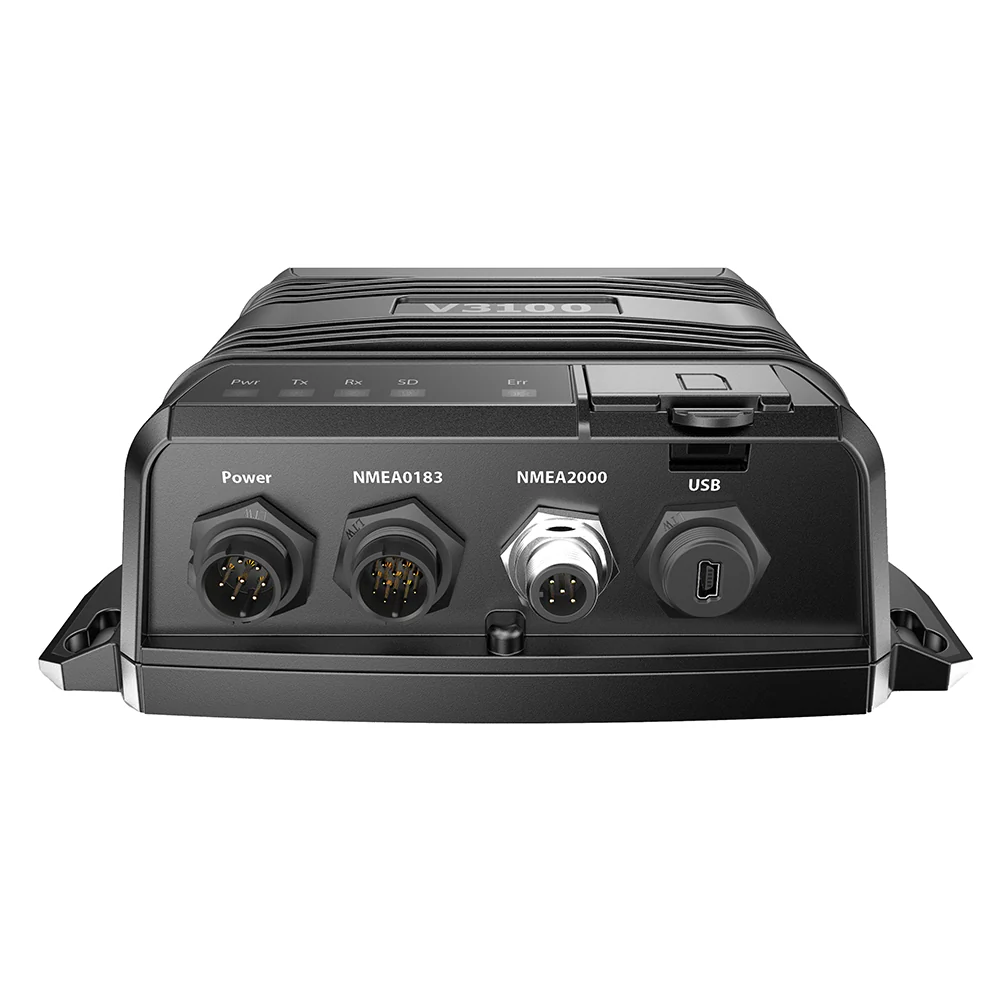

- NMEA 2000®, dual NMEA 0183®, and USB connectivity
- IP67 water-resistant housing
- Built-in SD card slot for AIS data logging
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Product Specifications
Simrad V3100 Class B AIS [000-14380-001] Product Specifications
Specifications:
Physical
AIS
Features
Connectivity
Approvals
-
CE, FCC, IC, RCM, EN 60945
Other
Product Manual
V3100 Operator Manual
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Product FAQ's
N/A
