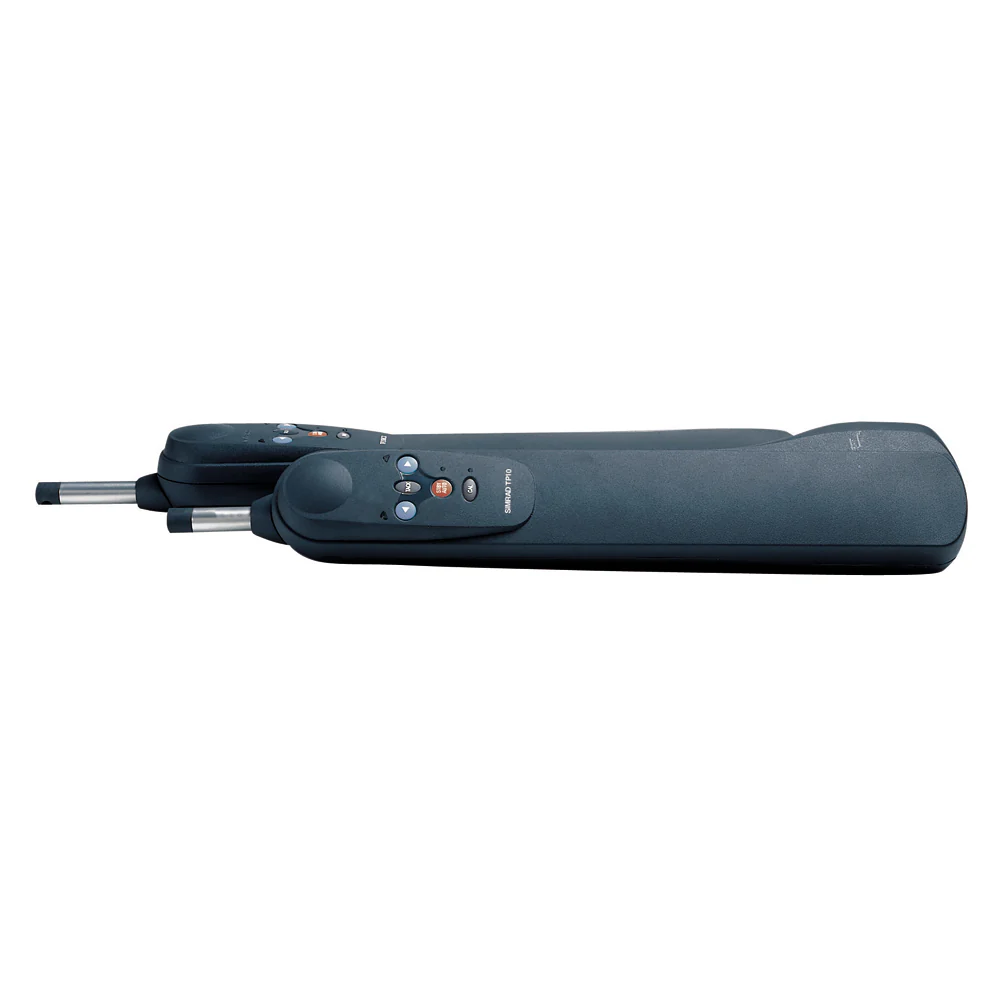

Simrad TP22 Tillerpilot [TP22]

Simrad TP22 Tillerpilot [TP22]

Simrad TP22 Tillerpilot [TP22]

Description

The TP22 is a reliable and robust autopilot for tiller steered boats up to 34ft in length. Low power draw and precise steering capabilities couple together with minimal noise, allowing you to enjoy some smooth sailing.

Features:

  • Easy to use
  • Precision steering
  • Battery optimization
  • Silent sailing
  • Waterproof sealing
  • SimNet compatible

Easy To Use
A simple selection of controls enable straightforward selection of the adjustments you require.

Precision Steering
Outstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.

Battery Optimization
Low power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.

Silent Sailing
The TP range of autopilots have been designed with minimal noise in mind. They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.

Waterproof Sealing
Protection from the elements.

SimNet Compatible
Simple plug & play installation, even DIY.

Product Specifications

Simrad TP22 Tillerpilot [TP22] Product Specifications

Specifications:

  • Steering Type: Tiller

  • Box Dimensions: 7"H x 10"W x 25"L

  • Weight: 7 lbs

  • UPC: 098964113874

  • Max. Recommended Vessel Displacement: 10,000 lbs

  • Mounting: Starboard as default, reversible

  • Drive Mechanism: Screw thread

  • Nominal Supply Voltage: 12V DC

  • Operating Voltage Range: 10 - 16V DC

  • Current Consumption: 60 mA (standby), 500 mA (auto)

  • NMEA Format: Compliant with NMEA 0183 versions 2.0, 2.3, and 3.0

  • Drive Unit Peak Thrust: 154 lbs

  • Stroke: 10"

  • Dimensions (Mid-Stroke): 4" W x 2.3" H x 24" L

Product Manual

Owner's Manual (pdf)

Brochure (pdf)

Product Warranty

Simrad Warranty

Product FAQ's

N/A
