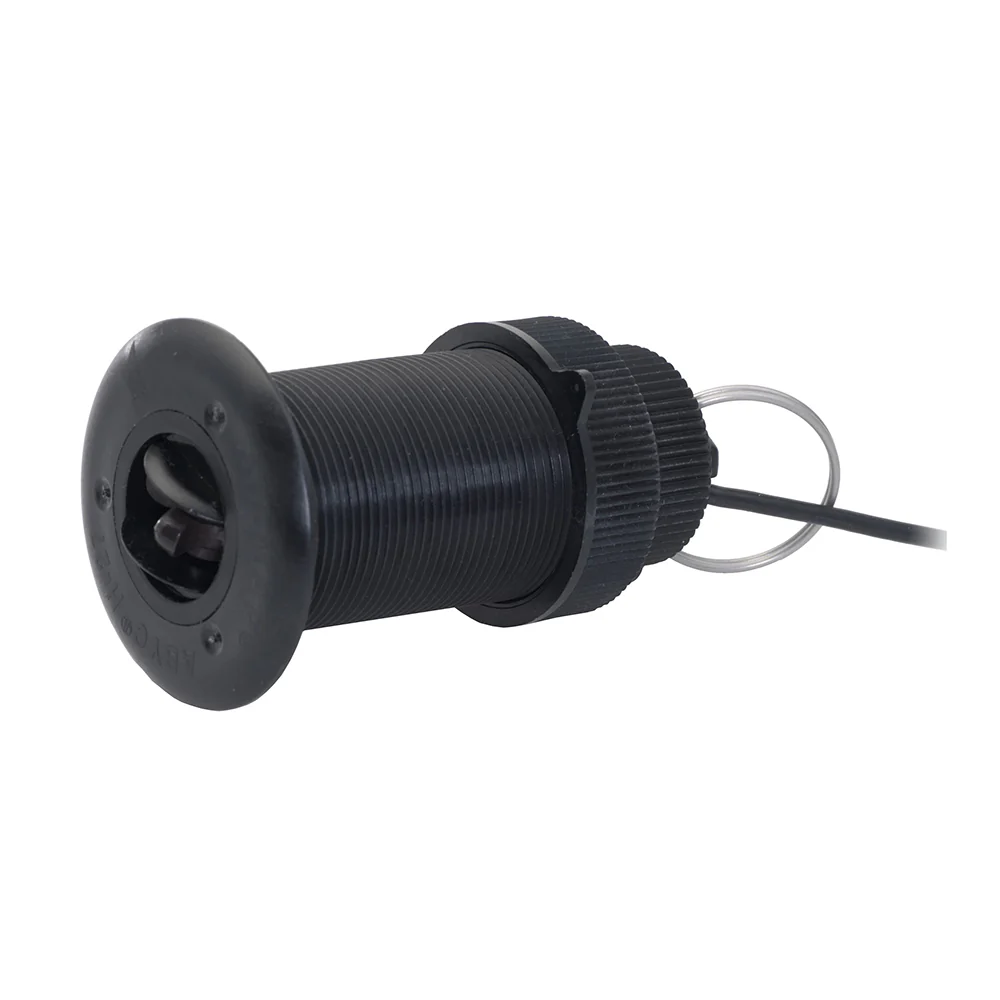

Simrad ST850 Speed/Temp Plastic Transducer [22098586]

Simrad ST850 Speed/Temp Plastic Transducer [22098586]

Simrad ST850 Speed/Temp Plastic Transducer [22098586]

Description

The Simrad ST850 is a passive (analog) sensor, designed to connect to the 22098560 D800 Depth plastic thru-hull transducer. It provides accurate speed and water temperature readings, making it ideal for small to medium vessels. Easy to install and fully submersible, the ST850 ensures consistent operation in a range of marine environments.

Features:

  • ST850-P617V Speed and Temperature Sensor
  • 5-Pin Connector

Product Specifications

Simrad ST850 Speed/Temp Plastic Transducer [22098586] Product Specifications

Specifications:

    Physical

    • Mounting Type: Through-hull

    • Transducer Material: Plastic

    • Cable Length: 12 ft (3.66 m)

    • Weight: 1 lb (0.45 kg)

    Electrical

    • Supply Voltage: 12 V DC

    • Power Consumption: Typical 0.5 W

    Environmental

    • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

    • Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)

    • Waterproof Rating: Fully submersible

    Connectivity

    • NMEA 2000 Compatibility: No

    • Output: Analog speed & temperature signals

    Features

    • Temperature: Yes

    • Speed Included: Yes

    Other

    • Type: Parts

    • Box Dimensions: 4"H x 6"W x 8"L

    • Weight (Boxed): 1.3 lbs

    • UPC: 421949015038

    Product Manual

    N/A

    Product Warranty

    Simrad Warranty

    Product FAQ's

    N/A

    $42.35

    Original: $120.99

    -65%
    Simrad ST850 Speed/Temp Plastic Transducer [22098586]—

    $120.99

    $42.35
