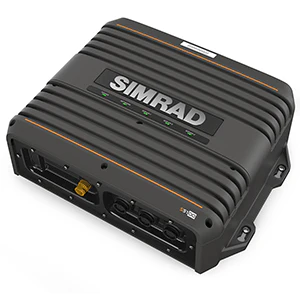

Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]

Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]

Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]

Description

The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.

Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.

Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Features:

  • 3 fully independent sonar channels deliver high-resolution coverage
  • Noise-free clarity at all depth ranges
  • Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
  • Compatible with wide-angle CHRIP transducers for greater coverage of the water column
  • Simultaneous split-screen viewing of multiple depth ranges on your display
  • Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
  • Easy to install with three plug-and-play 9-pin transducer connectors
  • Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders

Product Specifications

Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001] Product Specifications

Physical & Shipping

  • Dimensions: 340 x 100 x 250 mm excluding connectors (378 mm D including connectors) / 13.4 x 3.9 x 9.8 in excluding connectors (14.8 in including connectors)

  • Mounting Type: Bulkhead

  • Weight: 4.7 kg (10.4 lbs)

Electrical

  • Supply Voltage: 12 or 24 V DC (10.4–31.2 V)

  • Power Consumption: Max 85 W, Typical 23 W

  • Recommended Fuse Rating: 5A

Environment

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)

  • Humidity: Up to 95% at 35°C (95°F) non-condensing

  • Shock & Vibration: According to IEC 60945

  • Waterproof Rating: IPX5

Connectivity

  • Ethernet Ports: 1 x 100 Mbps

  • NMEA 2000 PGNs: None

Radar

  • Output Power: Up to 3 kW depending on transducer

Interface

  • Ethernet: 1 x 100 Mbps

Approvals

  • EMC Directive 2014/30/EU

Warranty

  • 2 Years

Product Manual

S5100 Installation Manual

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$2,298.00
Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]—
$2,298.00
