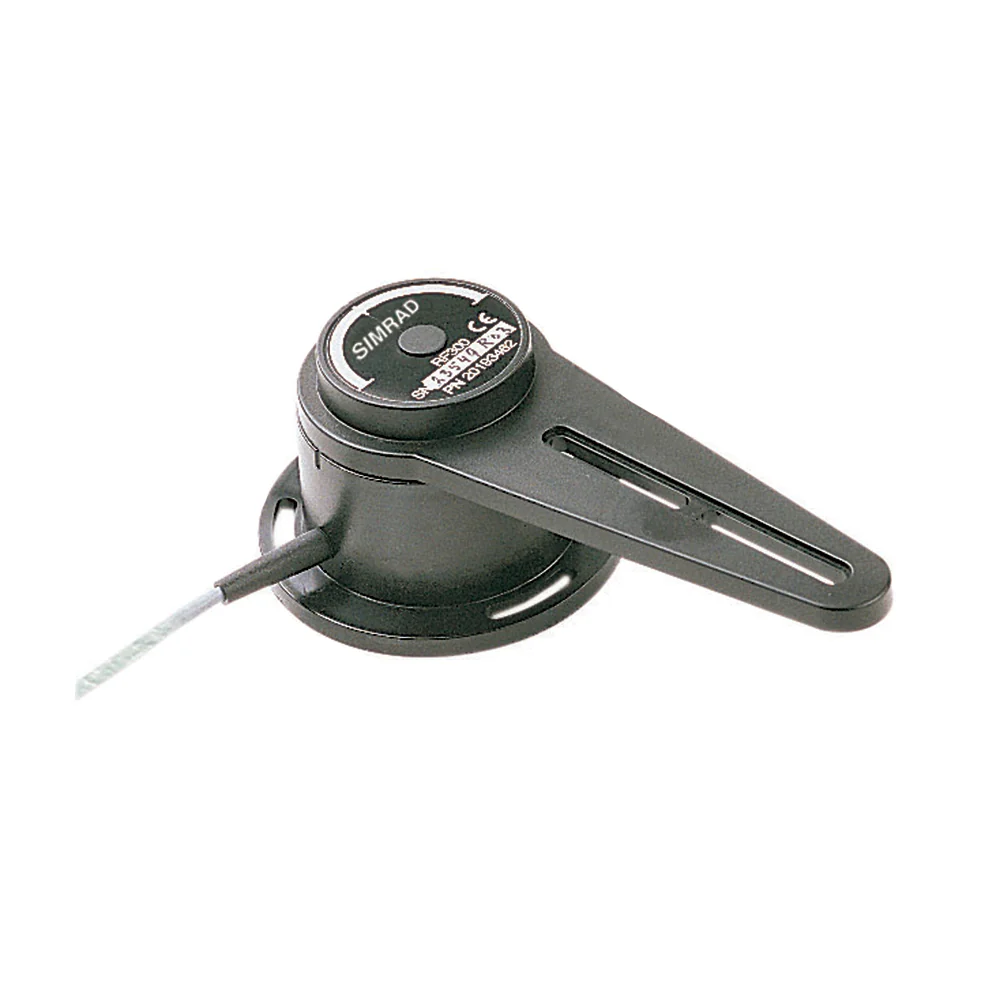

Simrad RF300 Rudder Feedback [20193744]

Simrad RF300 Rudder Feedback [20193744]

Simrad RF300 Rudder Feedback [20193744]

Description

Simrad rudder feedback units are high resolution units which contribute to gentle yet accurate steering that characterize the Simrad autopilots. They are rugged units designed to withstand the environment. Though Simrad now offers the virtual rudder feedback VRF™ for outboards and stern drive boats up to 40', it is neccessary to display rudder angle on your autopilot.

Product Specifications

Simrad RF300 Rudder Feedback [20193744] Product Specifications

Specifications:

Physical

  • Compass Safe: 0.5 m (19.7")

  • Dimensions (W x H x D): 99 x 65 x 177 mm (3.90 x 2.56 x 6.97")

  • Mounting Type: Horizontal, Vertical, Upside-down

  • Weight: 0.5 kg (1.1 lbs)

Electrical

  • Power Consumption Max: 40 mA (from CAN)

  • Power Consumption Typical: 40 mA (from CAN)

  • Supply Voltage: 12-16 V via CAN

Environment

  • Operating Temperature Range: -10°C to +55°C (14°F to +131°F)

  • Storage Temperature Range: -30°C to +80°C (-22°F to +176°F)

  • Waterproof Rating: IPx6

Other

  • Warranty Period: 2 years

  • Type: Parts

  • Box Dimensions: 3"H x 4"W x 15"L

  • WT: 1.7 lbs

  • UPC: 809190313484

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$128.10

Original: $366.00

-65%
Simrad RF300 Rudder Feedback [20193744]—

$366.00

$128.10
