Simrad RF25N Rudder Feedback w/Link & Micro-C Cable - 5M [000-10756-001]

Simrad RF25N Rudder Feedback w/Link & Micro-C Cable - 5M [000-10756-001]

Simrad RF25N Rudder Feedback w/Link & Micro-C Cable - 5M [000-10756-001]

Description

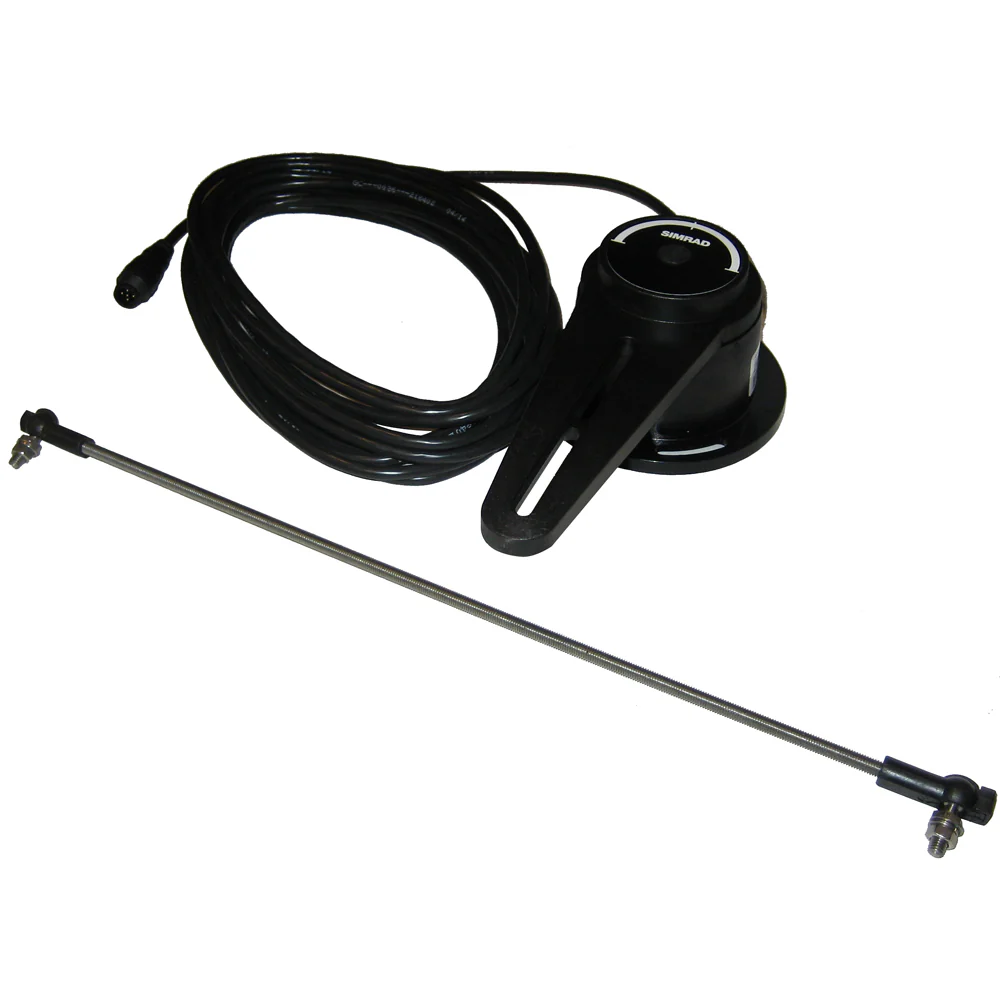

The RF25 is a medium duty rudder feedback unit with Micro-C interface. The RF25 will attach directly to industry standard Micro-C systems for straight-forward installation.

Features:

  • +/- 120° Measurement
  • Precise and Accurate; +/- 0.5°
  • Micro-C Connectivity
  • 5.5M attached Micro-C Cable

Product Specifications

Simrad RF25N Rudder Feedback w/Link & Micro-C Cable - 5M [000-10756-001] Product Specifications

Specifications:

Physical

  • Compass Safe: 0.5 m (19.7")

  • Dimensions (W x H x D): 99 x 65 x 177 mm (3.90 x 2.56 x 6.97")

  • Mounting Type: Horizontal, Vertical, Upside-down

  • Weight: 0.5 kg (1.1 lbs)

Electrical

  • Power Consumption (Max): 40 mA (from CAN)

  • Power Consumption (Typical): 40 mA (from CAN)

  • Supply Voltage: 12–16 V via CAN

Environment

  • Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)

  • Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

  • Waterproof Rating: IPx6

Connectivity

  • N2K PGNs: 127245

  • NMEA 2000 Connectivity: 1 x CAN Micro-C port, 1 LEN

Other

  • Warranty Period: 2 years

  • Type: Parts

  • Box Dimensions: 3"H x 4"W x 15"L

  • Weight (Boxed): 1.65 lbs

  • UPC: 9420024118306

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A
