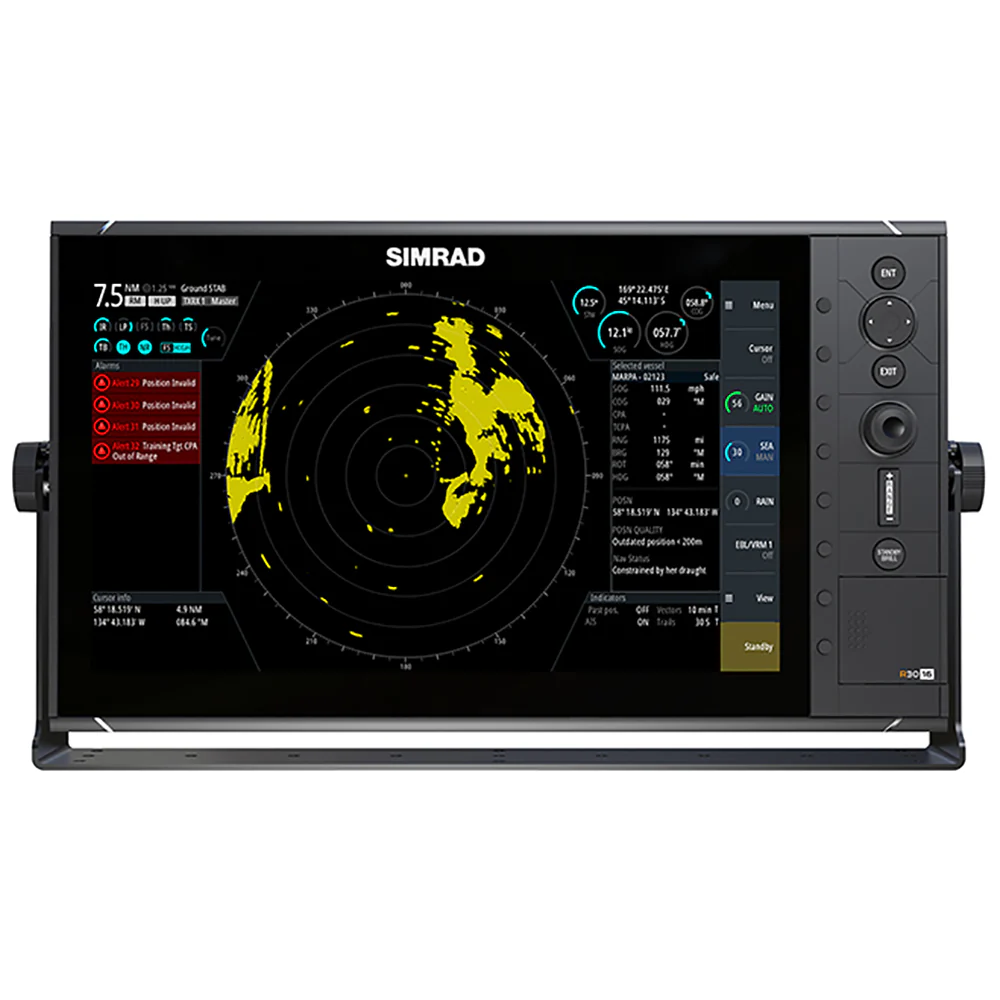

Simrad R3016 Radar Control Unit Display - 16" [000-12188-001]

Simrad R3016 Radar Control Unit Display - 16" [000-12188-001]

Simrad R3016 Radar Control Unit Display - 16" [000-12188-001]

Description

The Simrad R3016 is a dedicated radar control unit with integrated 16-inch widescreen display, compatible with a range of Simrad radar solutions including Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar. An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R3016 offers versatile flush or bracket-mount installation options and intuitive keypad based operation for reliable control in all conditions.

Features:

  • Dedicated radar control unit
  • Compatible with Simrad Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar systems
  • Automatic tuning system
  • Anti-sea-clutter technology for an optimum picture under adverse weather conditions
  • MARPA target tracking
  • 16-inch HD widescreen display
  • HDMI output for an optional secondary display or remotely-operated "clone" station
  • Keypad and rotary-dial interface with 8 direct-access menu keys
  • Bracket and flush-mount installation options
  • Ethernet, NMEA0183 & NMEA2000 connectivity

Product Specifications

Simrad R3016 Radar Control Unit Display - 16" [000-12188-001] Product Specifications

Specifications:

Physical

  • Dimensions: 340 x 100 x 250 mm excluding connectors (378 mm D including connectors) / 13.4 x 3.9 x 9.8 in excluding connectors (14.8 in including connectors)

  • Mounting Type: Bulkhead

  • Weight: 4.7 kg (10.4 lbs)

  • Box Dimensions: 9"H x 14"W x 22"L

  • Shipping Weight: 18.5 lbs

Display

  • Screen Size: 16"

  • Resolution (VxH): 1366 x 768

Electrical

  • Supply Voltage: 12 or 24 V DC (10.4–31.2 V)

  • Power Consumption: Max 85 W, Typical 23 W

  • Recommended Fuse Rating: 5A

Environment

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)

  • Humidity: Up to 95% at 35°C (95°F) non-condensing

  • Shock & Vibration: According to IEC 60945

  • Waterproof Rating: IPX5

Connectivity

  • Ethernet Ports: 1 x 100 Mbps

  • NMEA 2000 PGNs: None

Radar

  • Output Power: Up to 3 kW depending on transducer

Interface

  • Ethernet: 1 x 100 Mbps

Approvals

  • EMC Directive 2014/30/EU

Warranty

  • 2 Years

Additional

  • Product Manual included

Product Manual

R2009 / R3016 User Manual (en-us)

R2009 / R3016 Quick Guide (en-us)

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$3,885.99
