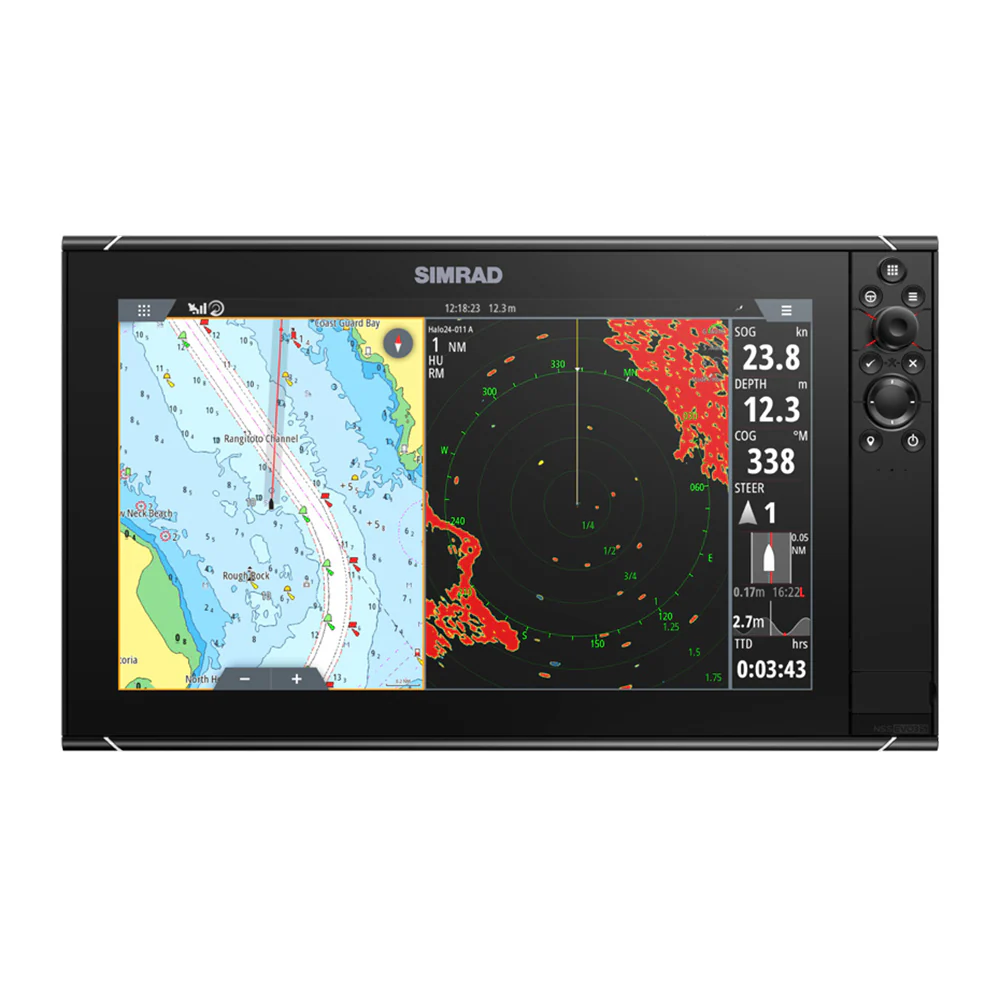

Simrad NSS16 evo3S Chartplotter/Fishfinder MFD [000-15404-001]

Simrad NSS16 evo3S Chartplotter/Fishfinder MFD [000-15404-001]

Simrad NSS16 evo3S Chartplotter/Fishfinder MFD [000-15404-001]

Description

Improved Charting experience with the iMX8 processor

With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.

SolarMAX™ IPS displays for high-definition views

Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI improvements

  • A dark-themed wallpaper for less light pollution from a dash of multiple screens.
  • The Audio side bar can now expand into a full page view.
  • The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
  • The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.

The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.

Radar Options

HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S™.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.

Fast & Simple Networkingand Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

In The Box:

  • Display Unit
  • Bezel Trim
  • Documentation pack
  • Power cable kit
  • Panel mounting kit

Connections:

  • Ethernet - 2x Ethernet network
  • Power - power, power control, and external alarm
  • Video- composite video and NMEA0183
  • NMEA 2000 - NMEA 2000 data
  • Sonar CH1
  • Sonar CH2
  • HDMI - HDMI video output
  • USB connector - mouse, keyboard or mass storage

Product Specifications

Simrad NSS16 evo3S Chartplotter/Fishfinder MFD [000-15404-001] Product Specifications

Display

  • Backlight Color: White/Red

  • Display Resolution: 1920 x 1080

  • Screen Brightness: 1200 nits

  • Viewing Angles: 80° top/bottom, 80° left/right

Physical

  • Compass Safe Distance: 50 cm (1.7 ft)

  • Dimensions (W x H x D): 437 x 256 x 98 mm (17.19 x 10.08 x 3.82")

  • With bracket: 462 x 264 x 122 mm (18.19 x 10.39 x 4.80")

  • Mounting Type: Bracket (accessory part number 000-13760-001) or panel mount

  • Weight: 4.65 kg (10.25 lbs)

Electrical

  • Power Consumption Max: 40 W

  • Recommended Fuse Rating: 7.5 A

  • Supply Voltage: 10–31.2 V DC

Environment

  • Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)

  • Operating Temperature Range: -15°C to +55°C (5° F to 131° F)

  • Shock/Vibration: 100,000 cycles of 20 G

  • Storage Temperature Range: -20°C to +60°C (4°F to 140°F)

  • Waterproof Rating: IPX6 and 7

Connectivity

  • Bluetooth: Internal

  • Ethernet Ports: 2 x 5 pin yellow connectors, 10/100 Mbit

  • Wi-Fi: Internal

  • NMEA 0183 Sentences Supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM

  • NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN

  • PC Connectivity: No

  • SD Card Storage: 2 x MicroSD slots, max 32 GB each (larger if formatted to NTFS)

  • Video: 2 x composite (RCA) video inputs, optional cable required; HDMI output

MFD

  • AIS: Receive AIS data over NMEA 2000 or NMEA 0183

  • Autopilot: Full auto pilot control and commissioning

  • Cartography: C-MAP included

  • Digital Switching: C-Zone, Naviop

  • GPS: Built-in 10 Hz GNSS receiver, supports GPS, GLONASS, Galileo, Beidou, QZSS, SBAS (WAAS, EGNOS, MSAS, GAGAN)

  • Internal Storage: 16 GB

  • Multimedia: via SonicHub2, FusionLink, *Sirius, **JL Audio (*USA only, **AUST./NZ only)

  • Sonar Compatibility: Two 9-pin Xsonic ports; Port 1: CHIRP 50/200 kHz, HDI. Port 2: CHIRP 50/200 kHz, TotalScan, LSS HD, ForwardScan. Compatible with SonarHub, BSM-3, BSM-2, network echo sounders

  • Waypoints, Routes, Tracks: 6,000 waypoints, 500 routes (max 100 points per route), 50 tracks (up to 12,000 points)

  • Weather: SiriusXM via WM-3 / WM-4 (USA only), GRIB

GPS

  • Corrections: WAAS, MSAS, EGNOS, GLONASS, Galileo, Beidou, QZSS, SBAS

  • GPS Receiver Channels: 34

  • Position Accuracy: Horizontal 3 m (9.8 ft)

  • Time to First Fix: Cold start 50 sec; Satellite reacquisition 5 sec

  • Update Rate: 10 Hz

Autopilot

  • Maneuvers / Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

  • Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV (*Boat type set to Sail)

Approvals

  • Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.2

Other

  • Interface: Full touch screen (multi-touch), full keypad control, OP50 remote controllers, USB mouse

  • Languages: Standard: English (US/UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish; Unlockable: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi

  • Warranty Period: 2 years

  • Transducer Included: No

  • Screen Size: 9"

  • Resolution (V x H): 1280 x 720

  • Range – Max (Miles): 36 nm

  • Cartography Brand: Navionics/C-Map/Lowrance

  • Array Size (Inches): 20"

  • Touchscreen: Yes


Product Manual

Quick Guide (pdf)

Owner's Manual (pdf)

Brochure (pdf)

Product Warranty

Simrad Warranty

Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.

Product FAQ's

N/A
